Electronics Setup Guide - Wheeled vehicles

If you have little or no experience with RC electronics, here is a simple guide to help you with the wiring and setup.

Required Components

You will need:

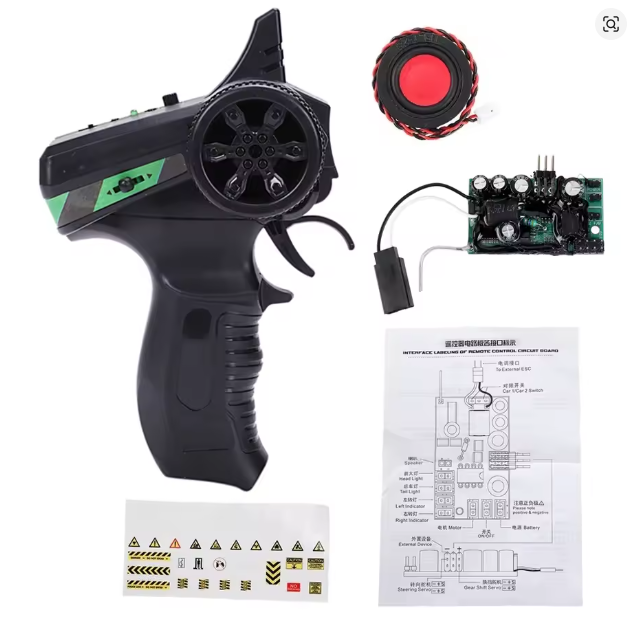

R.E.S. V3 transmitter, receiver and speaker by WPL (commonly available on AliExpress and from local RC hobby stores)

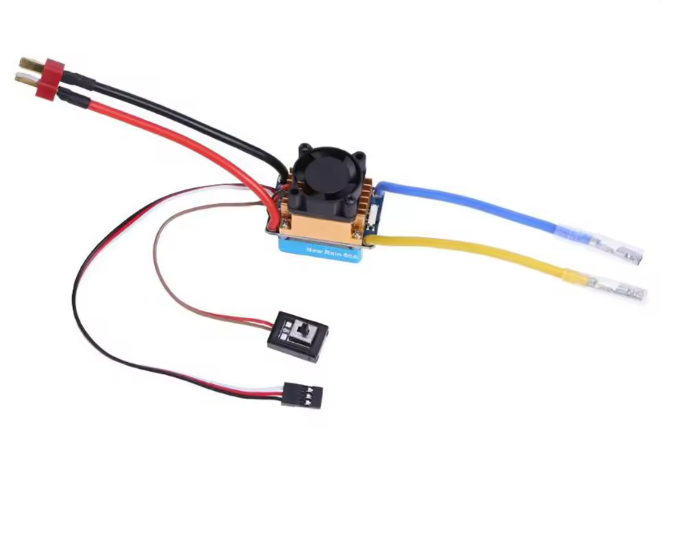

ESC for brushed motors (I personally use a 3S 60A ESC)
Small slide switch
LED lights: Red LEDs for rear lights, Orange LEDs for turn signals, Warm white LEDs for front lights
2x JST-SH cables
4x 2-pin DuPont cables
Soldering iron
Wires

Basic Wiring

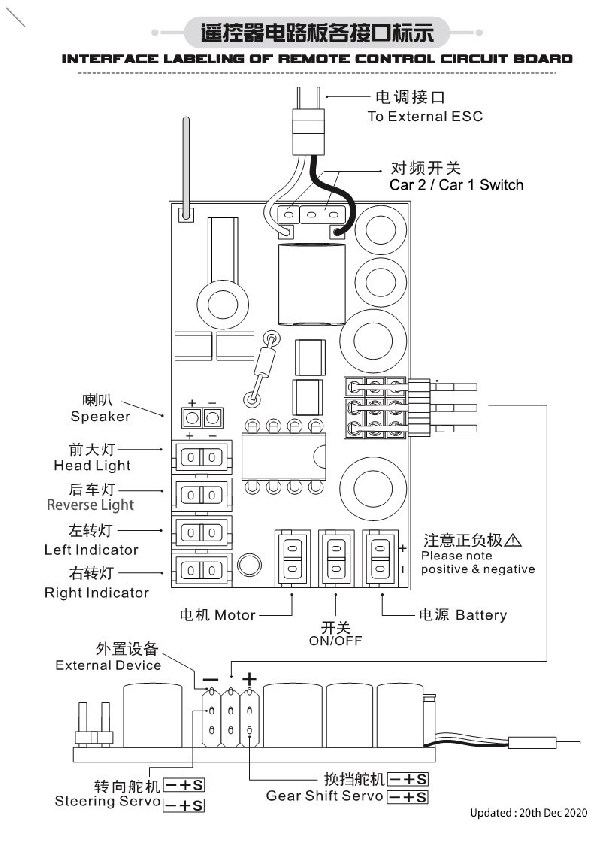

Connect the first JST-SH cable to the Battery connector on the receiver board according to the wiring diagram.

Connect it to the same battery that will also power the ESC.

⚠️ Be careful with polarity!

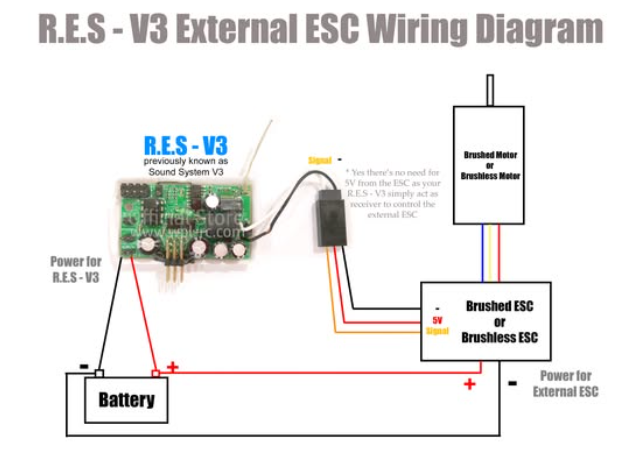

Connect the “To External ESC” connector from the receiver board to the ESC.

Connect the second JST-SH cable to the ON/OFF connector and attach a small slide switch to it.

Connect the speaker according to the wiring diagram.

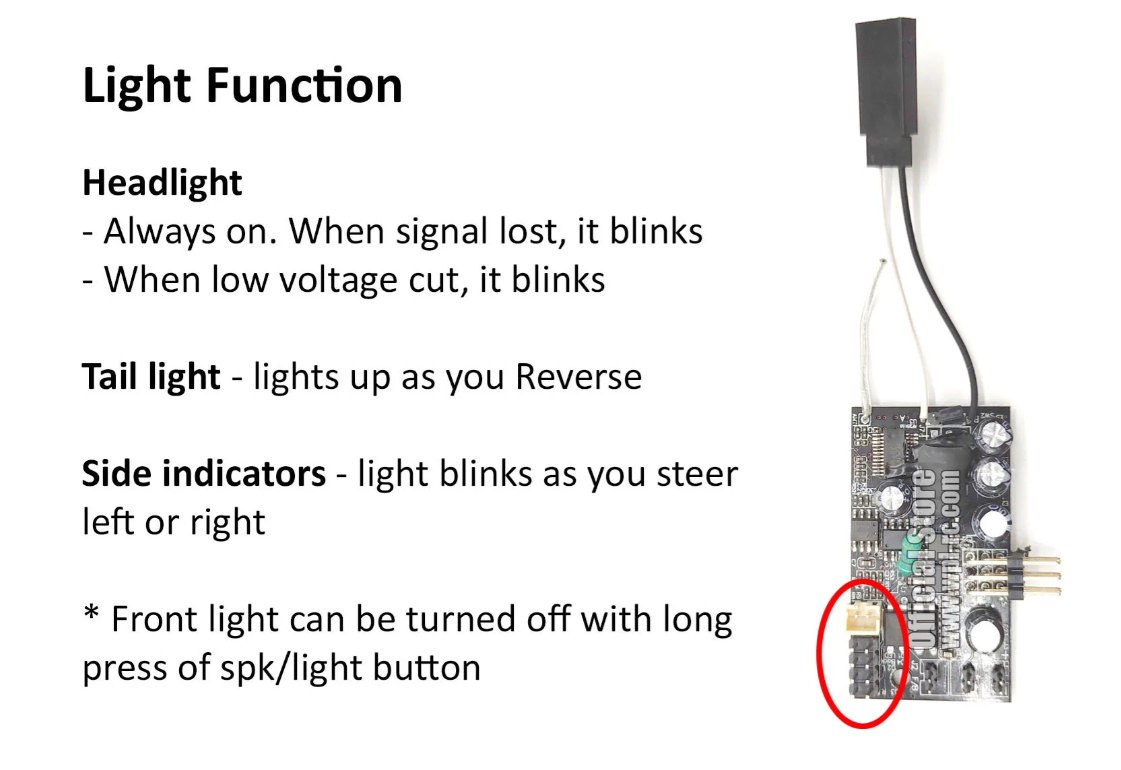

Connect the LED lights using the DuPont cables according to the diagram.

Connect the steering servo according to the diagram.

Leave the “Motor” connector on the receiver board empty.

This output is designed only for small motors.

For larger 1/10 scale models it is too weak and may damage or burn the receiver board.

This is why an external ESC is required.

Winch / Rotating Turret Setup

If your model uses a winch or a rotating turret, the setup is slightly more advanced.

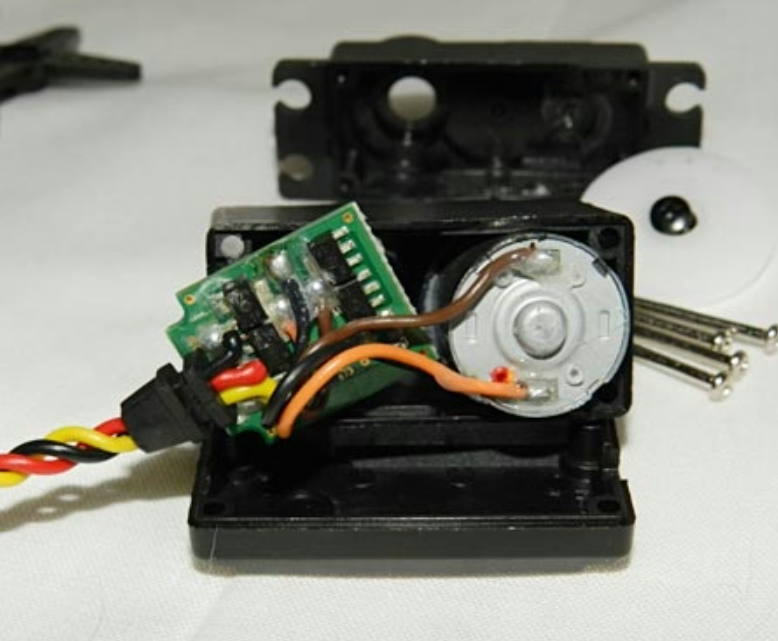

Take a 360° servo and remove the screws on the bottom cover. Carefully remove only the bottom cover.

⚠️ Be careful — the top cover may come loose easily as well.

Disconnect the motor wires and the wires connected to the internal control board. Remove the entire electronics board from the servo.

Next, take the original power wires and connect the positive (+) and negative (-) wires directly to the motor terminals.

Reassemble the servo.

Install the modified servo into the correct position for the winch or rotating turret and connect the servo power wires to the “External Device” output on the receiver.

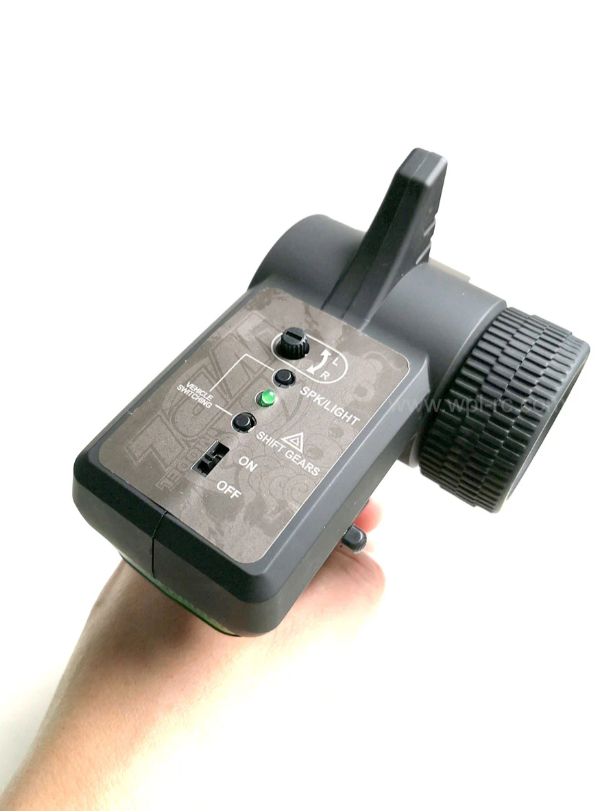

The rotation is then controlled using the side lever on the transmitter.

BRDM-2 Additional Function

For the BRDM-2 model, connect the auxiliary wheel lift mechanism servo to the “Gear Shift Servo” output.

Final Check

Carefully double-check all wiring before powering the model.

Once connected correctly:

The R.E.S. receiver handles:

lights
sound
steering servo control
throttle signal

The ESC handles:

supplying power to the drive motor
