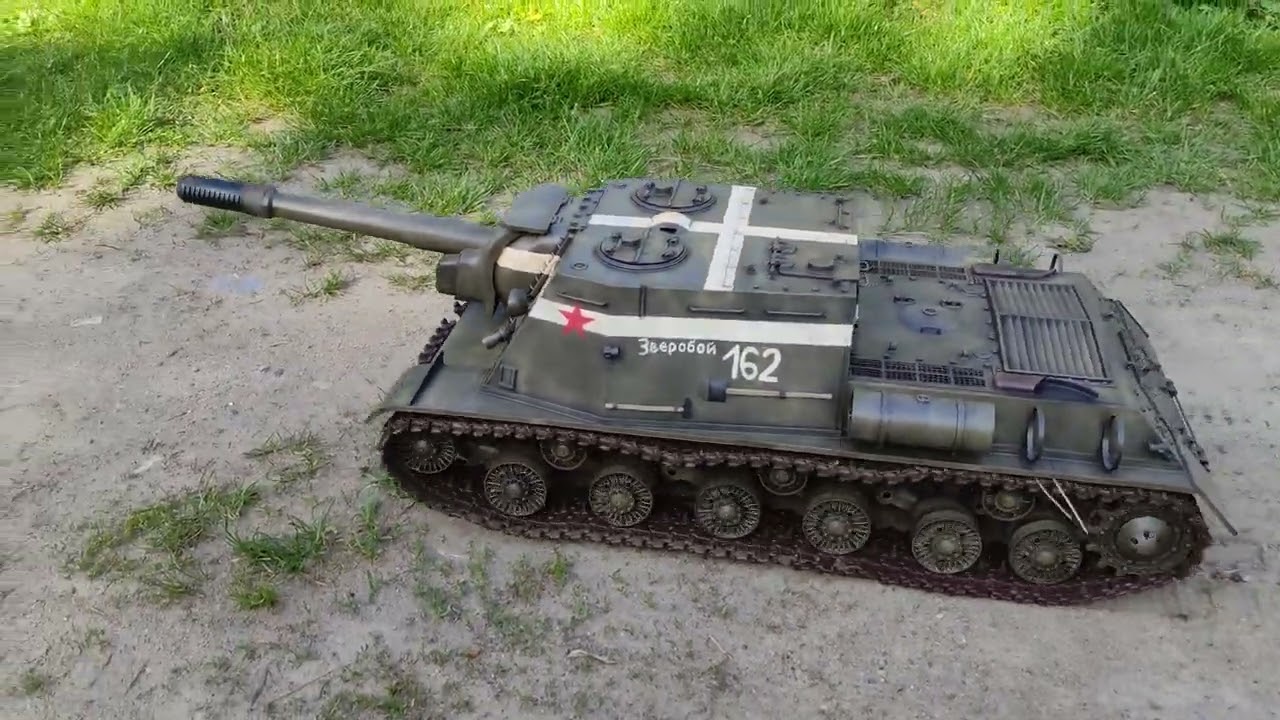

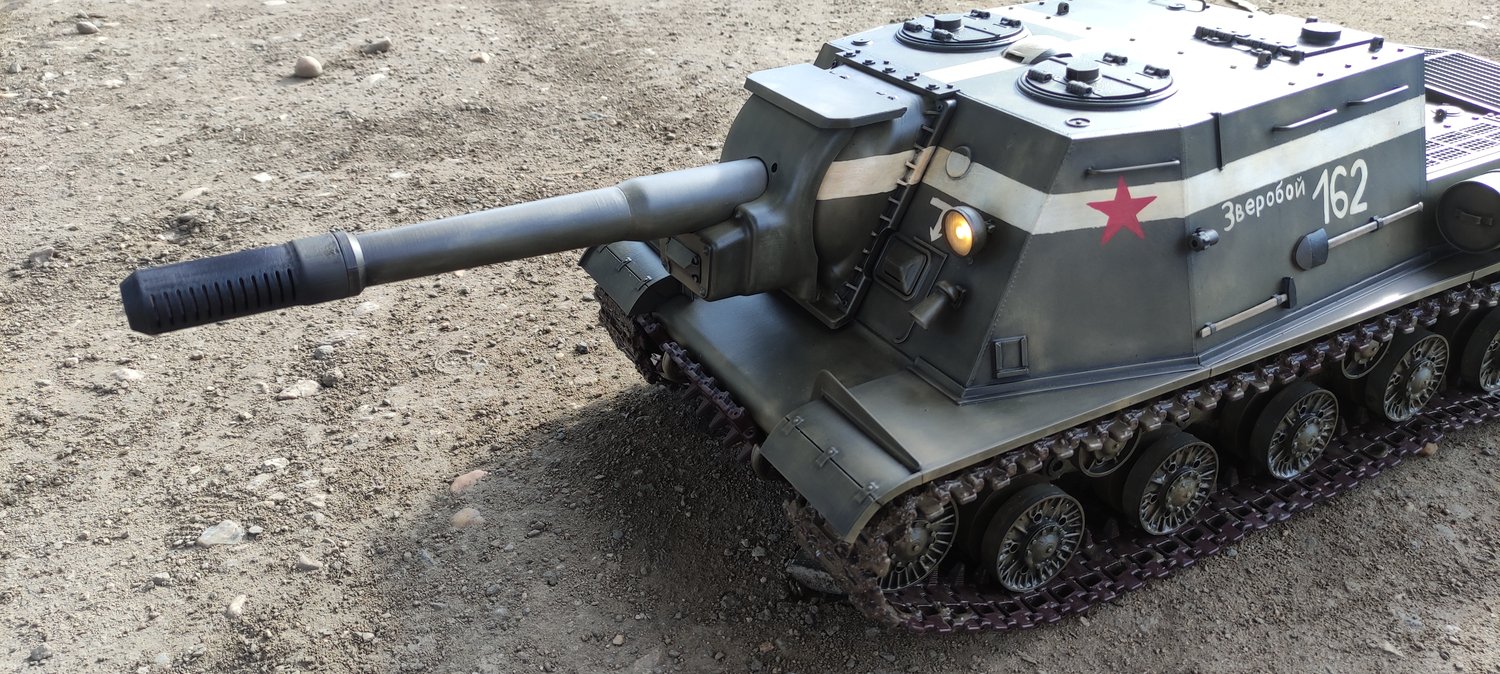

1/10 ISU-152 HEAVY SELF PROPELLED GUN RC MODEL
Fully 3D printable soviet ISU-152 heavy self-propelled gun in scale 1/10.
The ISU-152 (Russian: Самоходная установка на базе танка ИС с орудием калибра 152мм, ИСУ-152, Samokhodnaya Ustanovka na baze tanka IS s orudiyem kalibra 152mm, meaning "IS tank based self-propelled installation with 152mm caliber gun") is a Soviet heavy self-propelled gun developed and used during World War II. It was unofficially nicknamed "Zveroboy" (Russian: Зверобой; "beast killer") in response to several large German tanks and guns coming into service, including Tigers and Panthers. The massive superstructure contained devastating 152mm ML-20 gun-howitzer capable of destroying even the most armoured german tanks or fortifications per single shot. Therefore, it was used as mobile artillery to support infantry and armor attacks. It continued service into the 1970s and was used in several campaigns and countries.
Lenght: 937mm
Width: 345mm
Height: 250mm
Weight: approx 8 kg

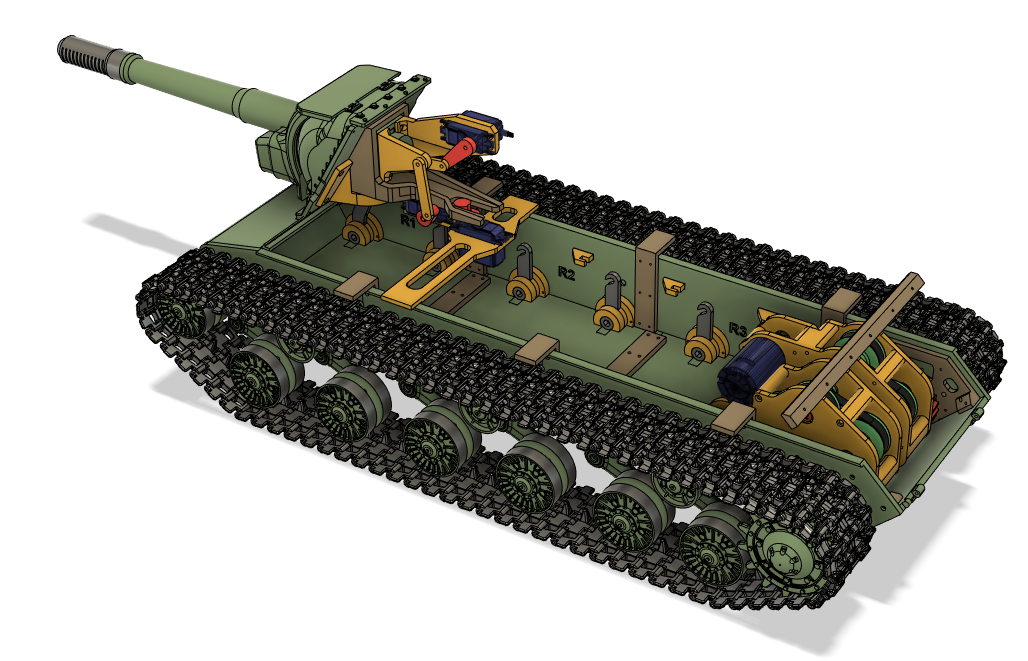

Functional suspension.
Functional traverse.
Functional gun elevation.
Functional barrel recoil.
Adjustable track tension
Functional Headlight.
Printed tracks.
Printed transmissions.

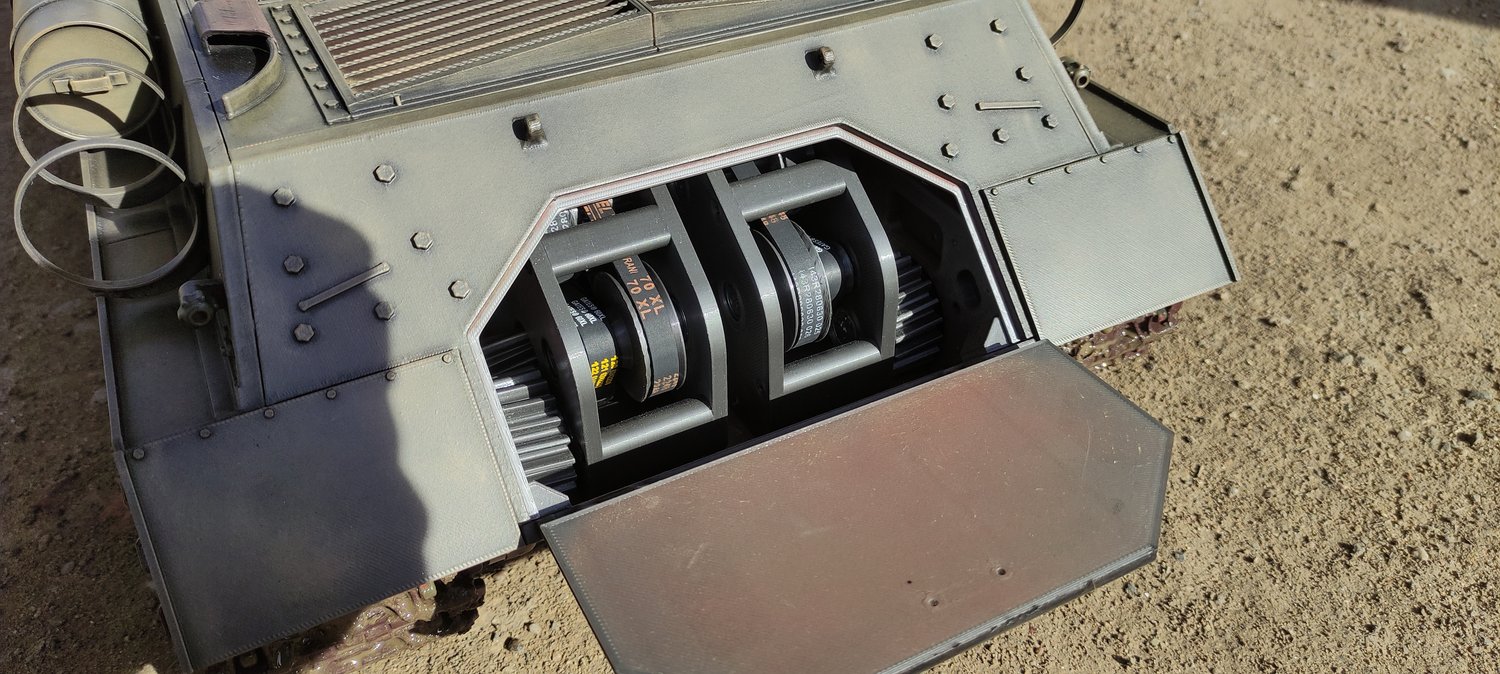

Easy access to the transmissions for maintenance.
The vehicle can be equipped with various electronics and functions.
It is up to you how much you would like to use all the options.
The model contains everything what you need to print and build the vehicle:
STL files for every printed part, assembly guide and shopping list (screws, motors, servos....)
Shopping list:
Screw M3x10 – 186x
• Screw M2x8 – 62x
• Screw M2x10 – 36x
• Nut M3 – 18x
• Screw M3x45 – 12x
• Screw M3x40 – 2x
• Screw M3x8 – 4x
• Socket set screw M3x4 – 4x
• Motor 540 – 2x
• Rubber band – 12x
• Bearing 10x15x4 – 30x
• Bearing 15x21x4 – 32x
• Steel rod 2mm (e.g. welding rod for autogenous welding) – 6m, alternatively you can use pieces of filament
• Standard servo 180° or 360° (for gun elevation) - 1x
• Standard servo 180° or 360° (for gun traverse) - 1x
• Standard servo 180° (for gun recoil) – 1x
• Belt 70XL 7,88mm – 6x
• Belt 60XL 9,4mm – 2x
• Glue
Whole model is designed for FDM printers only.
If you have any questions please do not hesitate to send me an email.
I have spent a lot of time developing this model.
Please, dont share this STLs, it will affect my next releases.
Thank you very much.
3D printing settings
Recommended bed size: 220x200mm
Nozzle size: 0,4mm
Layer height: 0,2mm
Infill: 40%
Perimeters: 3
Material: PLA
Material for gears and shafts: PC/PET-G
Most parts do not require supports. Parts that do need them have „support“ in the name.
