1/10 SU-76M Self propelled gun RC MODEL

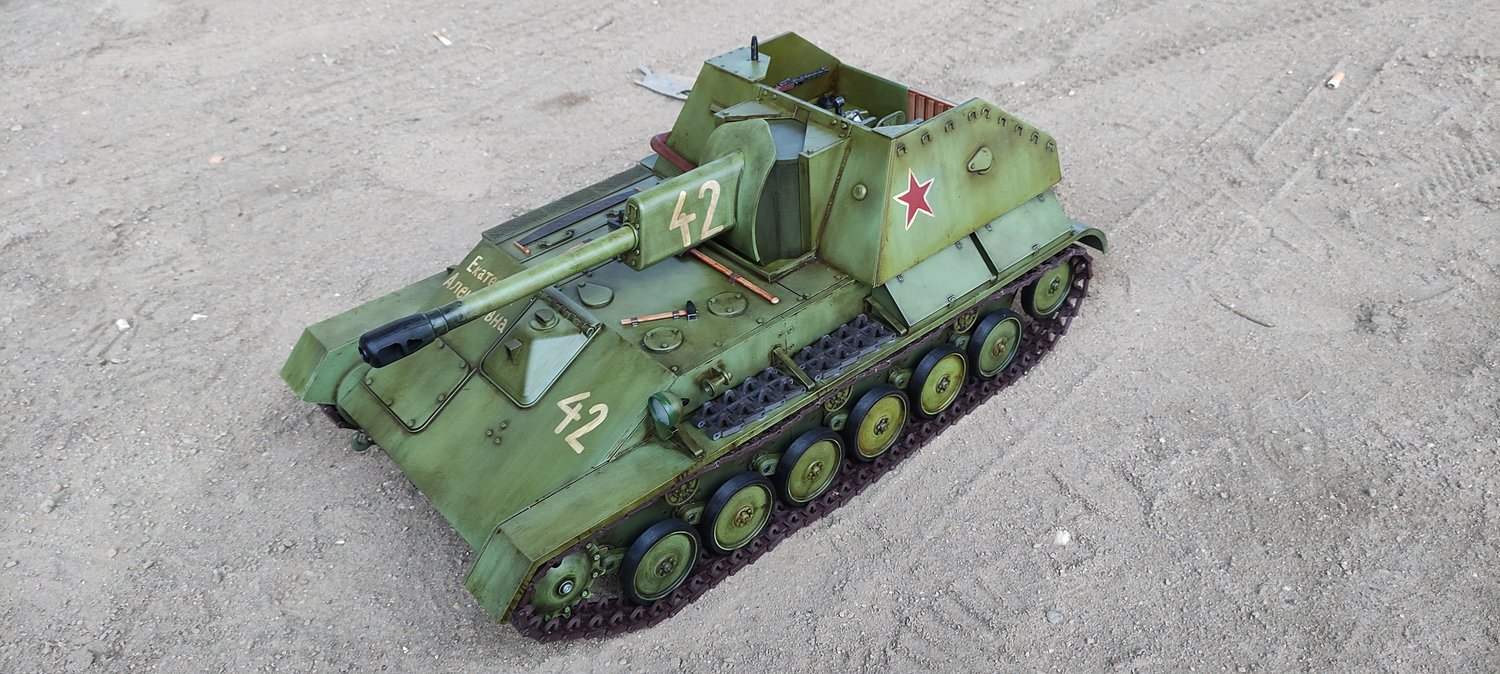

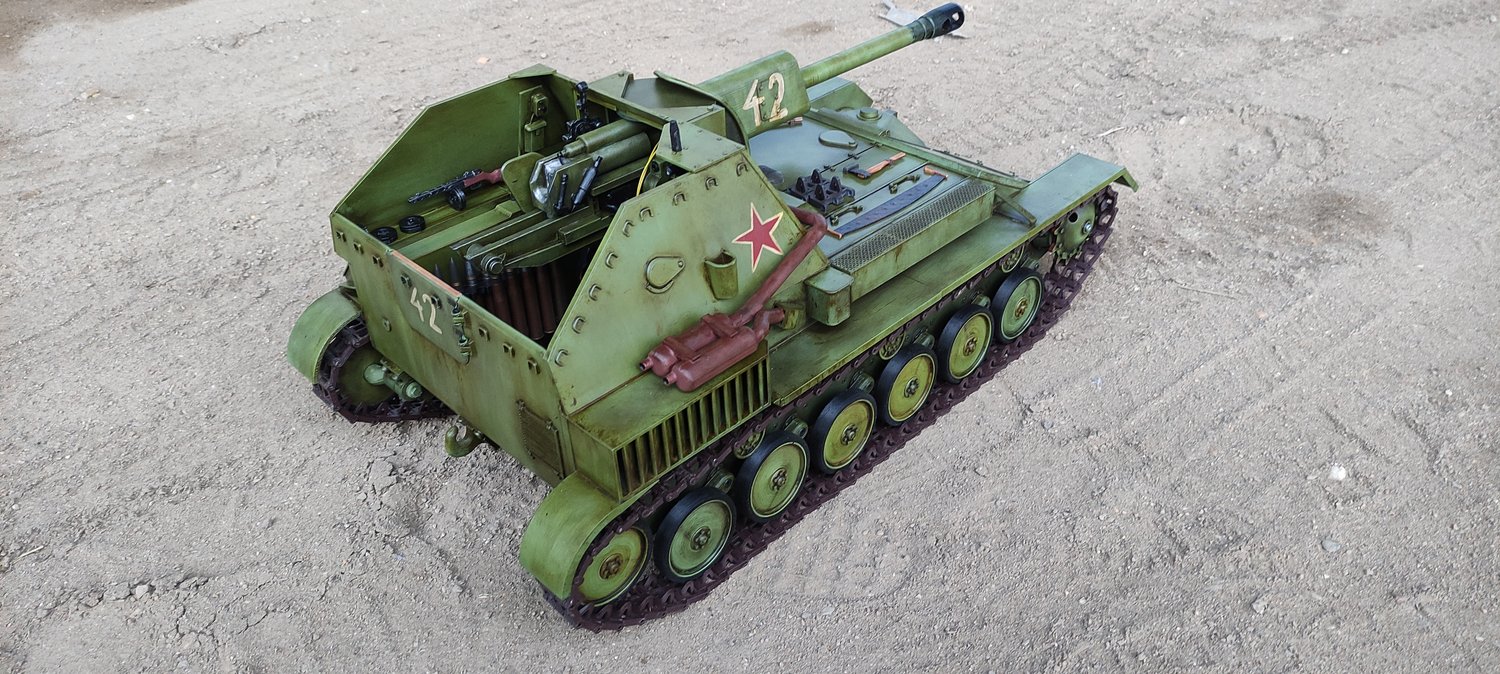

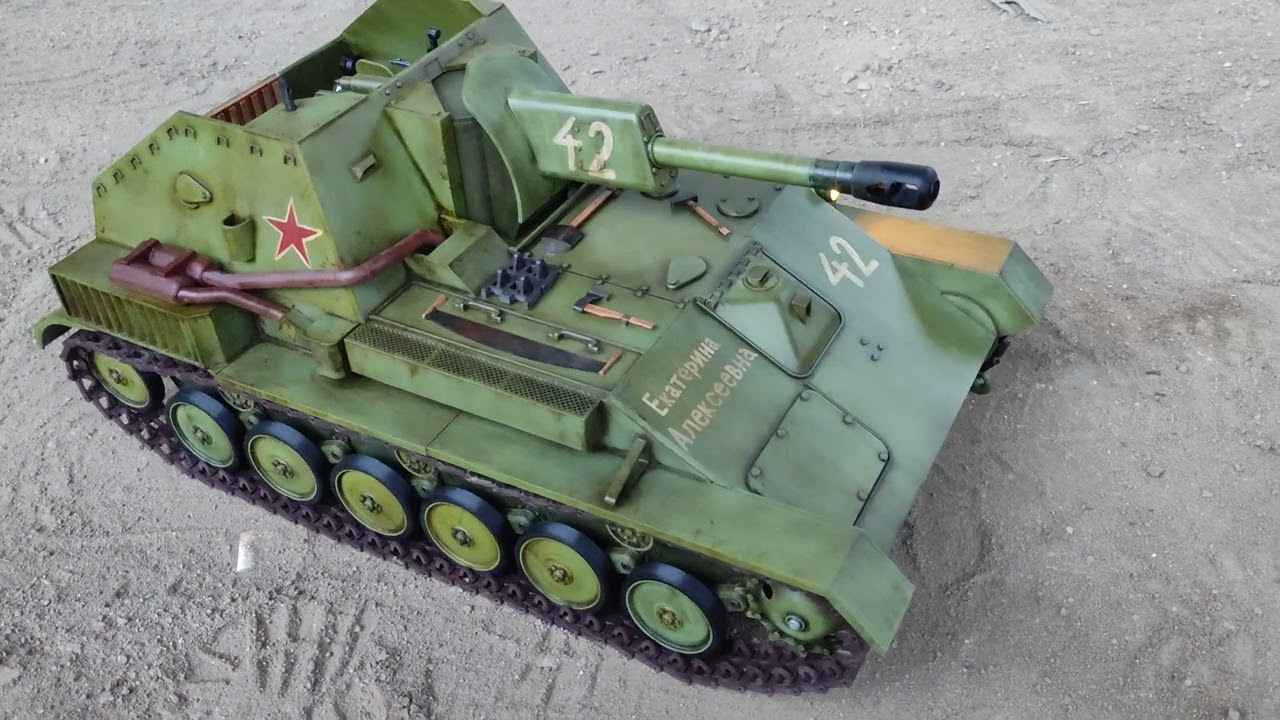

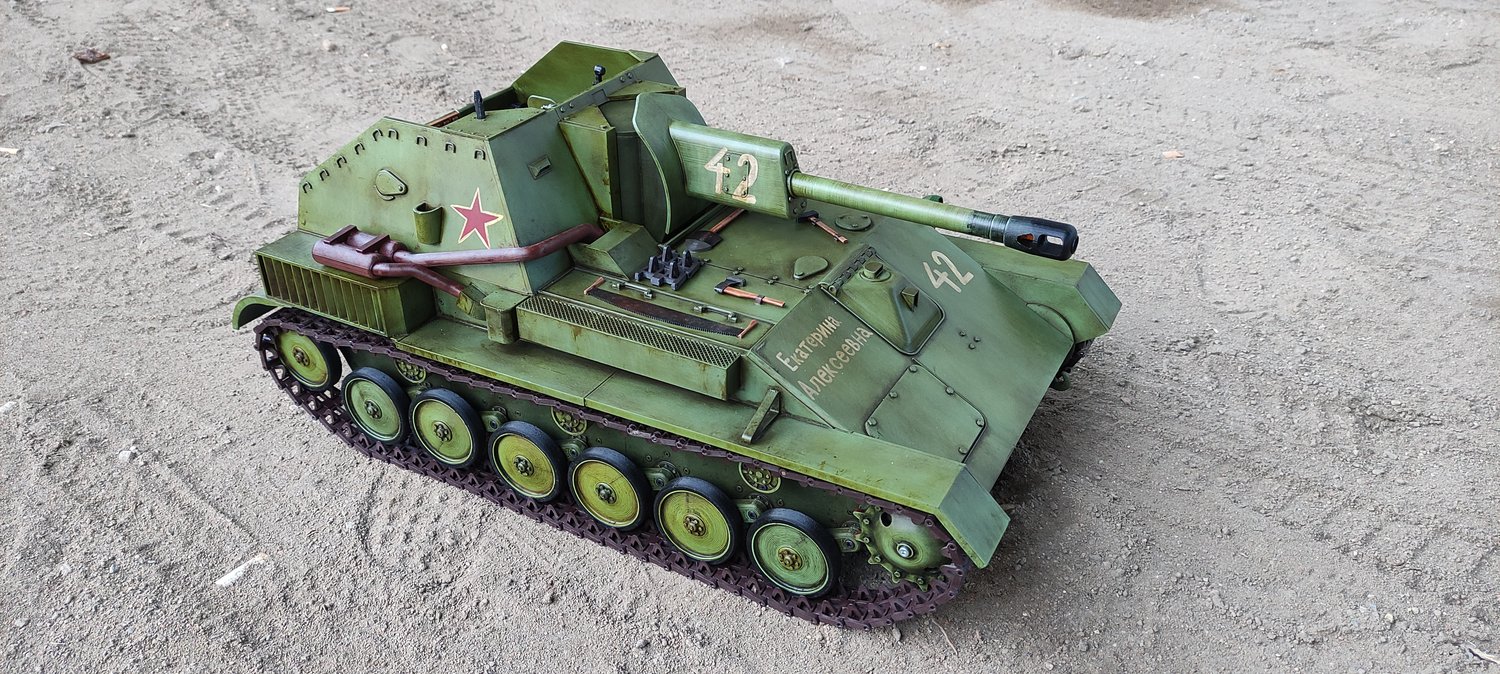

Fully 3D printable soviet SU-76M self propelled gun in scale 1/10
The SU-76 (Samokhodnaya Ustanovka 76) was a Soviet light self-propelled gun used during and after World War II. The SU-76 was based on a lengthened version of the T-70 light tank chassis and armed with the ZIS-3 mod. 1942 76,2mm divisional field gun. Its quite simple construction and multipurpose combat role made it the second most produced Soviet armoured fighting vehicle of World War II, after the T-34 medium tank.
The first batch of SU-76s were built with a GAZ-202 automotive engine on each side of the hull, one driving each track. This arrangement proved to be a serious problem, even before the first SPGs were issued. Two chief designers at the GAZ plant, N.A. Astrov and A.A. Lipgart, changed the power-plant arrangement to that of the T-70M light tank - the two engines GAZ-202 were mounted in tandem on the right hand side of the vehicle. The transmission consisted of a two-disk main clutch of dry friction, a four-speed gearbox of the ZIS-5 type, main drive, side clutches and side drives.The armoured roof over the gun compartment was removed to improve access, servicing of the weapon and ventilation. In July 1943, this improved version was adopted by the Red Army as SU-76M.
13 732 of the SU-76Ms were produced.
Lenght: 510mm
Width: 280mm
Height: 240mm
Weight: approx 3kg

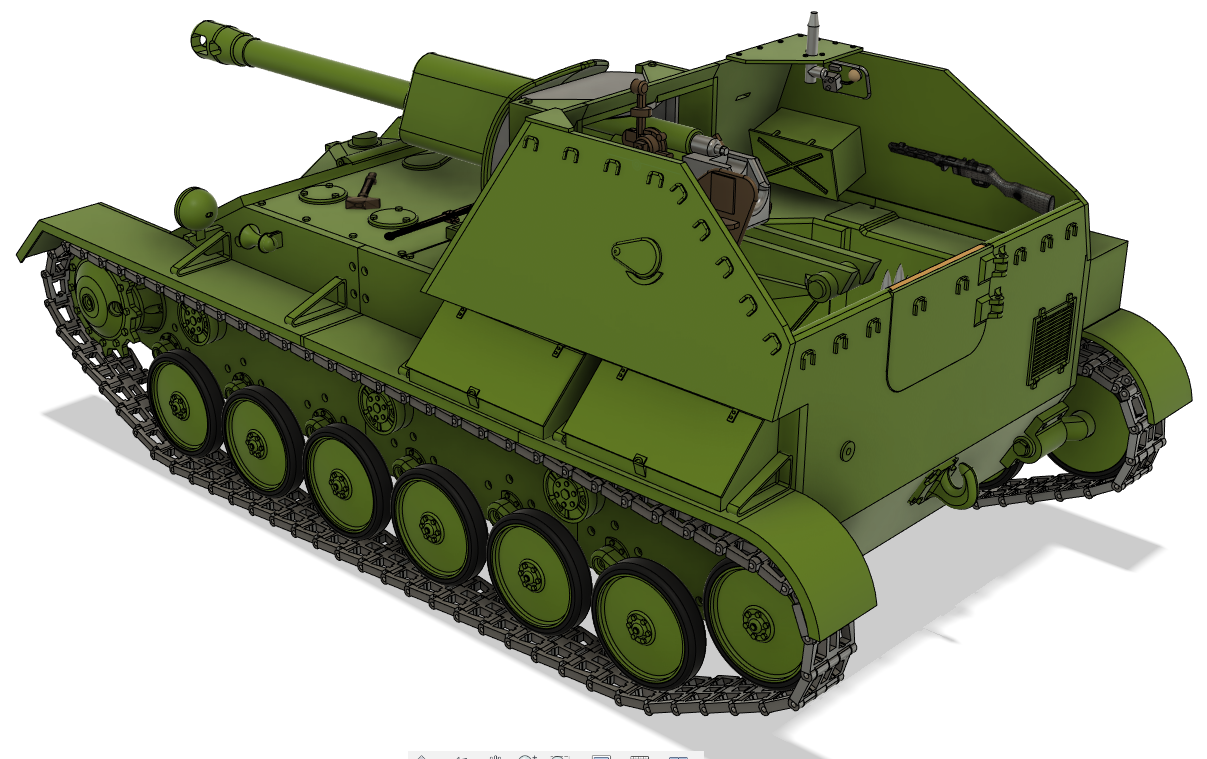

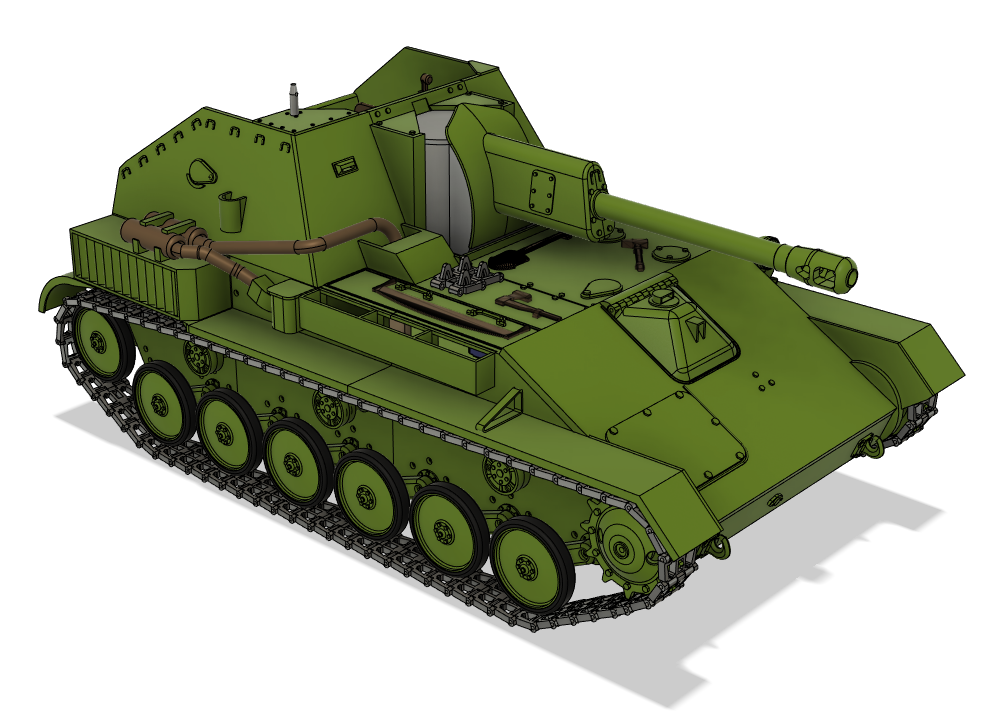

Detailed, full of functions and easy to build (print).
Functional suspension.

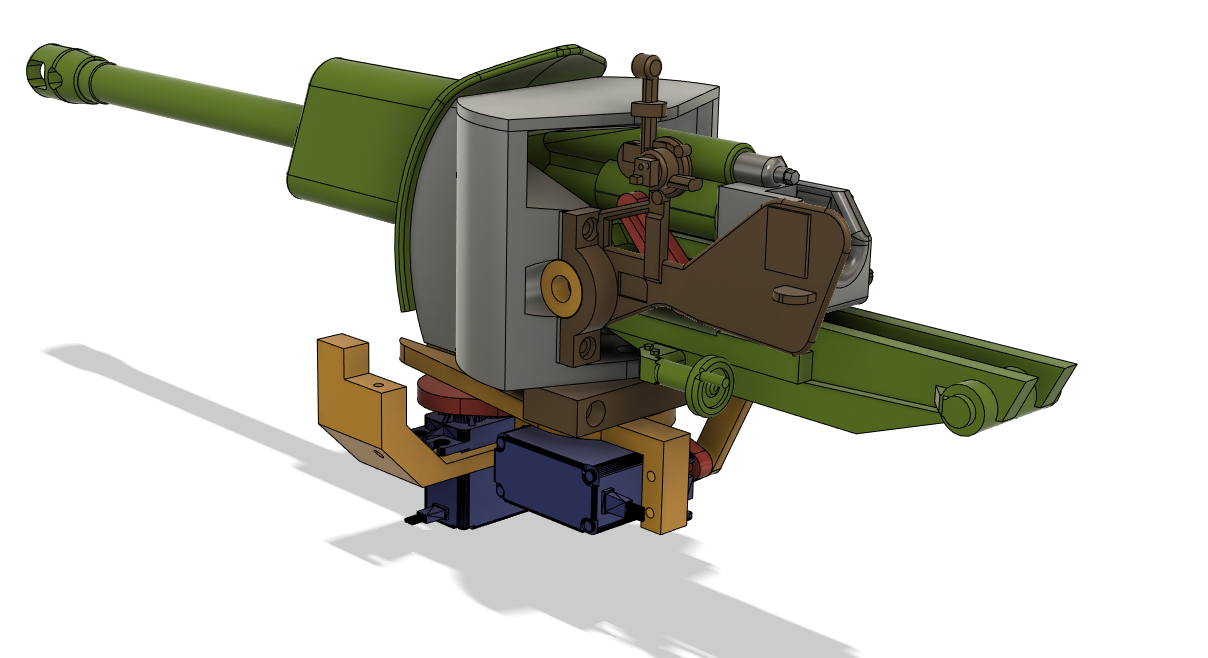

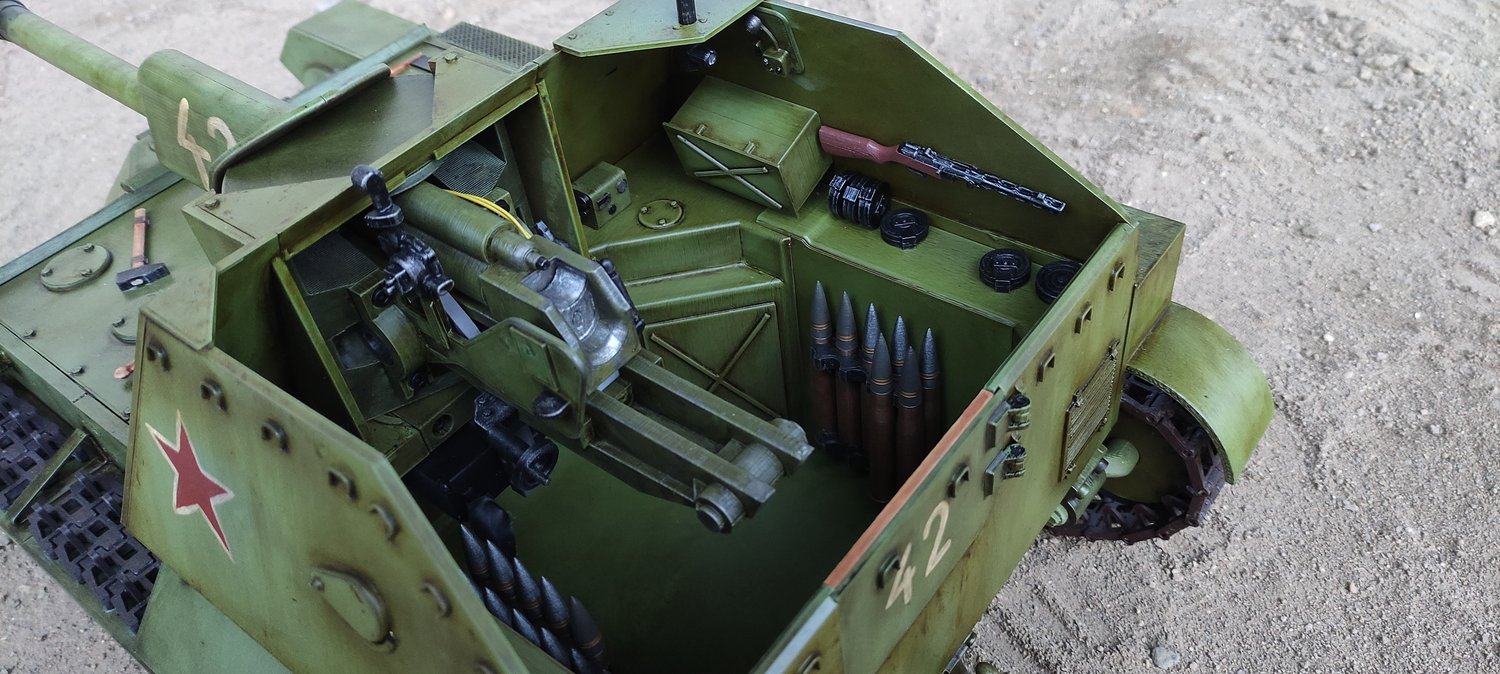

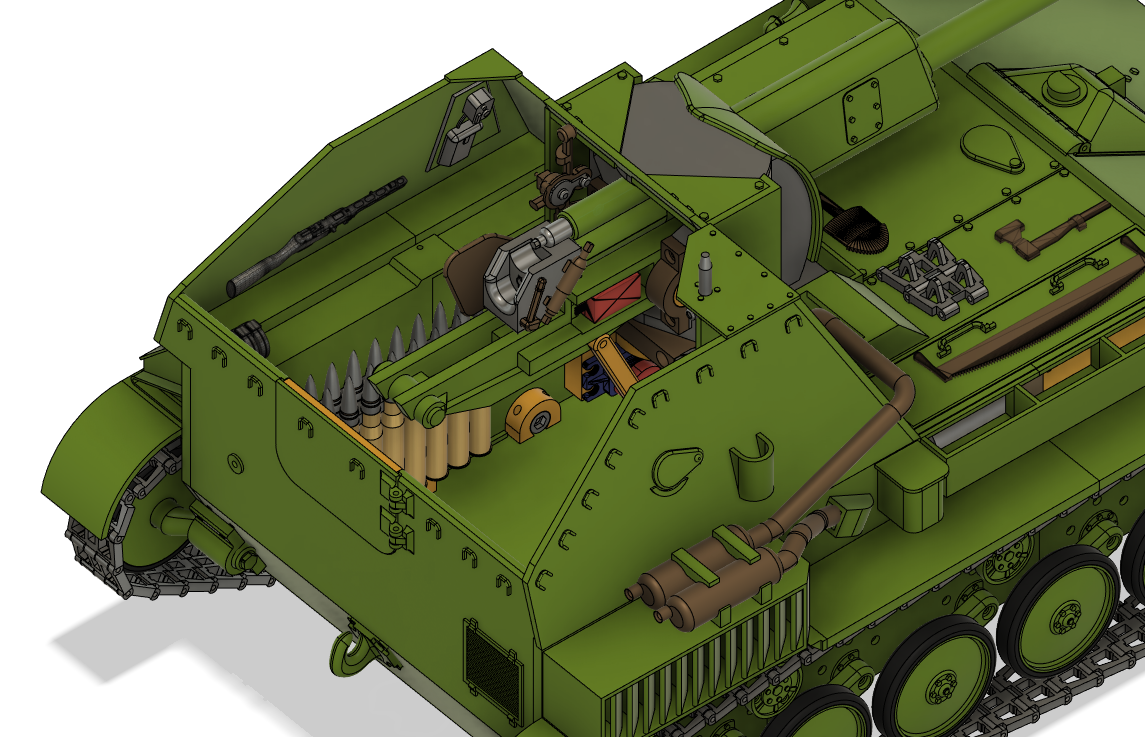

Functional gun traverse.
Functional gun elevation.
Functional barrel recoil.
Adjustable track tension
Functional Headlight.
Printed tracks.
Printed transmissions.
Easy access to the transmissions for maintenance.
The vehicle can be equipped with various electronics and functions.
It is up to you how much you would like to use all the options.
Tank uses two separate transmissions for movement.
The model contains everything what you need to print and build the tank:
STL files for every printed part, assembly guide and shopping list (screws, motors, servos....)
Shopping list:
Screw M3x10 – 124x
• Screw M2x8 – 130x
• Screw M2x10 – 10x
• Nut M3 – 12x
• Screw M3x40 – 12x
• Screw M3x18 – 7x
• Screw M3x12 – 12x
• Socket set screw M3x4 – 2x
• Motor 540 – 2x
• Rubber band – 12x
• Bearing 10x15x4 – 42x
• Steel rod 2mm (e.g. welding rod for autogenous welding) – 4m
alternatively you can use pieces of filament
• Standard servo 180° (for gun elevation) - 1x
• Standard servo 180° or 360° (for gun traverse) - 1x
• Mini servo 180° (for gun recoil) – 1x
• 50mm cooling fan
• Glue
Whole model is designed for FDM printers only.
If you have any questions please do not hesitate to send me an email.
I have spent a lot of time developing this model.
Please, dont share this STLs, it will affect my next releases.
Thank you very much.
3D printing settings
Whole model is designed for FDM printers only.
Bed size: 220x200mm
Nozzle size: 0,4mm
Layer height: 0,2mm
Infill: 40%
Perimeters: 3
Material: PLA
Material for tracks: PETG
Material for wheel bandages: Flex, TPU (optional)
Most parts do not require supports. Parts that do need them have „support“ in the name.
