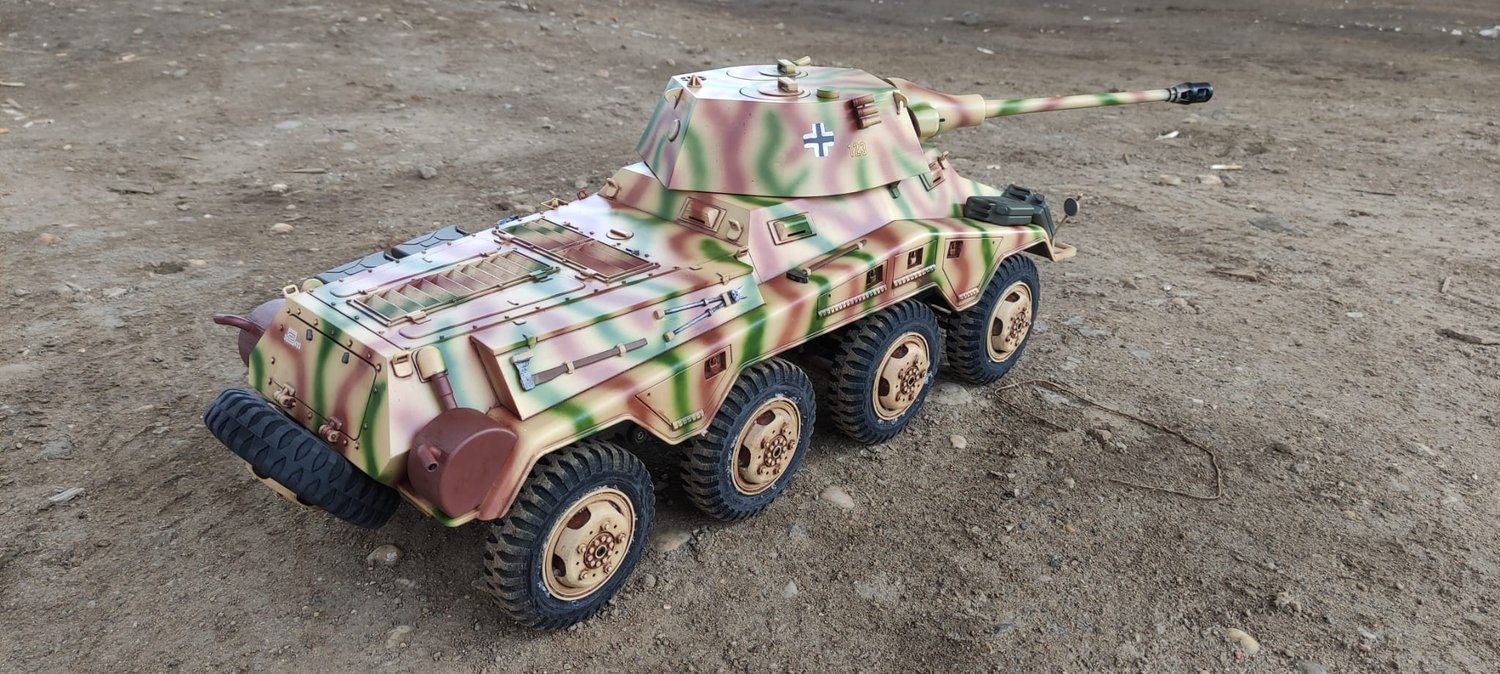

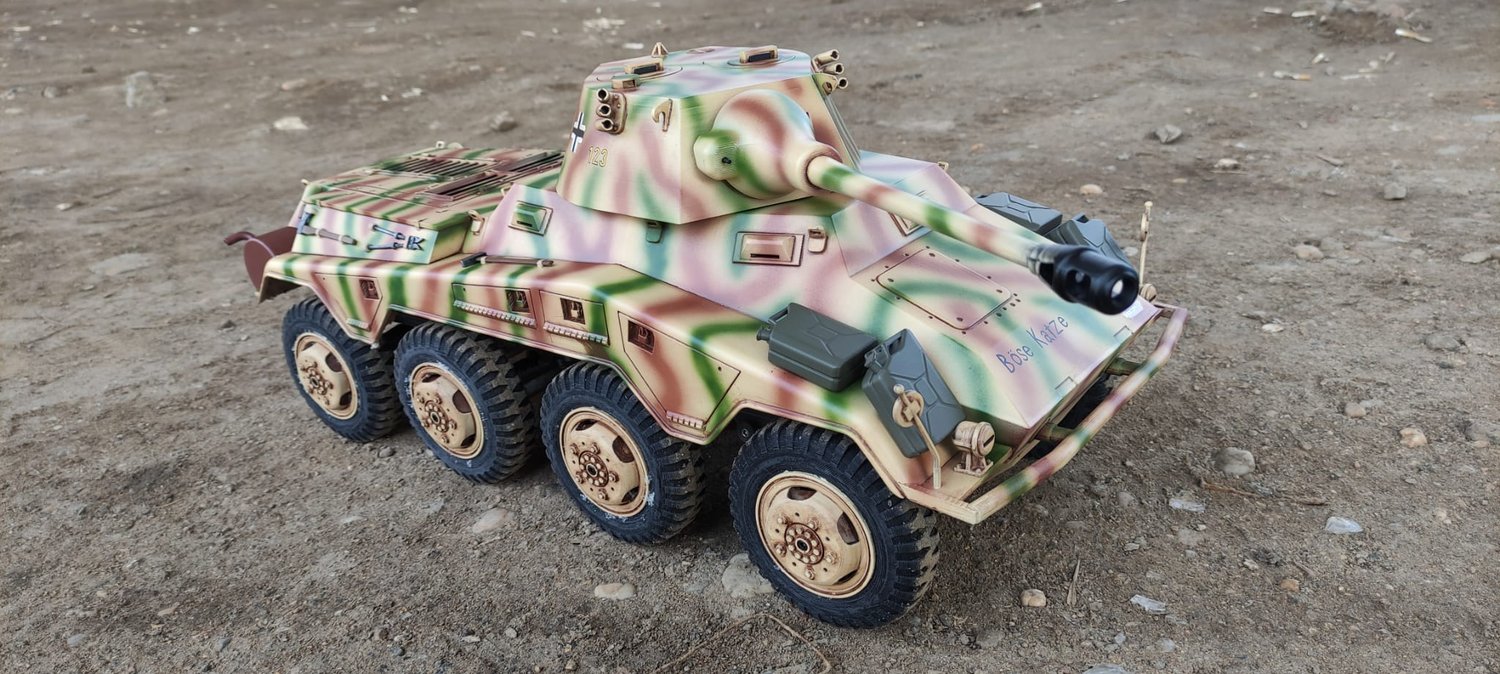

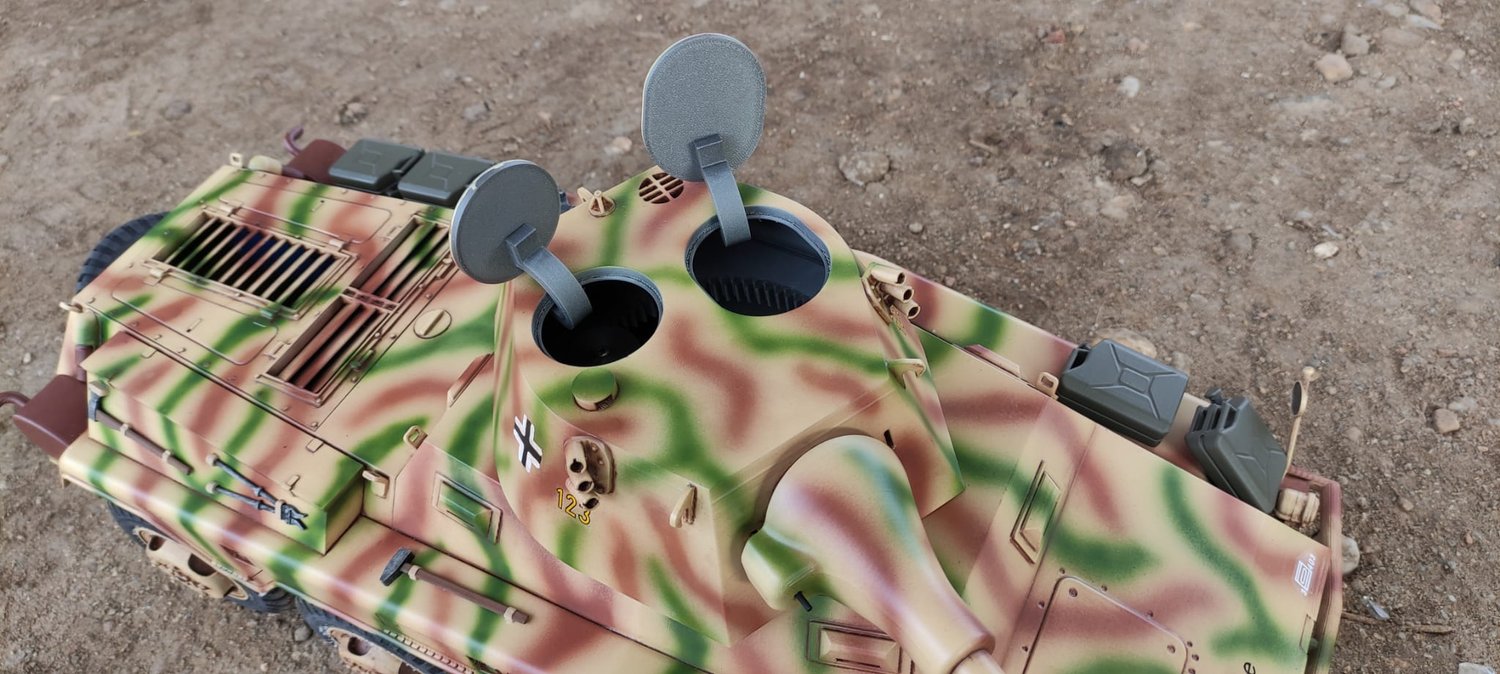

1/10 SdKfz 234 Puma heavy reconnaissance vehicle RC MODEL

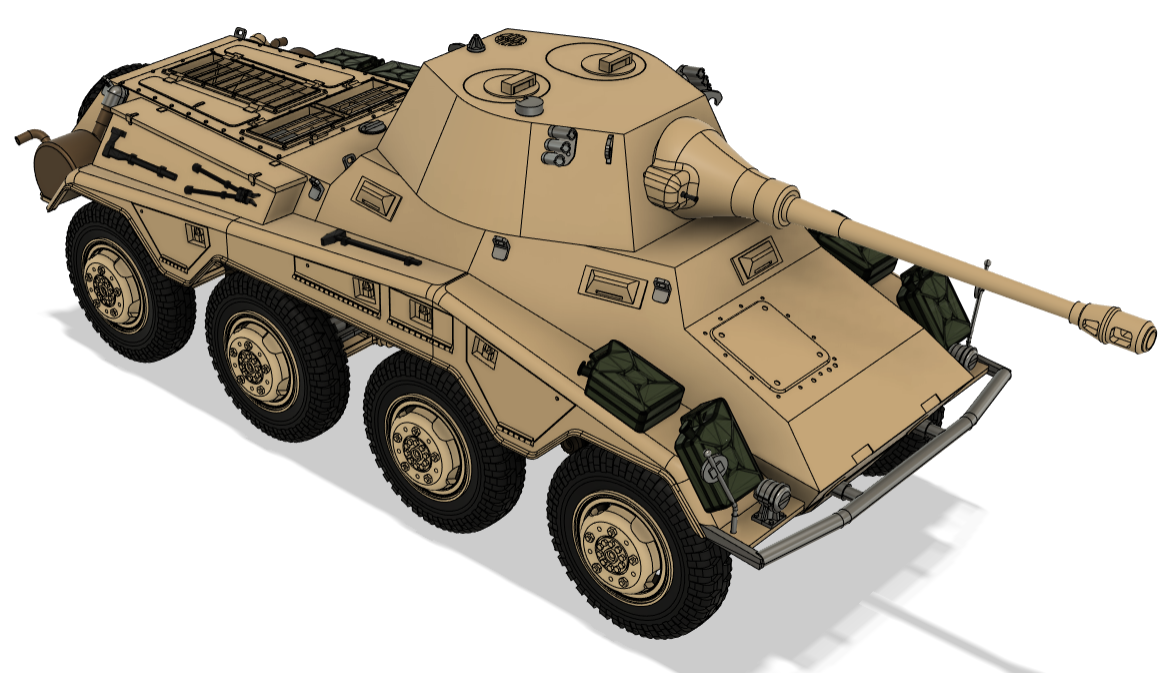

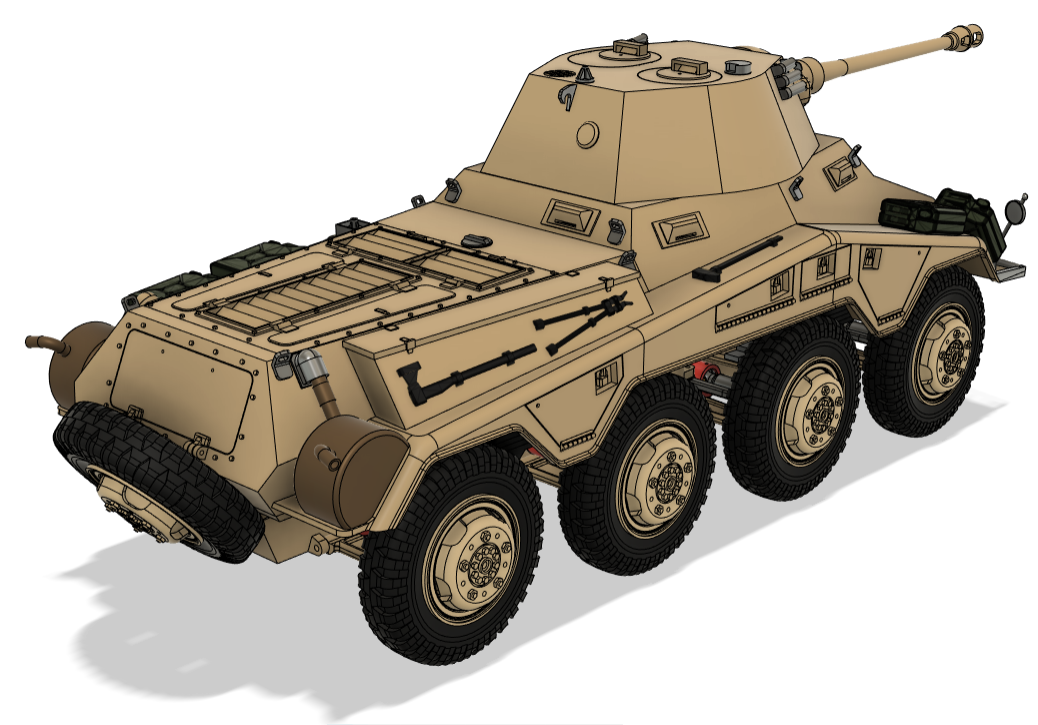

Fully 3D printable german heavy reconnaissance armored vehicle SdKfz 234 Puma in scale 1/10

The Sd.Kfz. 234 (Sonderkraftfahrzeug 234, Special Purpose Vehicle 234), was a family of armoured cars designed and built in Germany during World War II. The vehicles were lightly armoured, armed with a 20, 50 or 75 mm main gun, and powered by a Tatra V12 diesel engine.

The first and possibly best known version was the Sd.Kfz. 234/2; it had a turret armed with a 5 cm L/60 gun, which was originally intended for the VK 1602 Leopard light tank. It was produced from late 1943 to mid 1944.

Chassis were built by Büssing-NAG in Leipzig-Wahren, while armoured bodies were provided by Deutsche Edelstahlwerke of Krefeld and turrets by Daimler Benz in Berlin-Marienfelde and Schichau of Elbing, with engines from Ringhoffer-Tatra-Werke AG of Nesselsdorf.

Lenght: 756mm

Width: 260mm

Height: 250 mm

Weight: approx 4 kg

Detailed, full of functions and easy to build (print).

All wheel drive and steering.

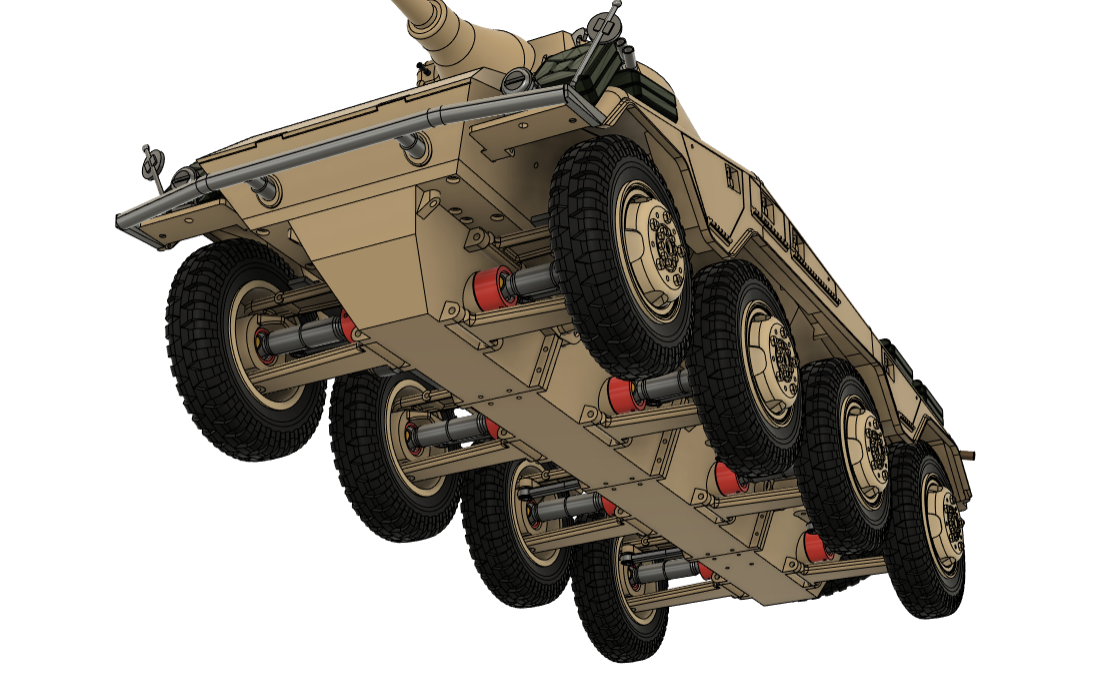

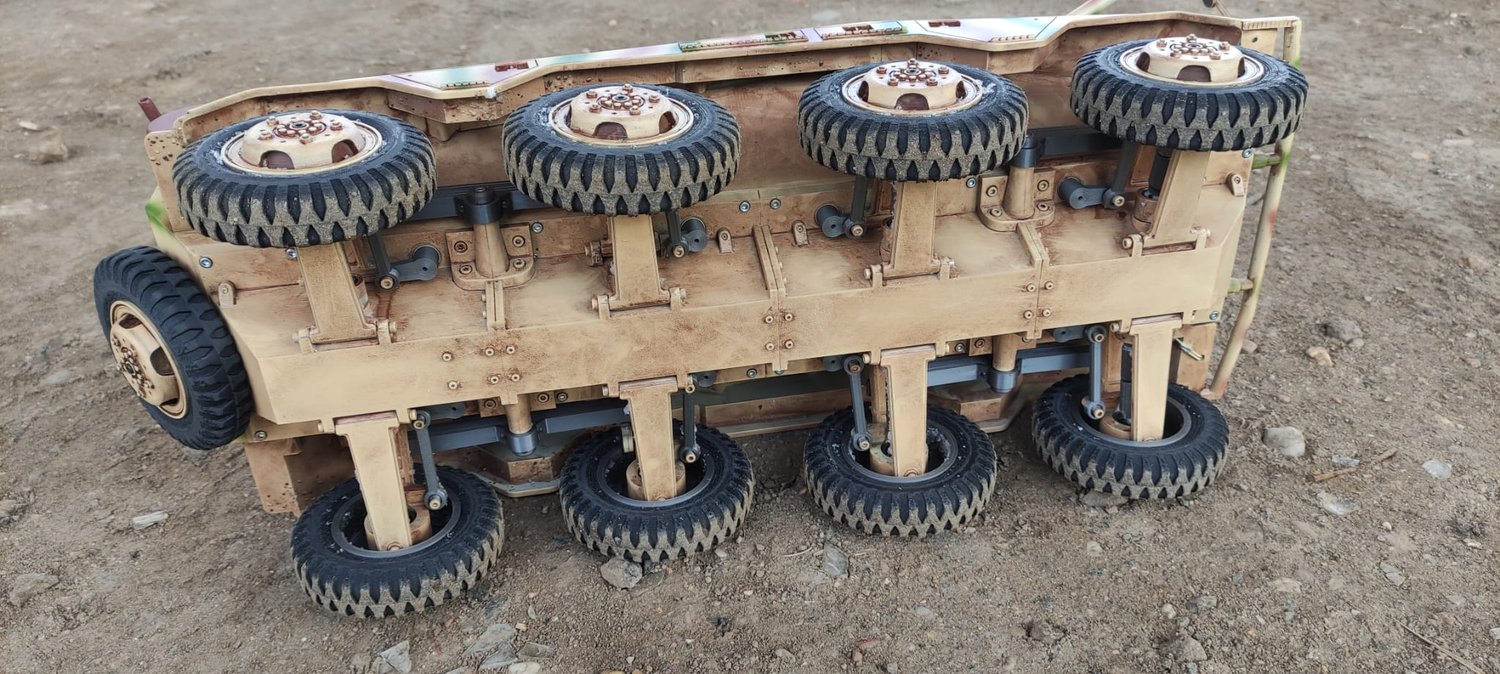

Functional suspension.

Functional gun traverse.

Functional gun elevation.

Printed tyres.

Functional headlights.

Silent belt transmission.

Easy access to the transmission and other gearing for maintenance.

Vehicle can be equipped with various electronics and functions.

It is up to you how much you would like to use all the options.

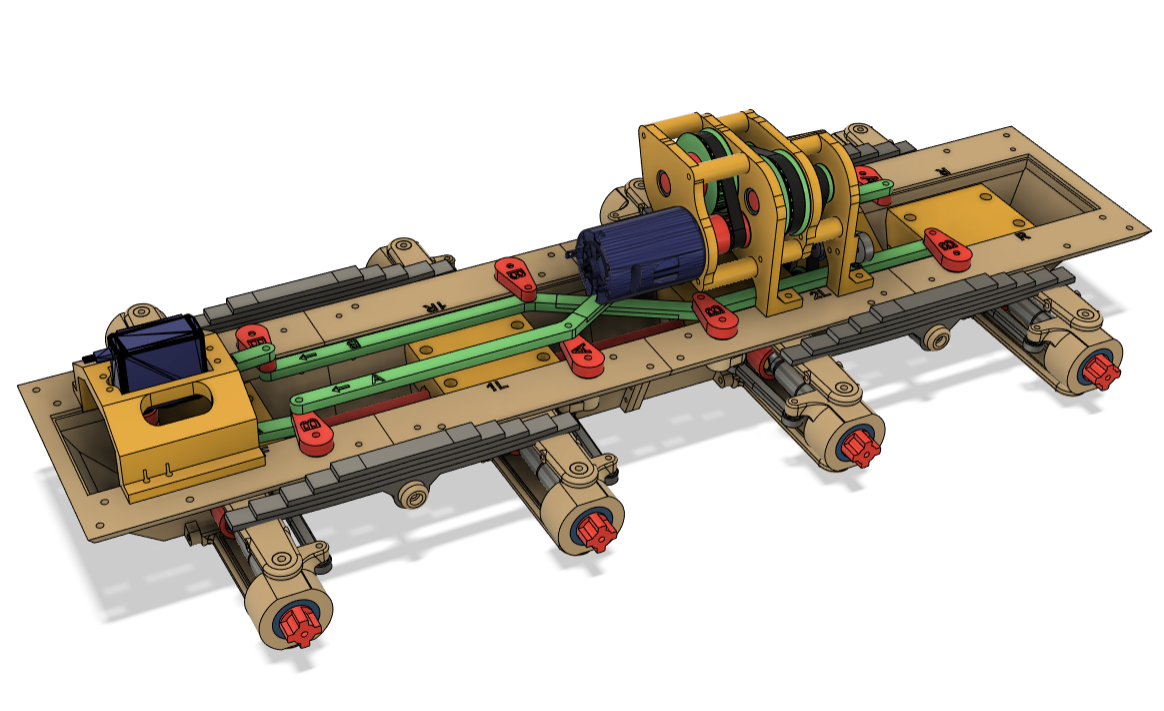

Vehicle uses one belt transmission and motor and one steering servo.

The model contains everything what you need to print and build the vehicle:

STL files for every printed part, assembly guide and shopping list (screws, motor, servos....)

Shopping list:

Screw M2x8 – 28x

Screw M3x10 – 197x

Screw M3x16 – 18x

Screw M3x30 – 8x

Screw M3x12 – 16x

Screw M3x6 – 2x

Nut M3 – 2x

Socket set screw M3x6 – 2x

Motor 540 – 1x

Belt 70XL 6,35mm – 1x

Belt 60XL 6,35mm – 3x

Rubber band – 1x

Bearing 10x15x4 – 38x

Bearing 15x21x4 – 9x

Steel rod 2mm (e.g welding rod for autogenous welding) approx 60cm

alternatively you can use pieces of filament

Standard servo 360° (for turret traverse) - 1x

Standard servo 360° or 180° (for gun elevation) – 1x

Standard servo 180° (for steering) - 1x

Glue

Whole model is designed for FDM printers only.

If you have any questions please do not hesitate to send me an email.

I have spent a lot of time developing this model.

Please, dont share this STLs, it will affect my next releases.

Thank you very much.

3D printing settings

Whole model is designed for FDM printers only.

Bed size: 220x200mm

Nozzle size: 0,4mm

Layer height: 0,2mm

Infill: 40%

Perimeters: 3

Material:

Most parts: PLA

Steering parts: PET-G

Suspension: PET-G

Gears and shafts: PA/PC/PET-G

Tires: TPU/FLEX

Most parts do not require supports.

Parts that do need them have „support“ in the name.

Use brim option when printing tall objects - e.g fender parts.
