1/10 german 8,8cm Flak 18 AA/AT gun
Fully 3D printable german 8,8cm Flak 18 anti-aircraft and anti-tank artillery gun in scale 1/10.
The 8.8 cm Flak 18 is a German 88 mm anti-aircraft and anti-tank artillery gun, developed in the 1930s. It was widely used by Germany throughout World War II and is one of the most recognized German weapons of the conflict. The gun was universally known as the Acht-acht ("eight-eight") by the Germans and the "eighty-eight" by the Allies. Due to its lethality, especially as a tank killer, the eighty-eight was greatly feared by Allied soldiers.
Dimensions:

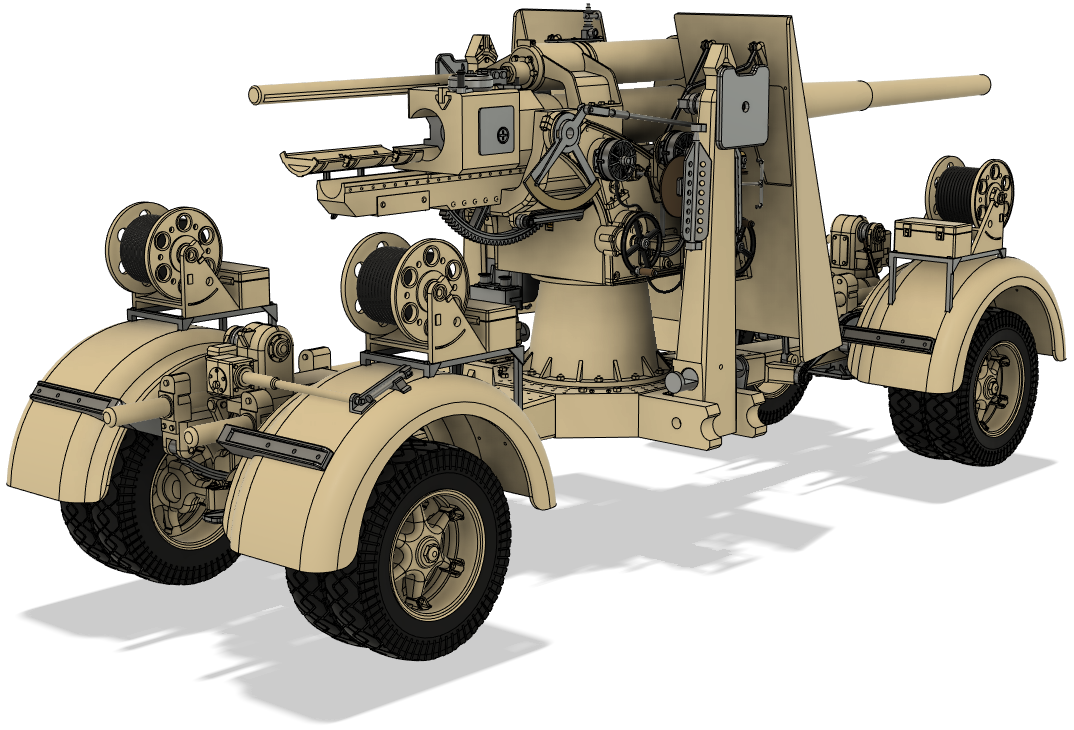

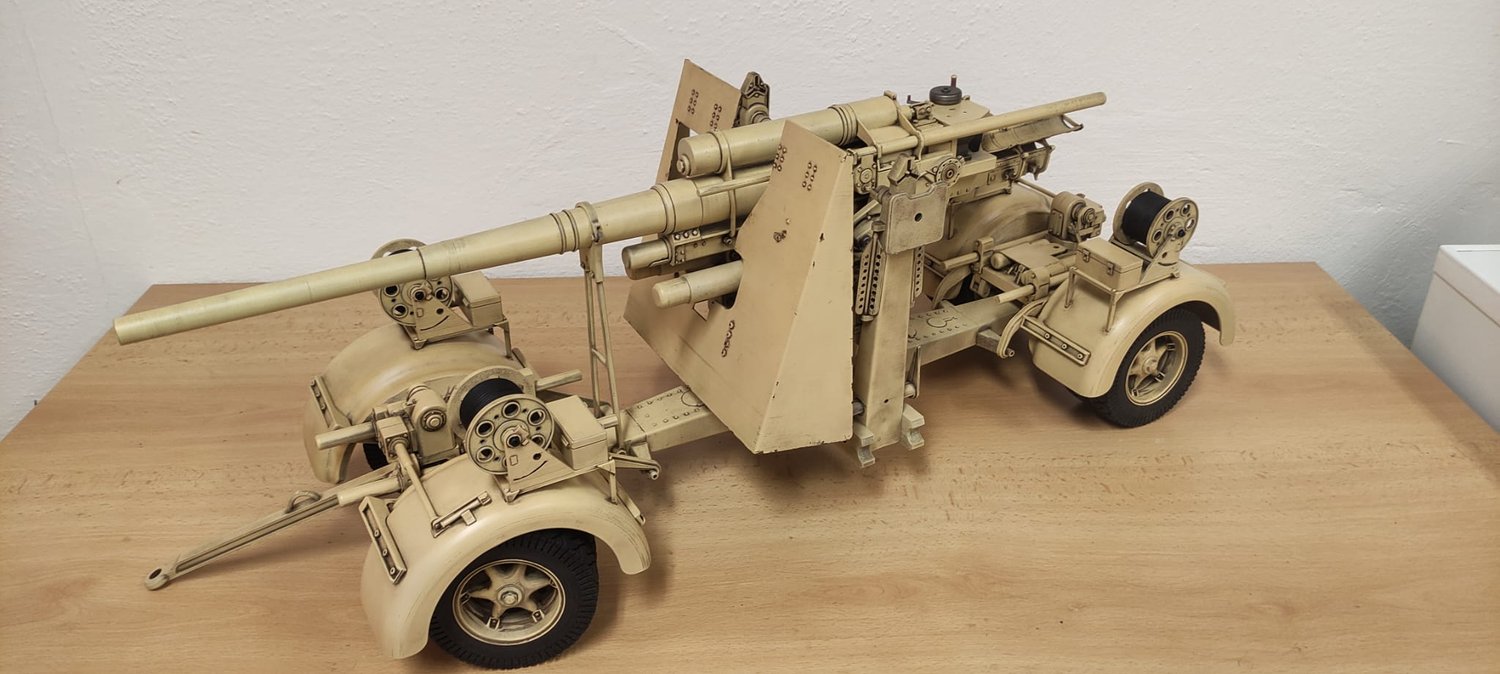

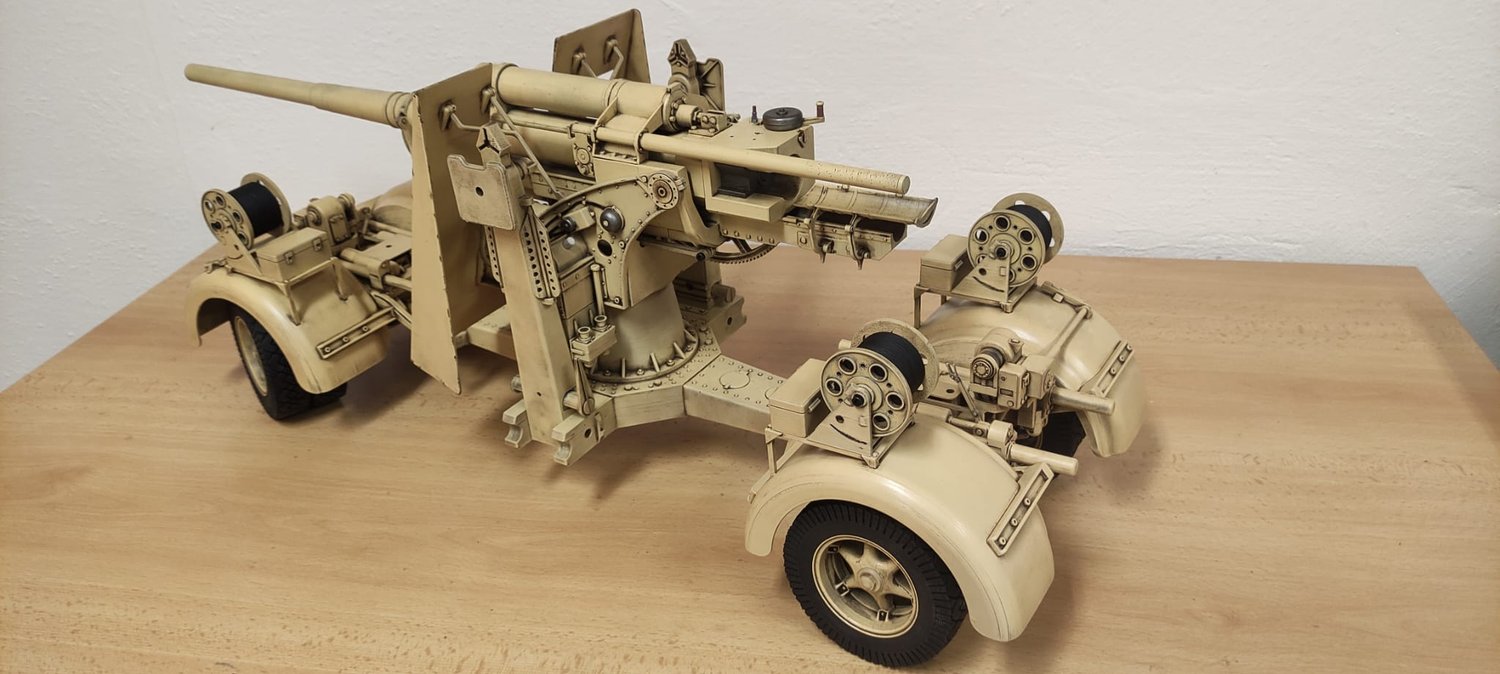

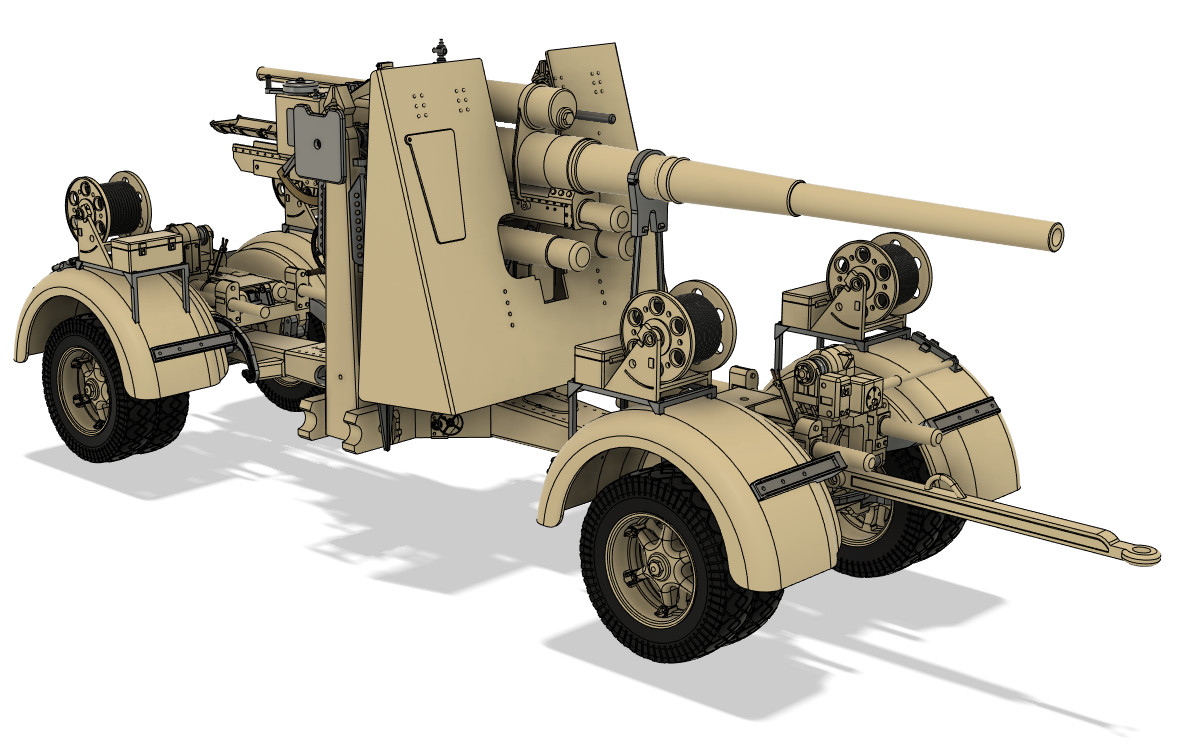

Carried:
Lenght: 848mm
Width: 253mm
Height: 290mm
Weight: approx 3kg

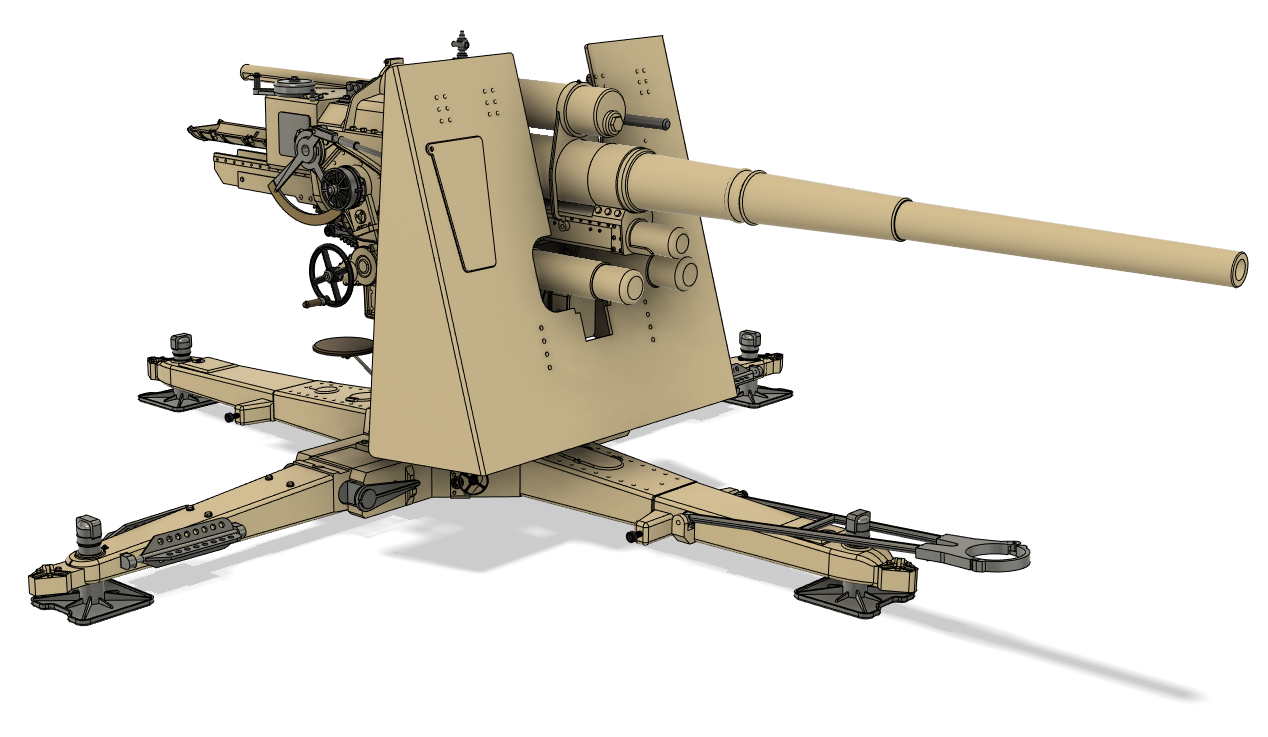

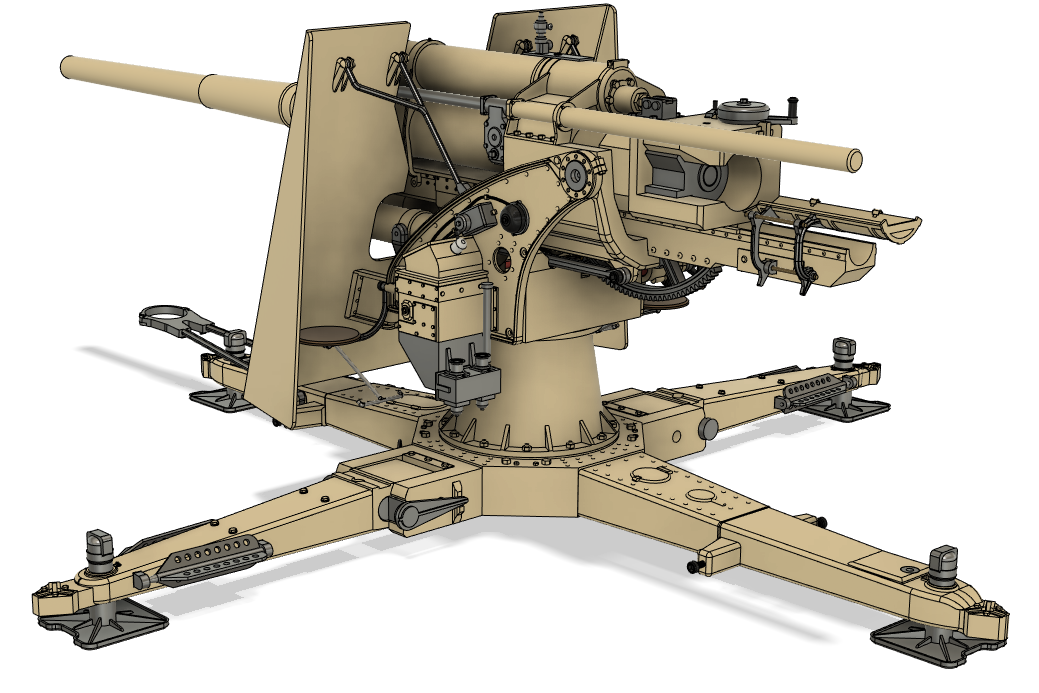

Deployed:
Lenght: 740mm
Width: 598mm
Height: 257mm
Weight: approx 3kg
Detailed, full of functions and easy to build (print).

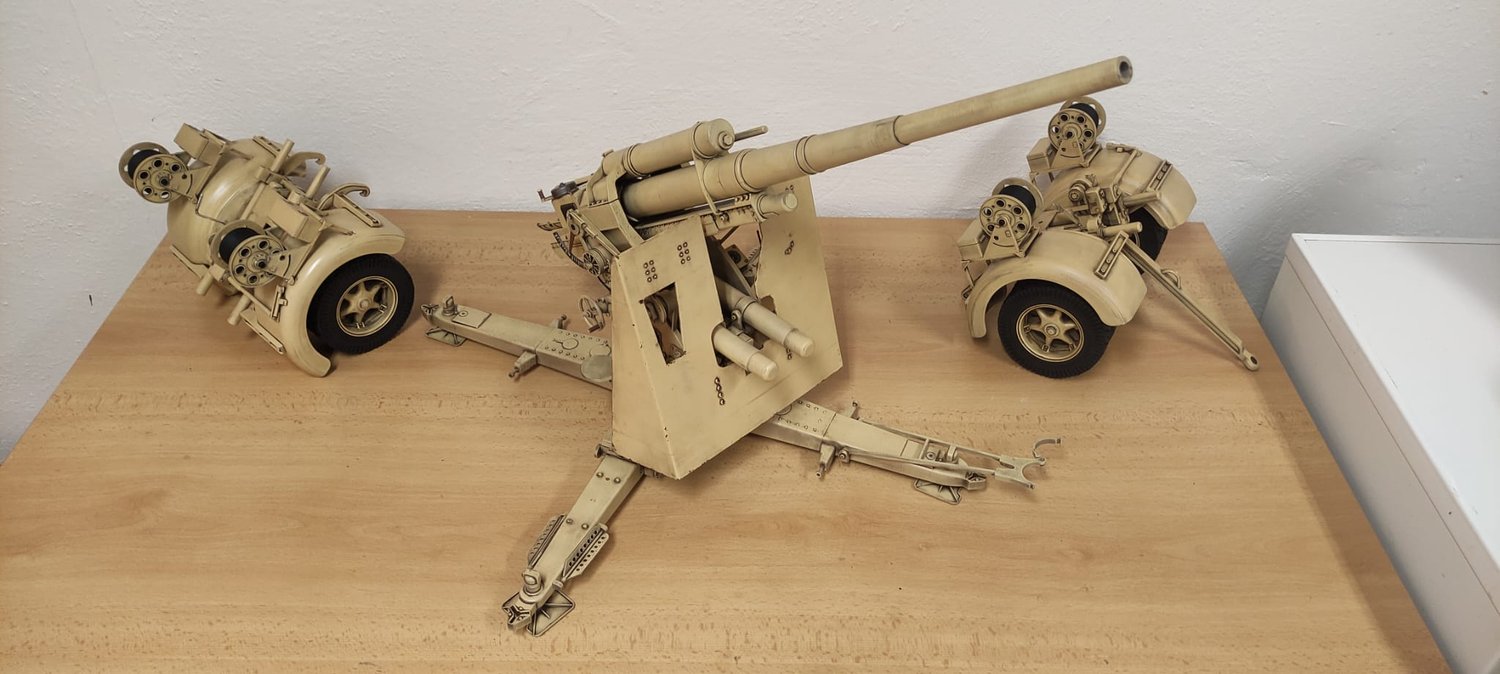

Front and rear easy detachable transport bogies included.
Steerable front bogie with a drawbar.

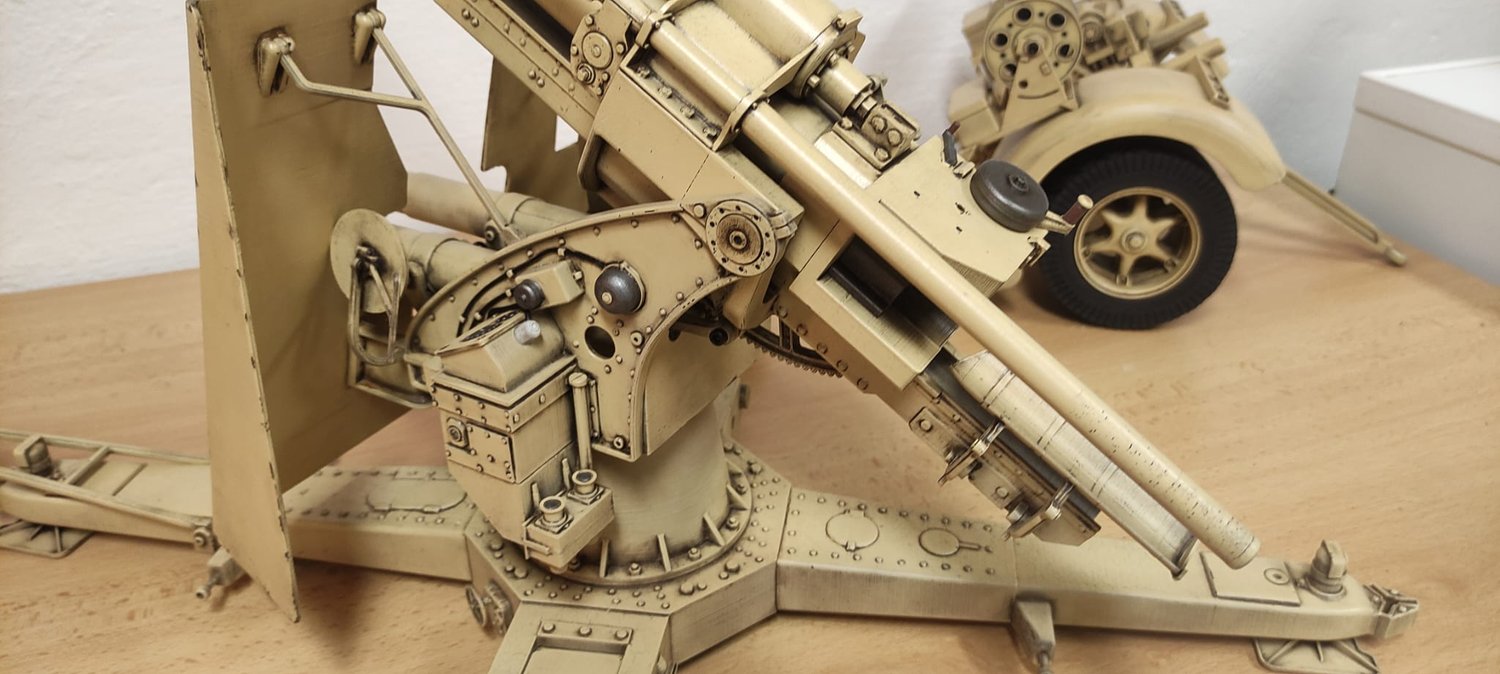

Functional gun traverse and elevation.
Functional suspension.
Printed tires.
The model contains everything what you need to print and build the vehicle
STL files for every printed part, assembly guide and shopping list (screws, motors, servos....)
Shopping list:
Screw M2x6 – 51x
Screw M2x8 – 15x
Screw M3x10 – 61x
Screw M3x16 – 20x
Screw M3x20 – 3x
Screw M3x30 – 9x
Nut M3 – 6x
Rubber band or coil spring – 2x
Bearing 10x15x4 – 10x
Steel rod 2mm (e.g. welding rod for autogenous welding) – 10cm - alternatively you can use pieces of filament
Glue
Whole model is designed for FDM printers only.
If you have any questions please do not hesitate to send me an email.
I have spent a lot of time developing this model.
Please, dont share this STLs, it will affect my next releases.
Thank you very much.
3D printing settings
Nozzle size: 0,4mm
Layer height: 0,2mm
Infill: 40%
Perimeters:
Gears and shafts – 6 Everything else – 3
Material: PLA/PETG
Material for gears and shafts: PC/PET-G
Material for tires: TPU/TPE
Print settings for tires: Perimeters: 2
Top layers: 5
Bottom layers: 5
Infill pattern: Gyroid
Infill density: 5%
Supports: On
