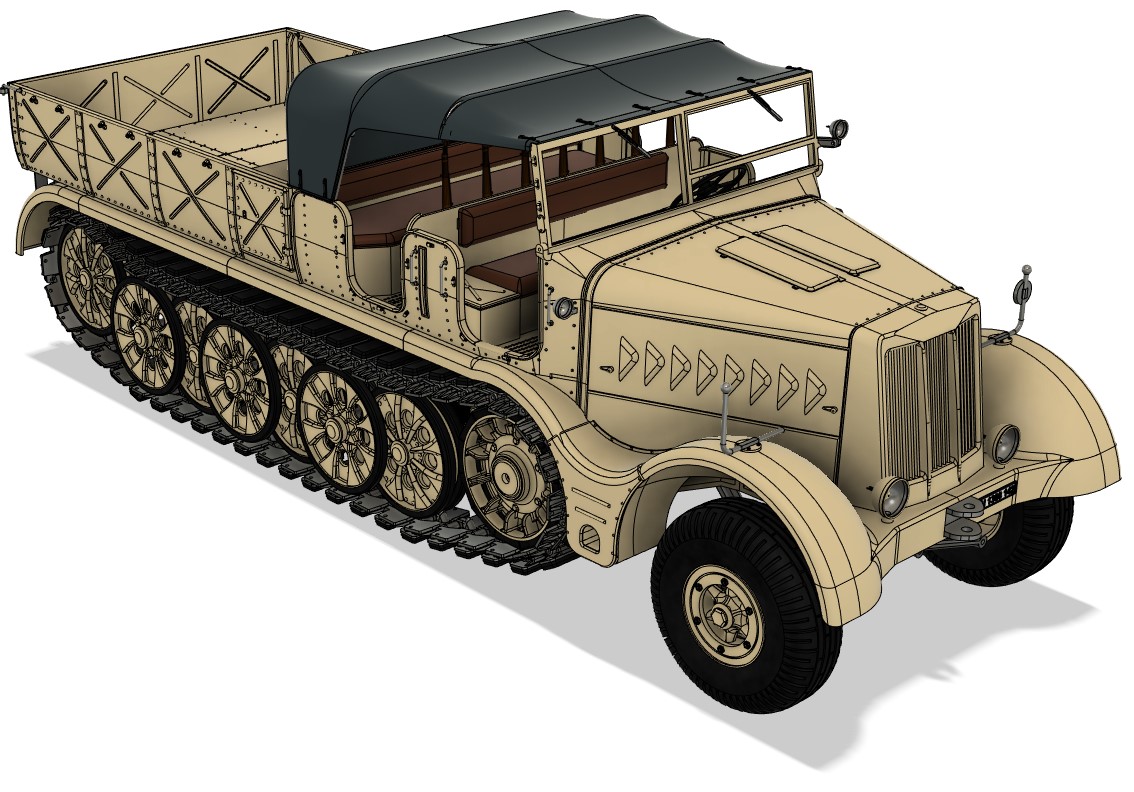

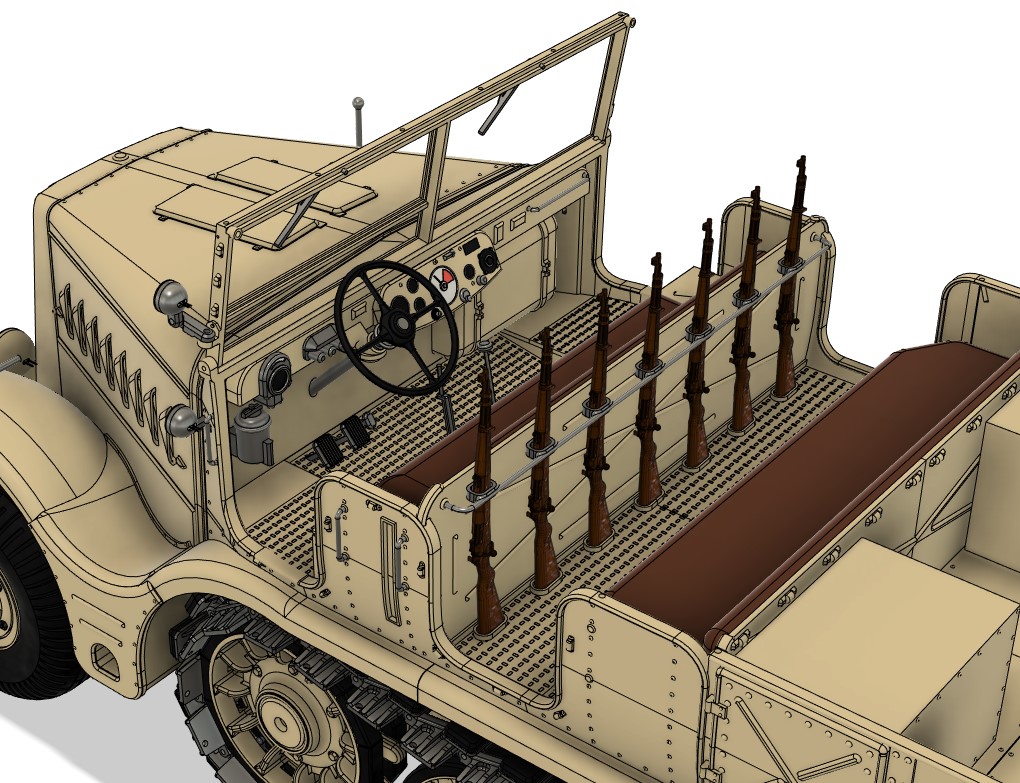

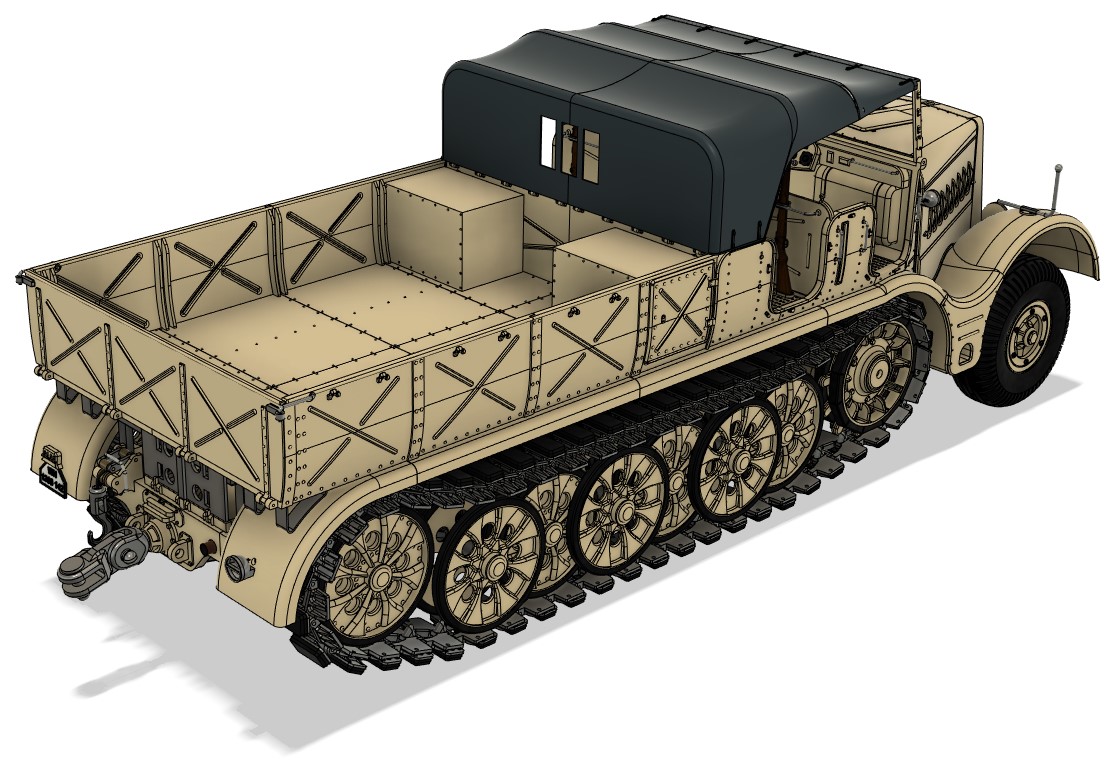

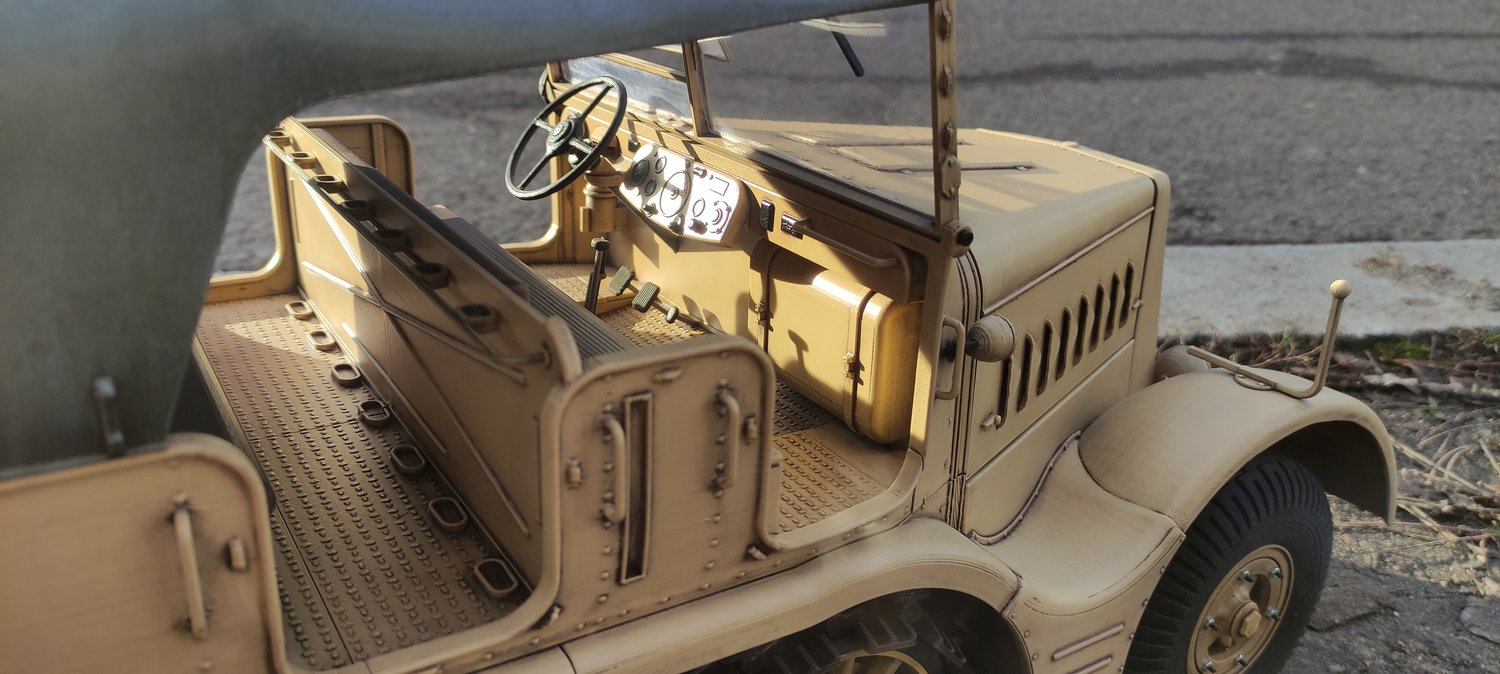

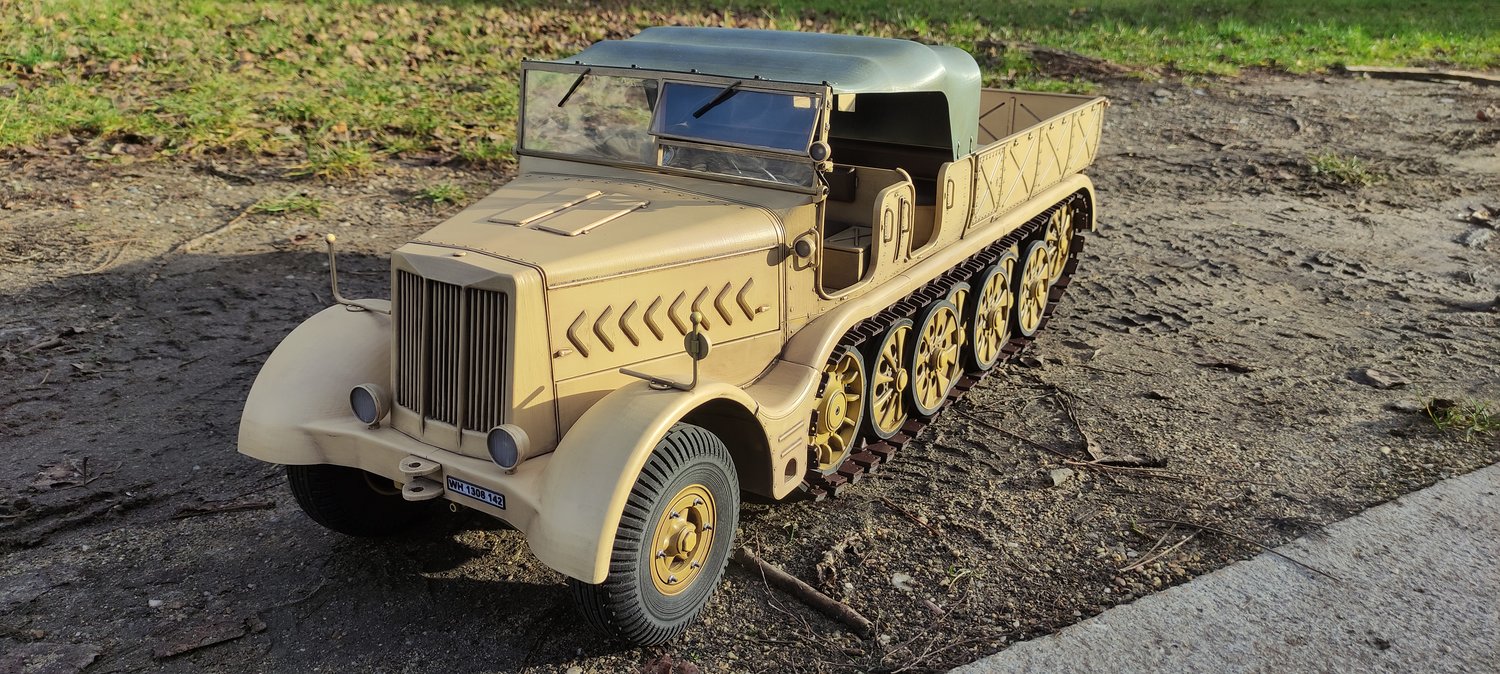

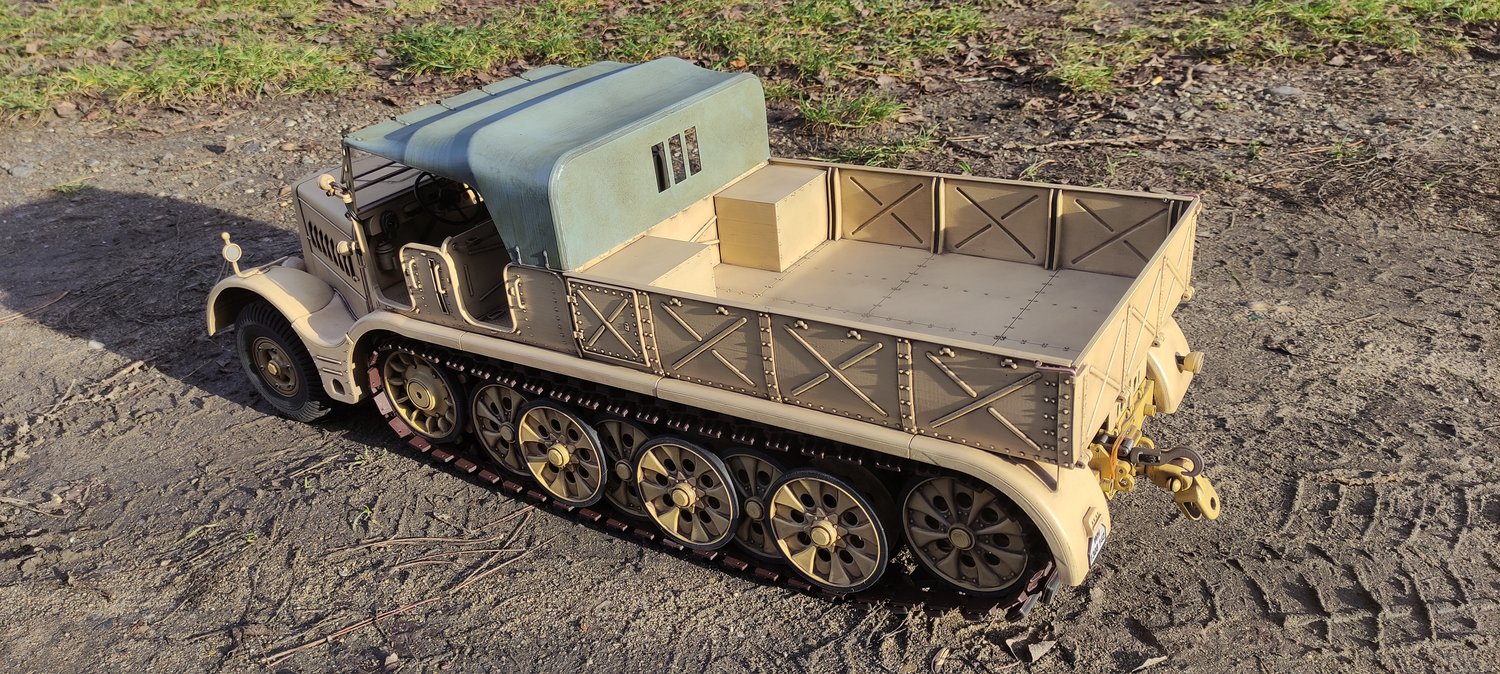

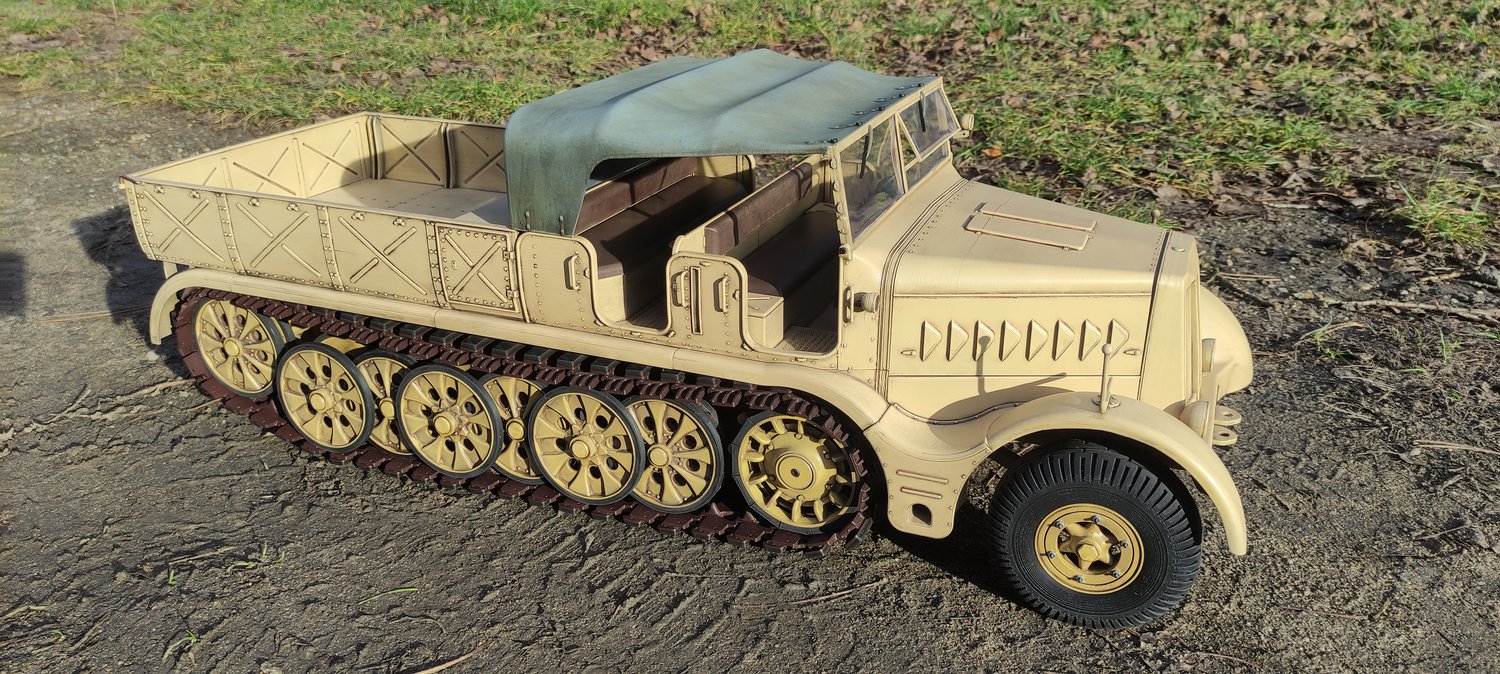

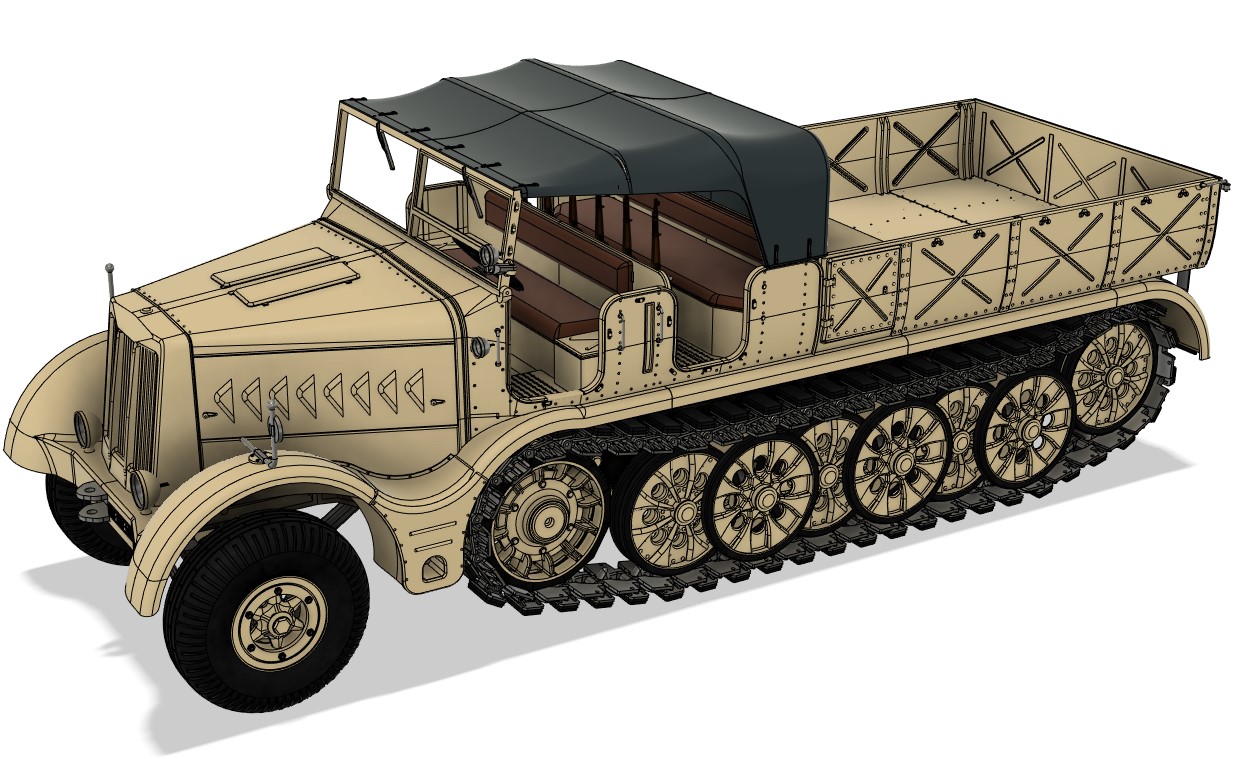

1/10 RC german SdKfz 9 Famo heavy artillery tractor

Fully 3D printable german SdKfz 9 Famo artillery tractor in scale 1/10.

The Sd.Kfz. 9 (also known as "Famo") was a German half-track that saw widespread use in World War II, and the heaviest half-track vehicle of any type built in quantity in Nazi Germany during the war years. Its main roles were as a prime mover for very heavy towed guns such as the 24 cm Kanone 3 and as a tank recovery vehicle. Approximately 2,500 were produced between 1938 and 1945.

Both tracks and wheels were used for steering. The steering system was set up so that shallow turns used only the wheels, but brakes would be applied to the tracks the further the steering wheel was turned.

The Sd.Kfz. 9 was designed to have a towing capacity of 28 tonnes.

All were equipped with a winch, mounted in the middle of the vehicle, just under the cargo platform.

Lenght: 871mm

Width: 285mm

Height: 290mm

Weight: approx 8kg

Detailed, full of functions and easy to build (print).

Track drive.

Front axle and track steering.

Functional suspension.

Servo driven winch.

Functional headlights, taillights and blinkers.

Printed tires.

Easy access to the transmission for maintenance.

The vehicle can be equipped with various electronics and functions.

It is up to you how much you would like to use all the options.

The model contains everything what you need to print and build the vehicle

STL files for every printed part, assembly guide and shopping list (screws, motors, servos....)

Shopping list:

Screw M2x6 – 64x

Screw M2x8 – 12x

Screw M3x6 – 4x

Screw M3x10 – 193x

Screw M3x15 – 22x

Screw M3x20 – 2x

Screw M3x30 – 12x

Screw M3x40 – 2x

Nut M2 – 12x

Nut M3 – 2x

Socket set screw M3x4 – 2x

Motor 540 (35T or higher) – 2x

Rubber band – 14x

Bearing 10x15x4 – 46x + 24x for frame with bearings (optional)

Bearing 15x21x4 – 6x

Steel rod 2mm (e.g. welding rod for autogenous welding) – 5m

alternatively you can use pieces of filament

Steel wire 0,5mm (for a the hinged window – optional, otherwise use glue) - 1cm

Rope (for winch) – lenght depends on rope diameter

(it must fit into the winch drum)

Standard servo 180° (for the front axle steering) - 1x

Standard servo 360° (for the winch) - 1x

Glue

Whole model is designed for FDM printers only.

If you have any questions please do not hesitate to send me an email.

I have spent a lot of time developing this model.

Please, dont share this STLs, it will affect my next releases.

Thank you very much.

3D printing settings

Min. bed size: 220x200mm

Nozzle size: 0,4mm

Layer height: 0,2mm

Infill: 40%

Perimeters:

Gears and shafts – 6 Everything else – 3

Material: PLA/PETG

Material for gears and shafts: PC/PET-G

Material for tires: TPU/TPE

Print settings for tires: Perimeters: 2

Top layers: 5

Bottom layers: 5

Infill pattern: Gyroid

Infill density: 5%

Supports: On

Most parts do not require supports. Parts that do need them have „support“ in the name.
