1/10 Hotchkiss H-39 light tank RC model

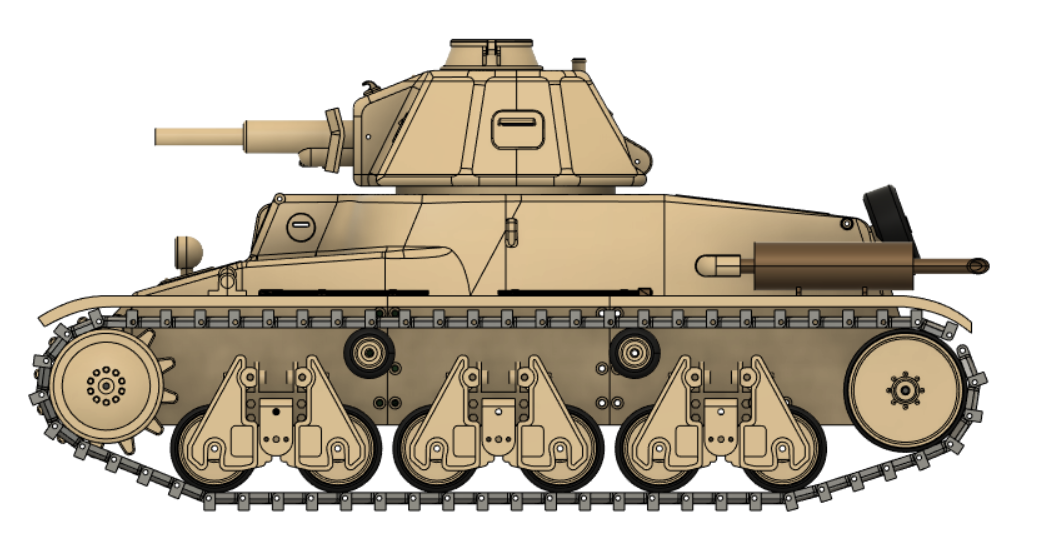

Fully 3D printable Hotchkiss H-39 light tank in scale 1/10
The Hotchkiss H-35 or Char léger modèle 1935 H was a French cavalry tank developed prior to World War II. Despite having been designed from 1933 as a rather slow but well-armoured light infantry support tank, the type was initially rejected by the French Infantry because it proved difficult to steer while driving cross-country, and was instead adopted in 1936 by the French Cavalry arm.
On 1939 the Commission d'Expérimentations de l'Infanterie accepted improved version with more powerful engine, armour protection and armament known as H-39
Lenght: 430mm
Width: 200mm
Height: 220mm
Weight: approx 2,8 kg

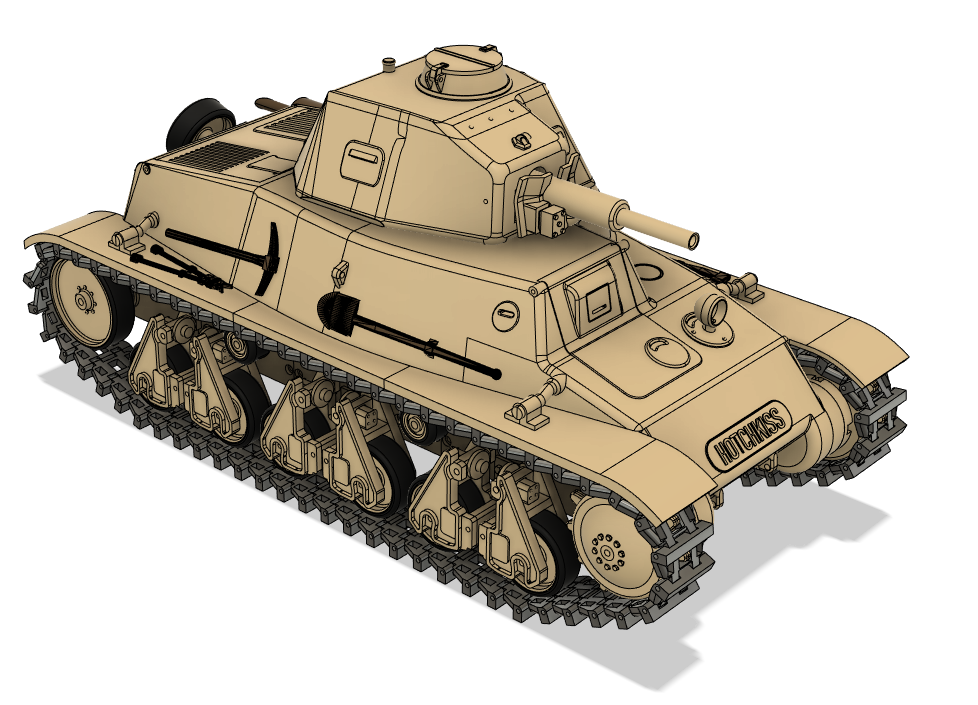

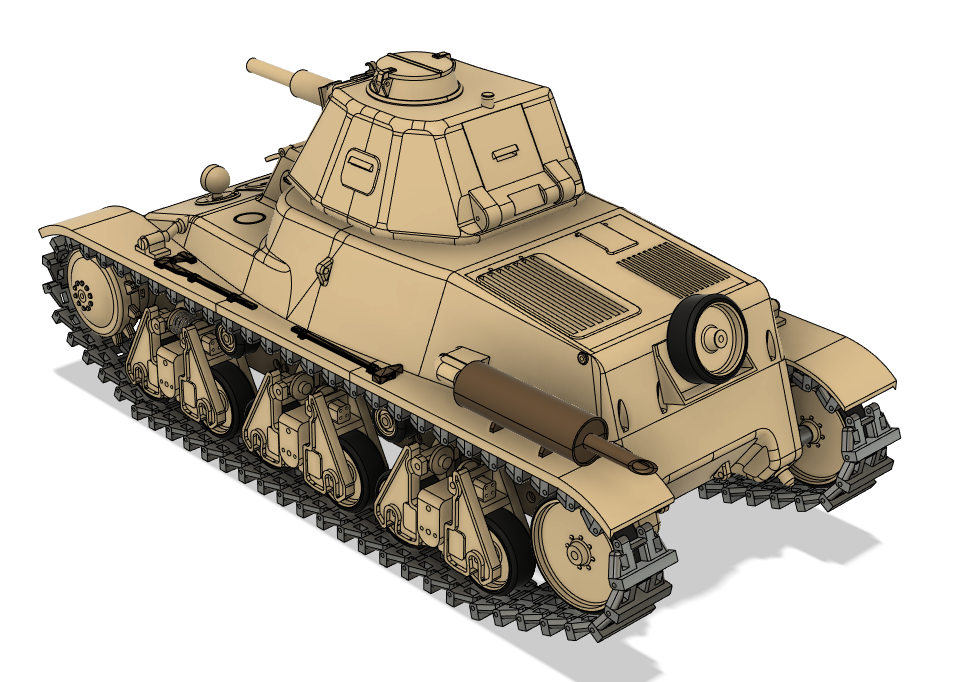

Detailed, full of functions and easy to build (print).

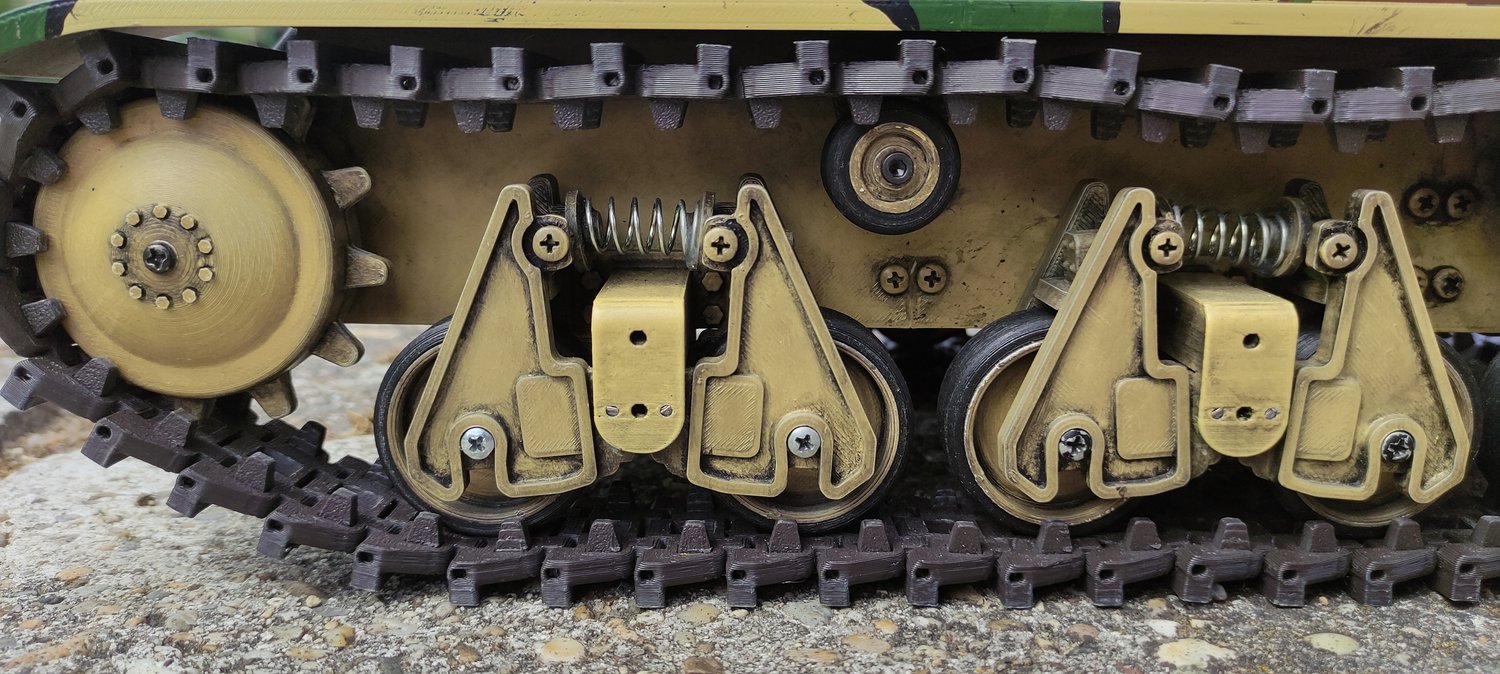

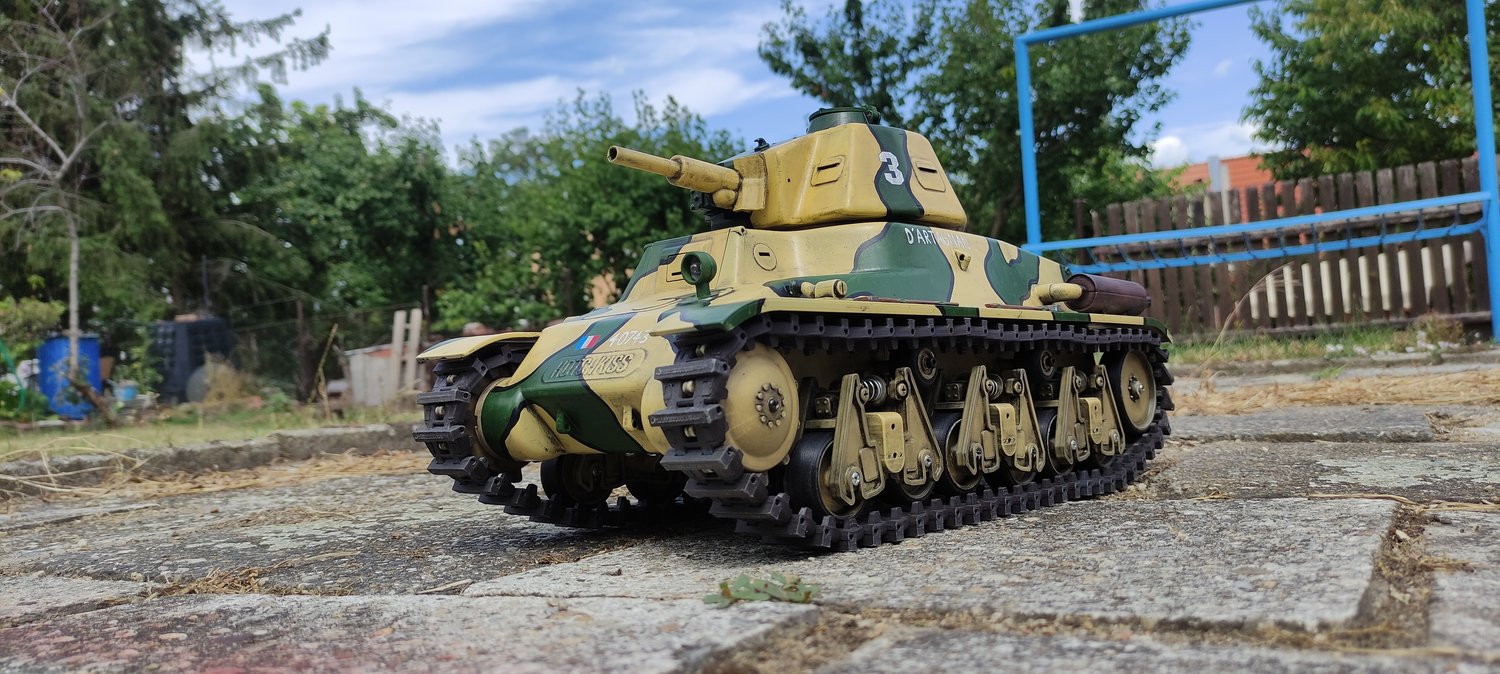

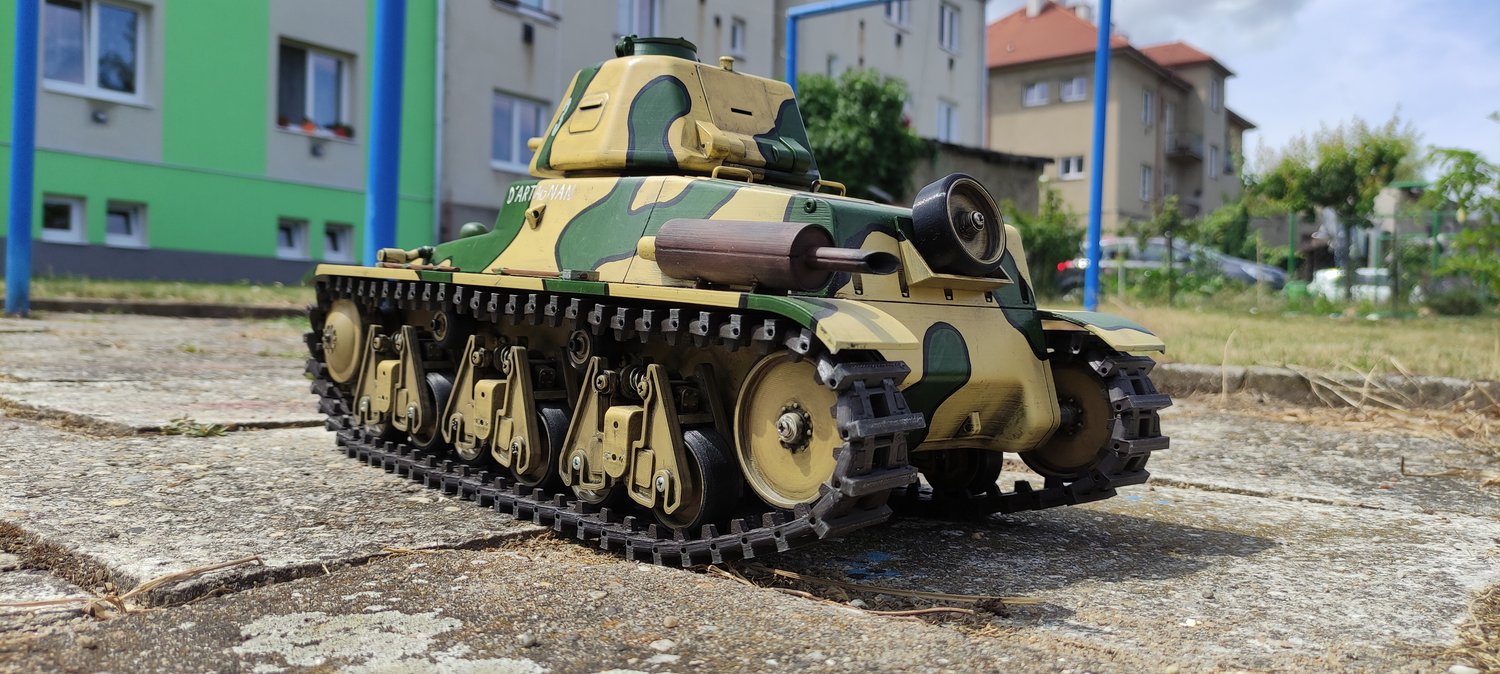

Functional suspension.
Functional turret traverse.
Functional cannon lifting
Adjustable track tension
Functional Headlights.
All hatches are openable.
Printed tracks.
Printed transmissions.
Easy access to the transmissions for maintenance.

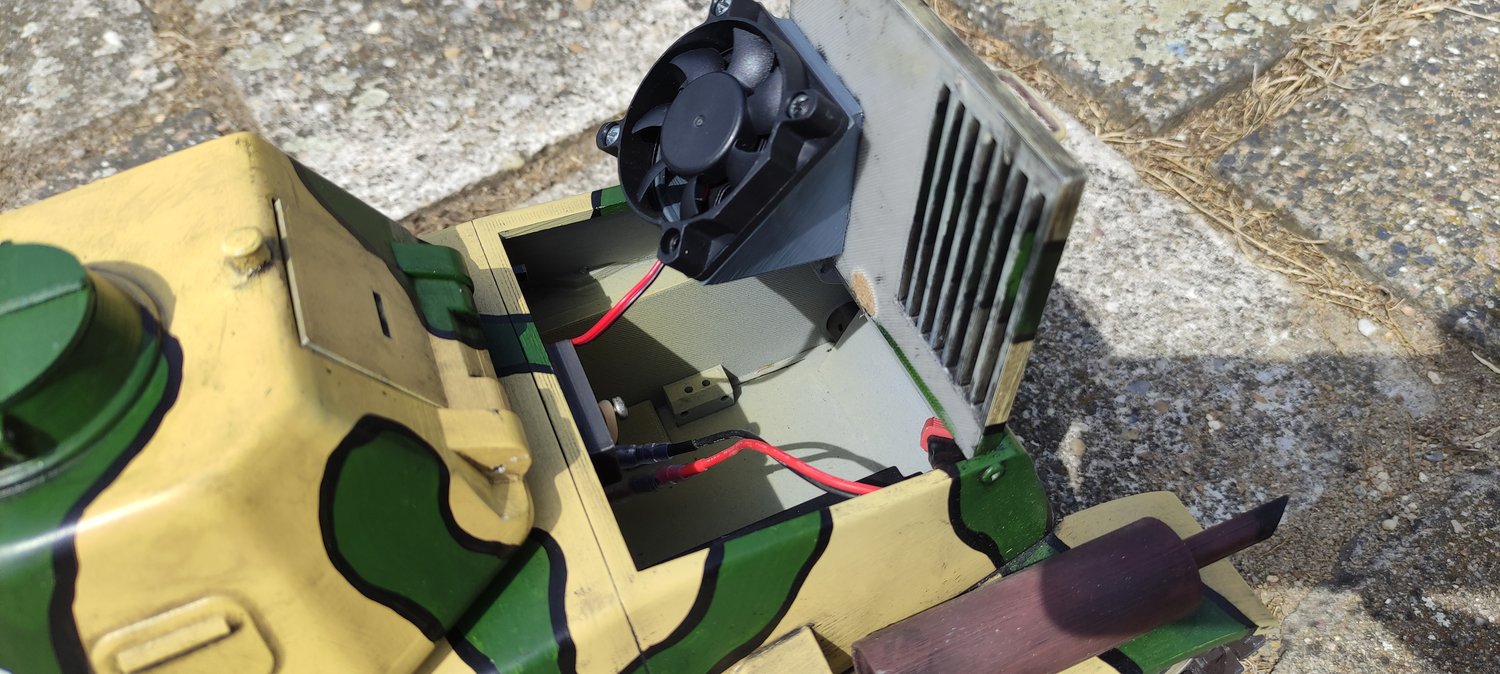

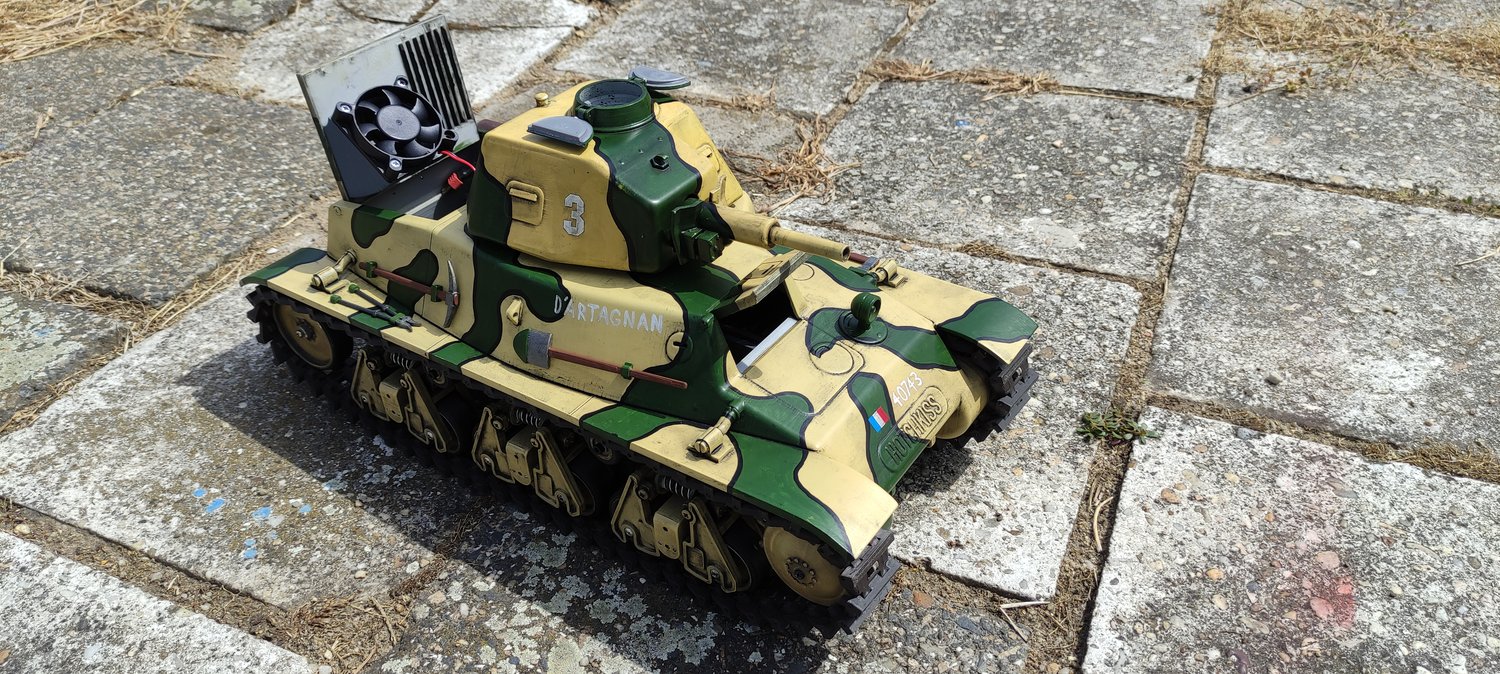

Tank can be equipped with various electronics and functions.
It is up to you how much you would like to use all the options.
Tank uses two separate transmissions for movement.
Contains everything what you need to print and build the tank:
STL files for every printed part, assembly guide and shopping list (screws, motors, servos....)
Shopping list:
Screw M3x10 – 122x
Screw M3x8 – 2x
Screw M3x20 – 9x
Screw M3x25 – 12x
Socket set screw M3x4 – 2x
Screw M3x15 – 1x
Screw M2x8 – 37x
Motor 540 or 380 – 2x – model is adapted to both types
Rubber band – 3x
Bearing 10x15x4 – 20x
Steel rod 2mm (e.g welding rod for autogenous welding) alternatively you can use pieces of filament
Coil spring 6x18x0,5mm or similar – 6x
Standard servo 360° (for turret turning) - 1x
Standard servo 180° or 360° (for cannon lifting) - 1x
Brass tube 4.0x3.2mm – approx 300mm
50mm fan
Glue
Whole model is designed for FDM printers only.
If you have any questions please do not hesitate to send me an email.
I have spent a lot of time developing this model.
Please, dont share this STLs, it will affect my next releases.
Thank you very much.
3D printing settings
Print settings
Whole model is designed for FDM printers only.
Bed size: 200x200mm
Nozzle size: 0,4mm
Layer height: 0,2mm
Infill: 40%
Perimeters: 3
Material: PLA
Material for tracks: PETG
Material for wheel bandages: Flex, TPU (optional)
Most parts do not require supports. Parts that do need them have „support“ in the name.
