1/10 RC german Sd.Ah.116 tank transporter trailer

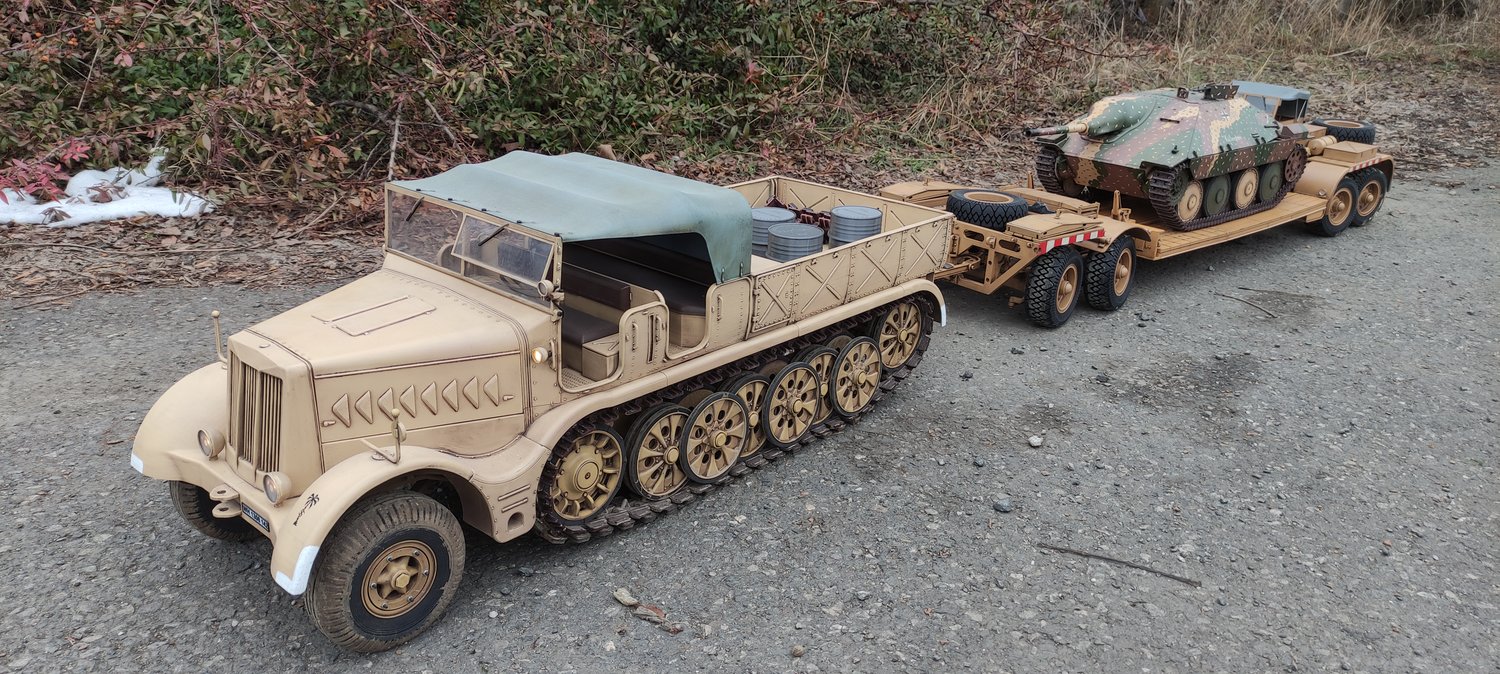

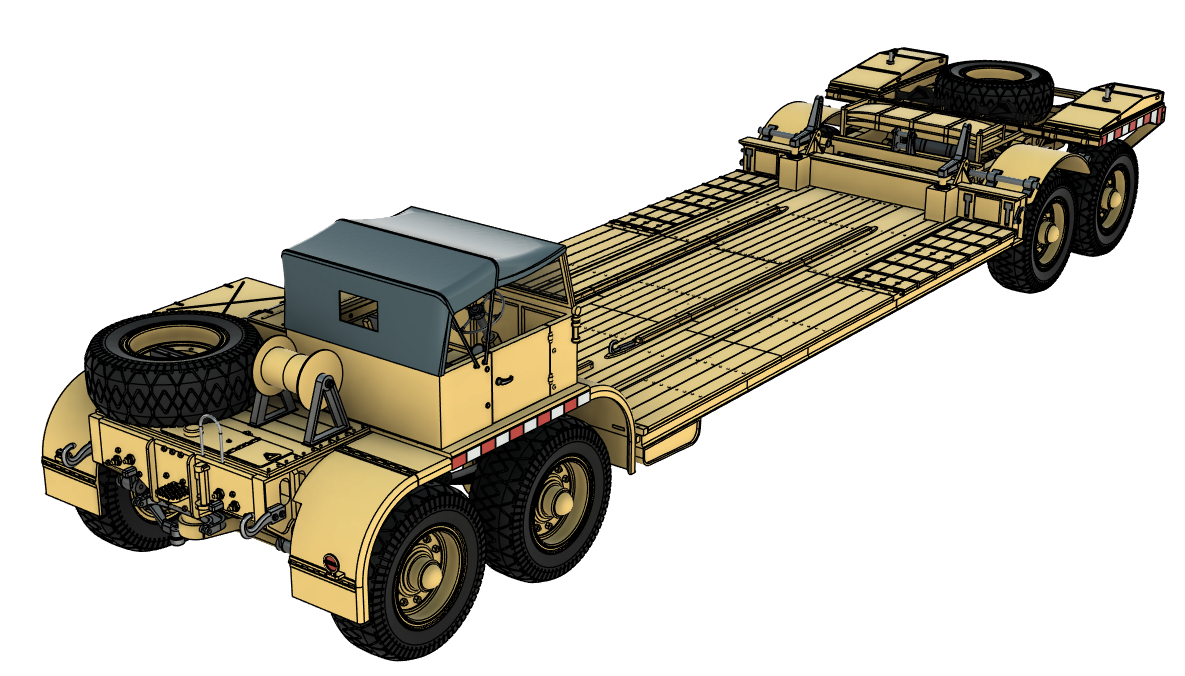

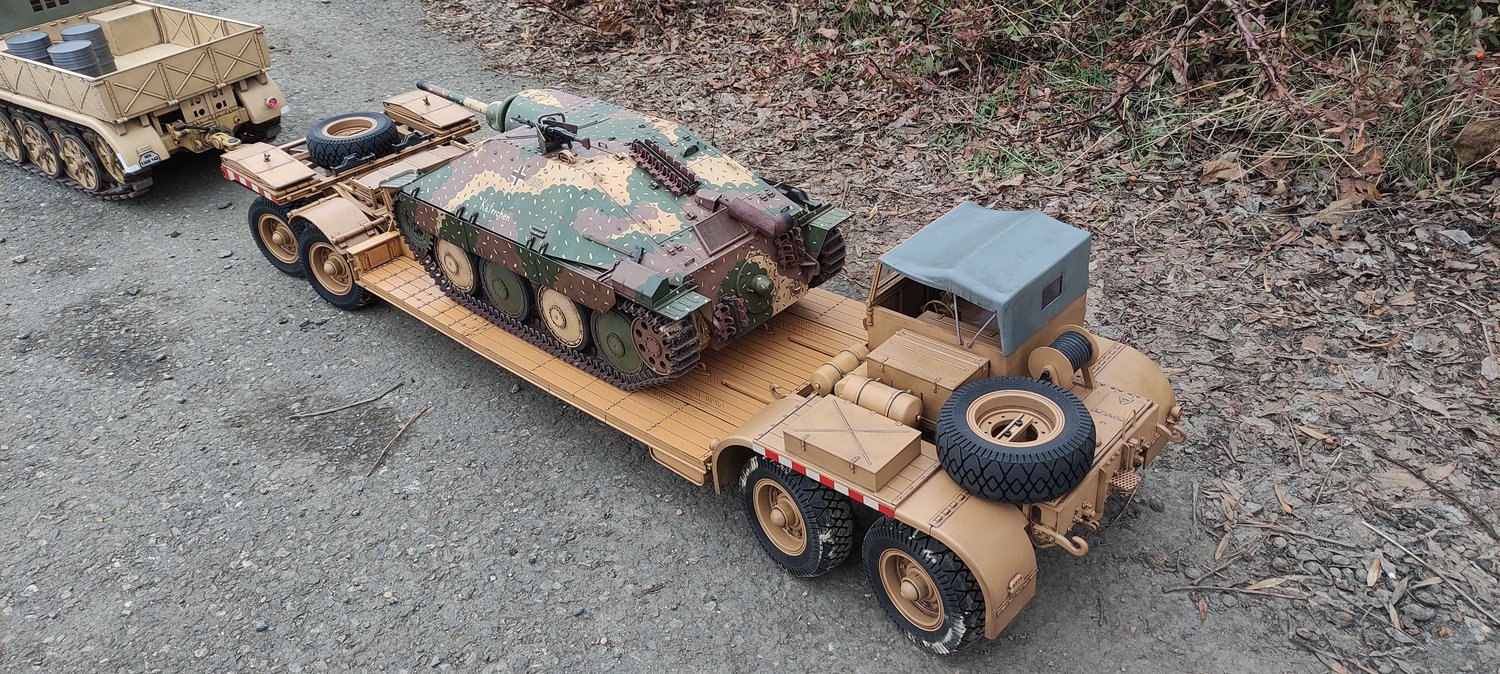

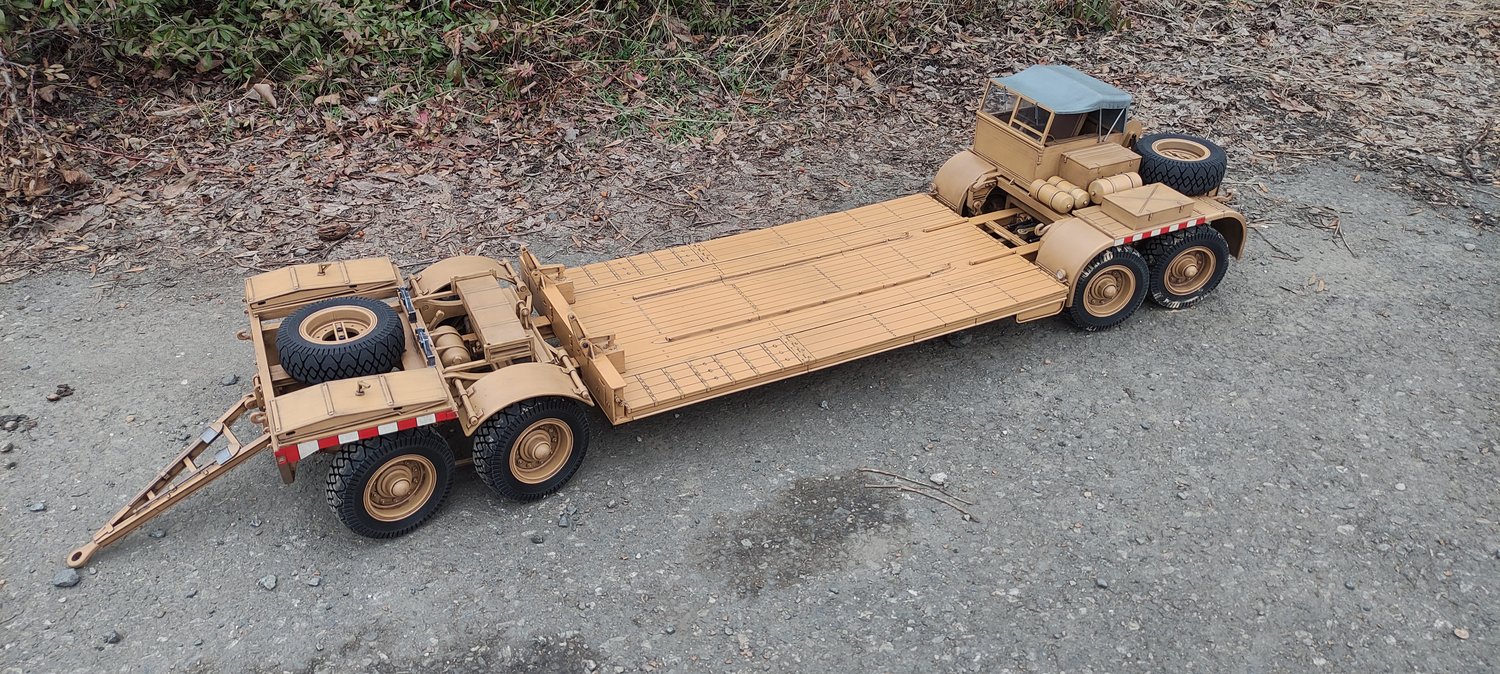

Fully 3D printable german Sd.Ah.116 tank transporter trailer in scale 1/10.

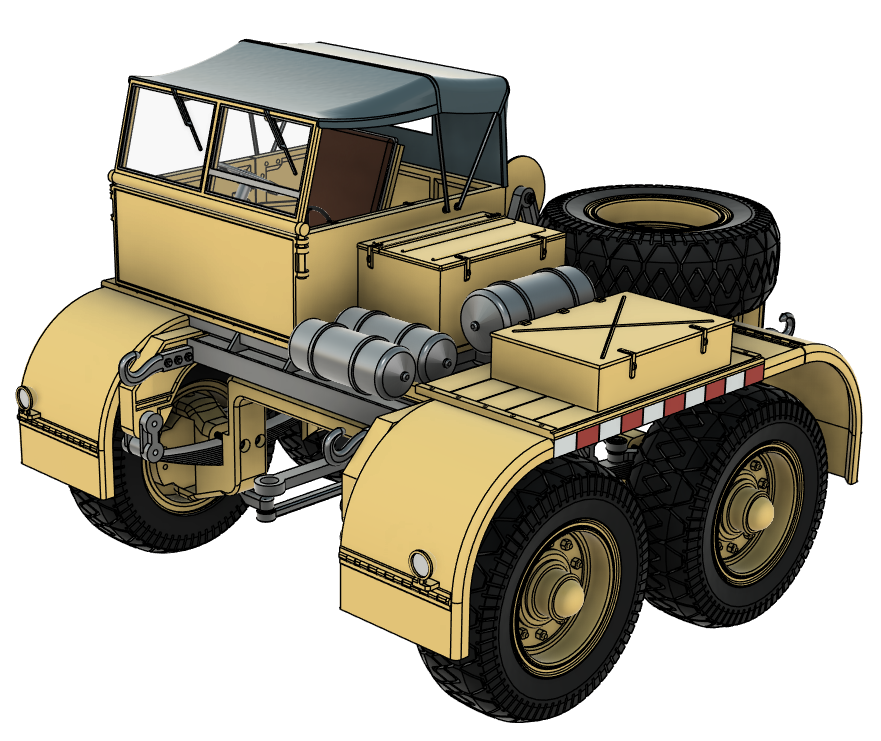

The Tiefladeanhänger für Panzerkampfwagen 22/23t (Sd. Ah. 116) - flat bed trailer for armoured vehicles - was officially introduced in December 1940. It succeeded the similar testing model which was designated Tiefladeanhänger für Panzerkampfwagen 20t (Vs. Ah. 642). Armoured vehicles up to a weight of 22 tons, later 23 tons, could be transported. On the rear carriage there was a cabin for a second driver. Usually, it was towed by a SdKfz. 8 or a SdKfz. 9 Famo.

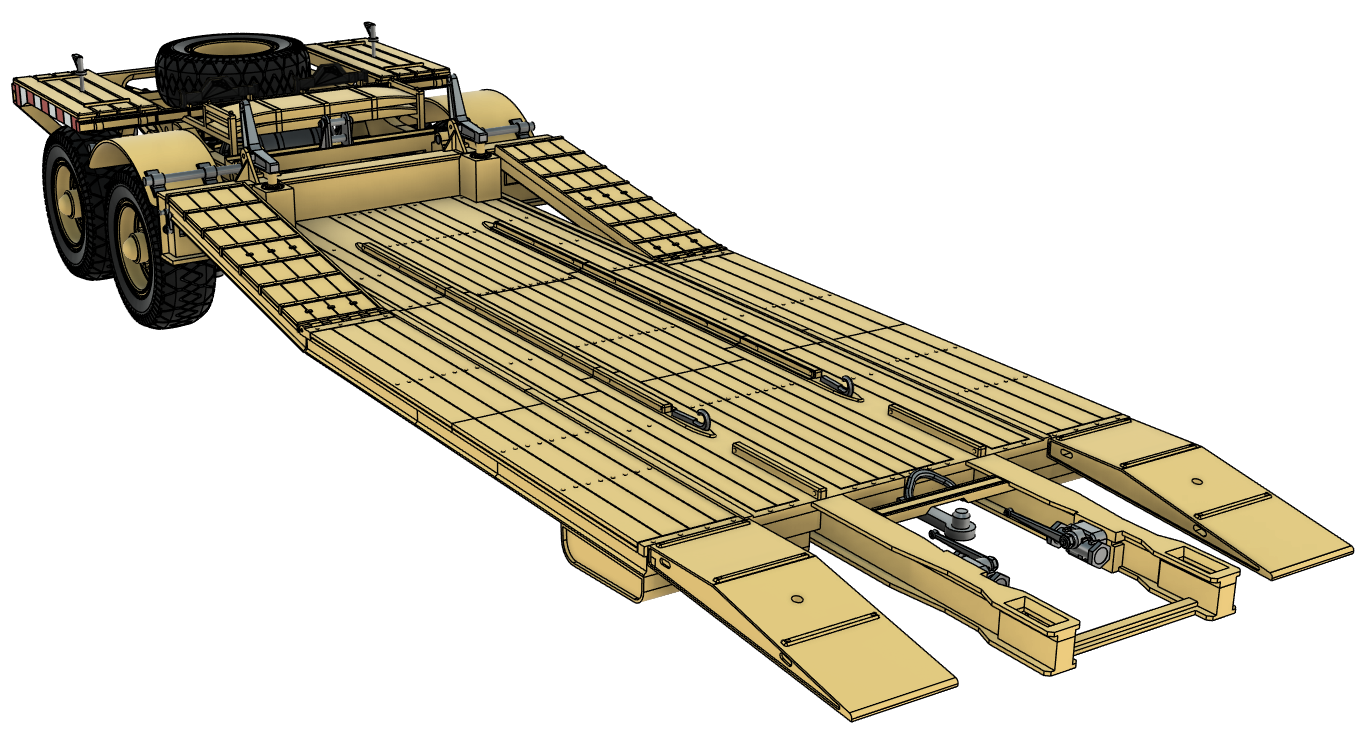

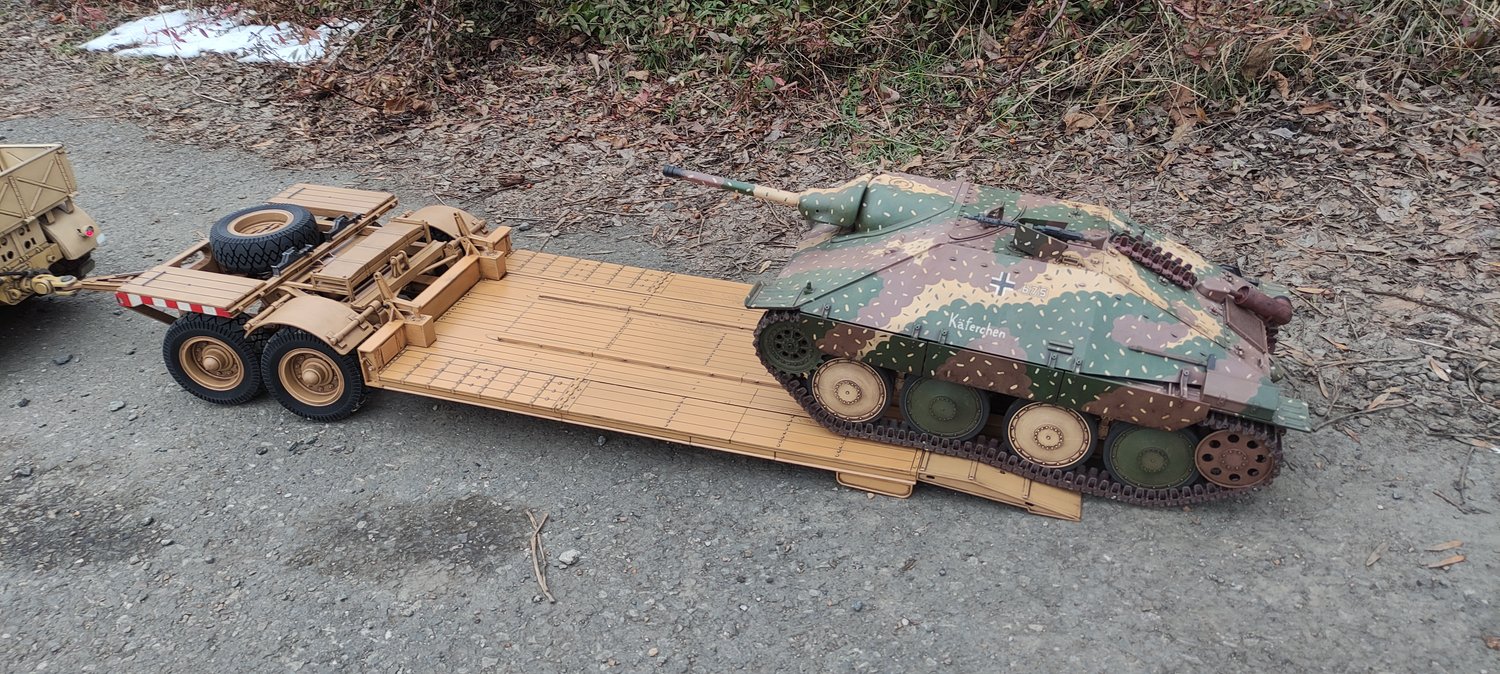

For loading or unloading an armoured vehicle, the platform had to be lowered and the rear bogie had to be removed. Although the payload was specified as 22/23 tons, heavier loads up to 28 tons were sometimes transported with the Sd. Ah. 116.

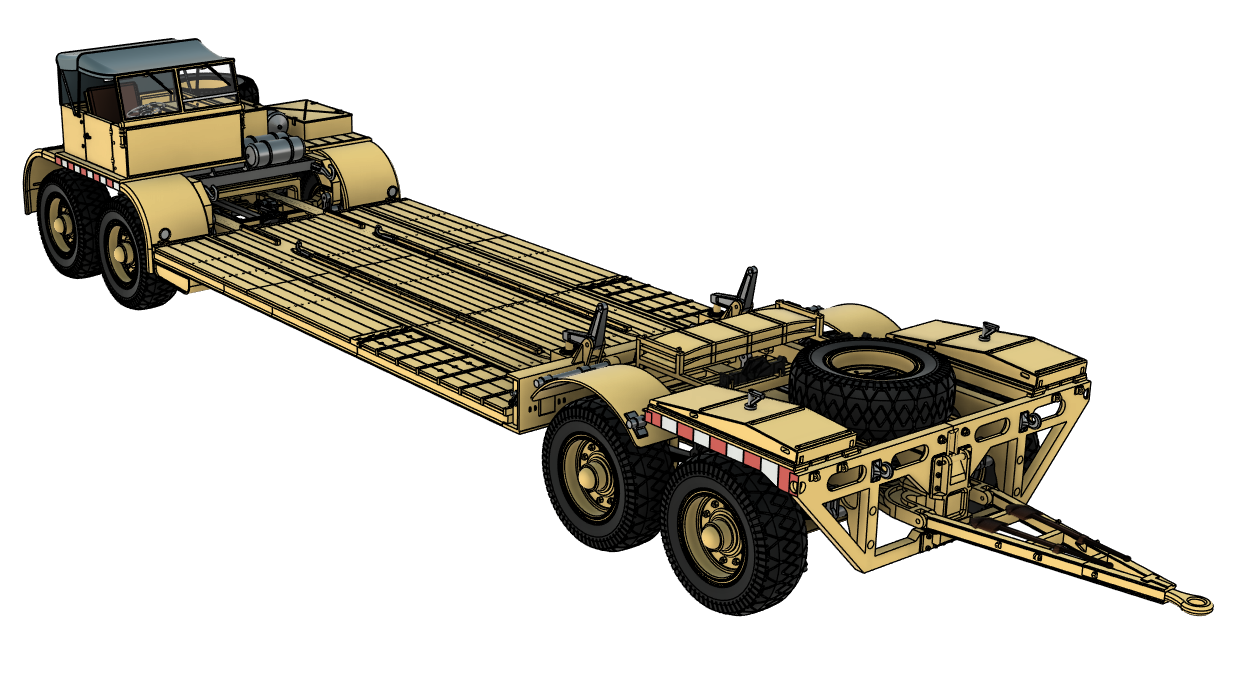

The Sd. Ah. 116 had a total length of 14.4 meters and a width of 3 meters. The whole train had a considerable length which demanded a high grade of expertise from the drivers.

Lenght: 1410mm

Width: 300mm

Height: 258mm

Weight: approx 3kg

Detailed, full of functions and easy to build (print).

Functional suspension.

Both front and rear bogie steering.

Detachable both front and rear bogie.

Functional barrel recoil.

Capable of carrying a load up to 5kg.

Printed tyres.

The steering of both bogies is mechanical so no electronics are required for the trailer to function properly.

The model contains everything what you need to print and build the vehicle

STL files for every printed part, assembly guide and shopping list (screws, bearings and other...)

Shopping list:

Screw M2x6 – 54x

Screw M3x10 – 144x

Screw M3x14 – 8x

Screw M3x20 – 48x

Rubber band – 4x

Bearing 15x21x4 – 16x

Steel wire 2mm (e.g. welding rod for autogenous/TIG welding) – 300mm alternatively you can use pieces of filament

Carbon / fiberglass stripe 3x12x1000 – 2x

Glue

Whole model is designed for FDM printers only.

If you have any questions please do not hesitate to send me an email.

I have spent a lot of time developing this model.

Please, dont share this STLs, it will affect my next releases.

Thank you very much.

3D printing settings

Nozzle size: 0,4mm

Layer height: 0,2mm

Infill: 40%

Perimeters:

Steering arms and rods – 6

Everything else – 3

Material: PLA HT/PETG

Material for tires: TPU/TPE

Print settings for tires:

Perimeters: 2

Top layers: 5

Bottom layers: 5

Infill pattern: Gyroid

Infill density: 5%

Supports: On

Most parts do not require supports.

Parts that do need them have „support“ in the name.
