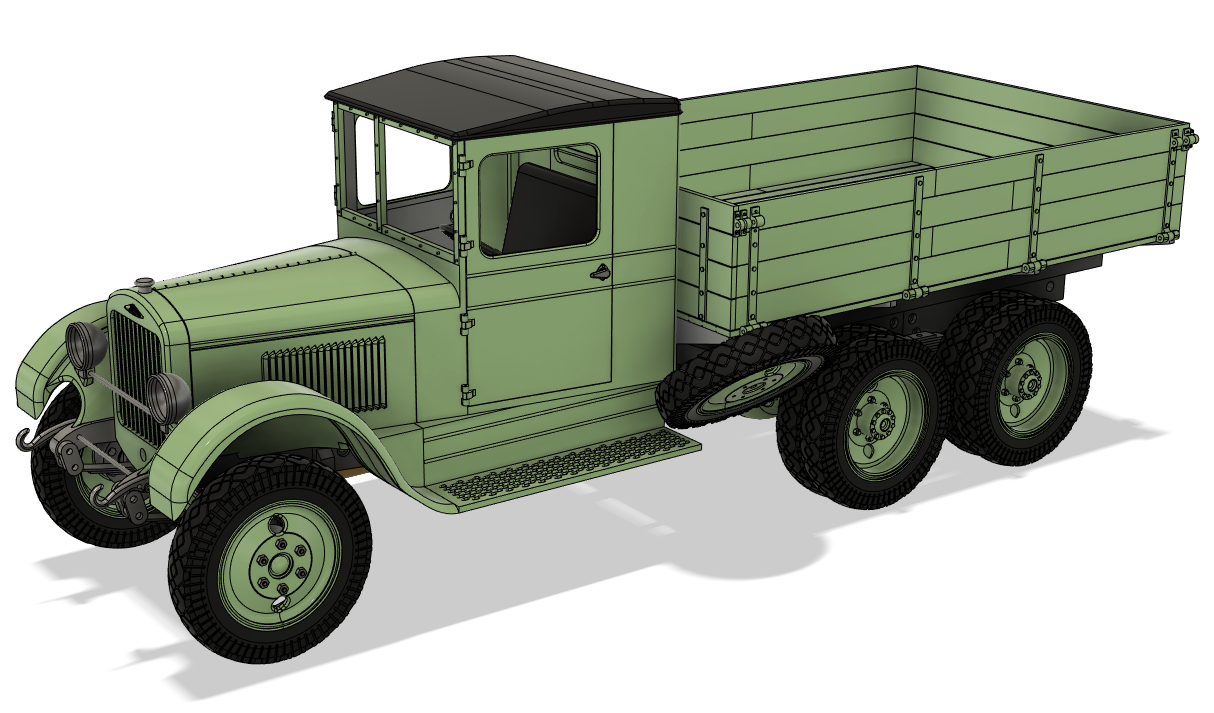

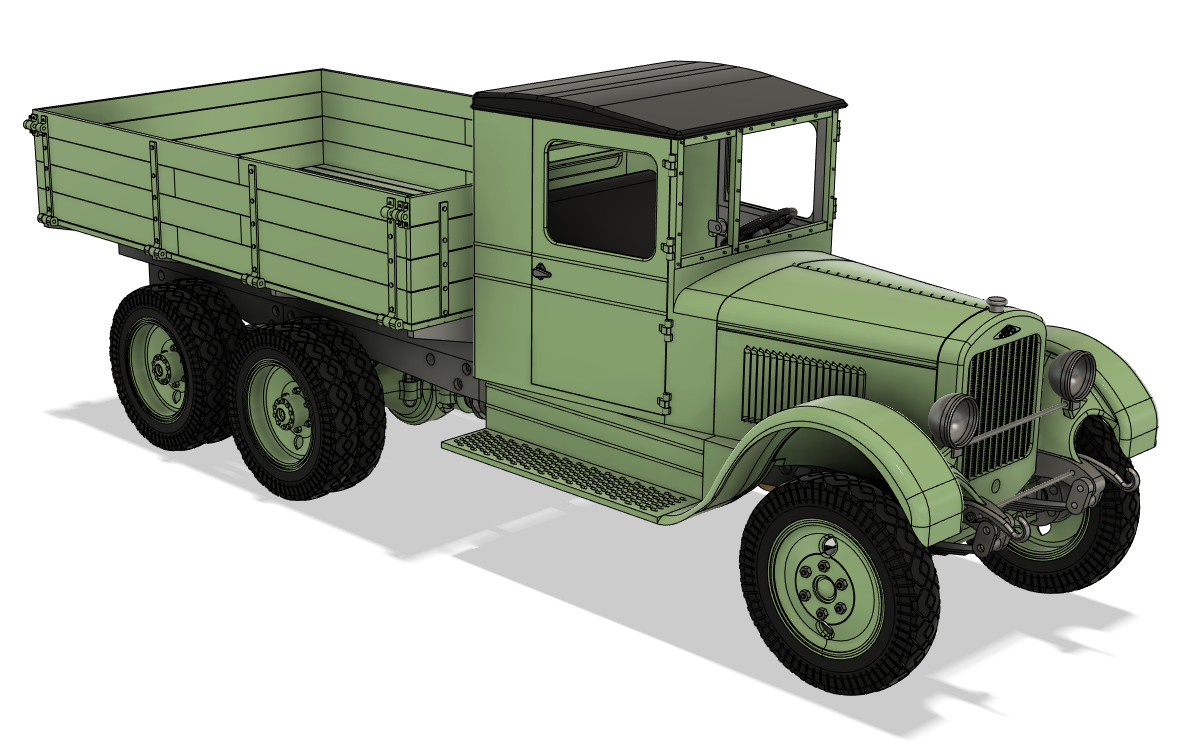

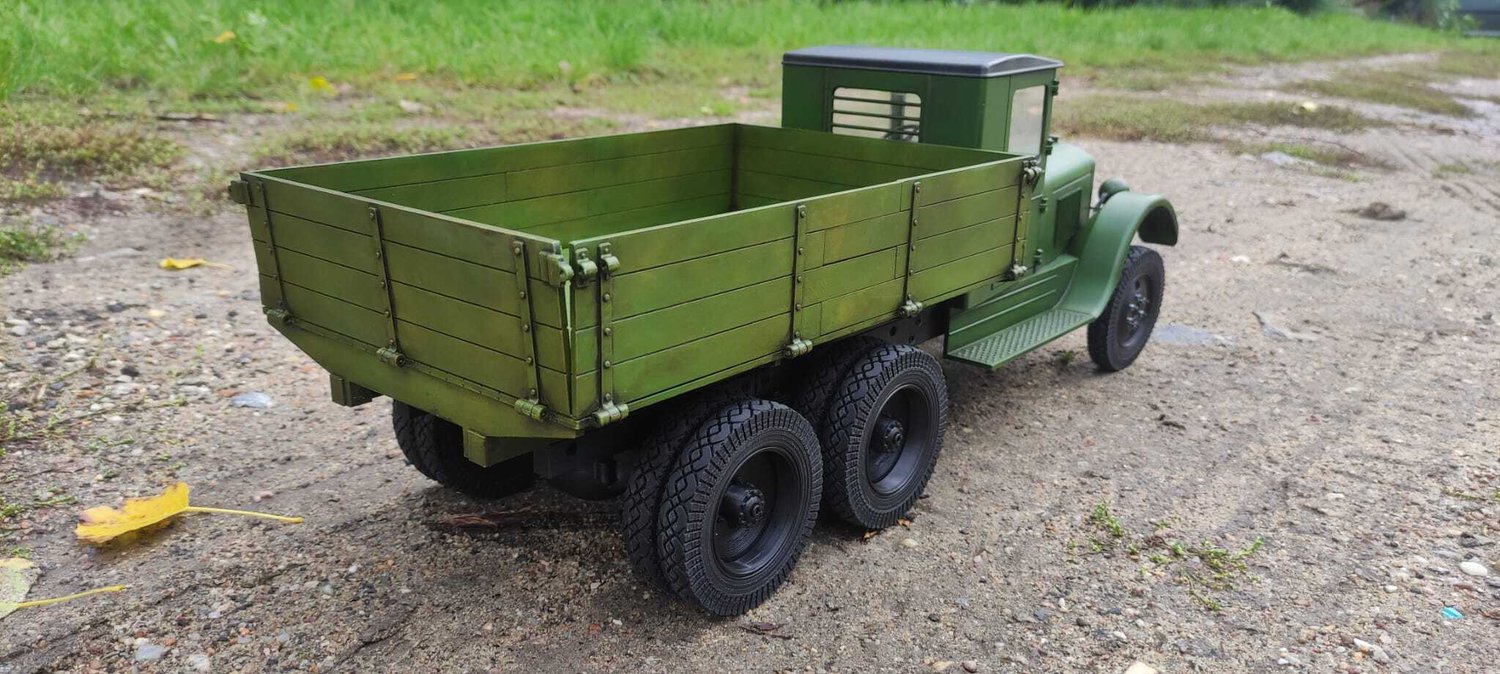

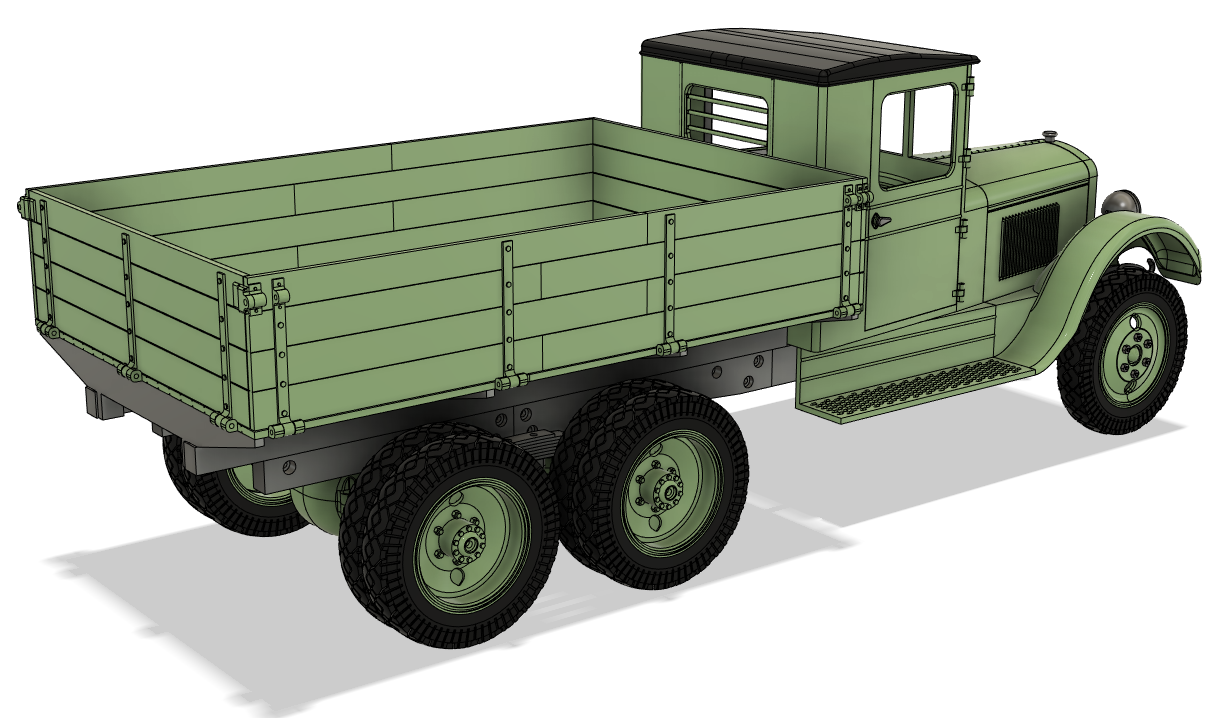

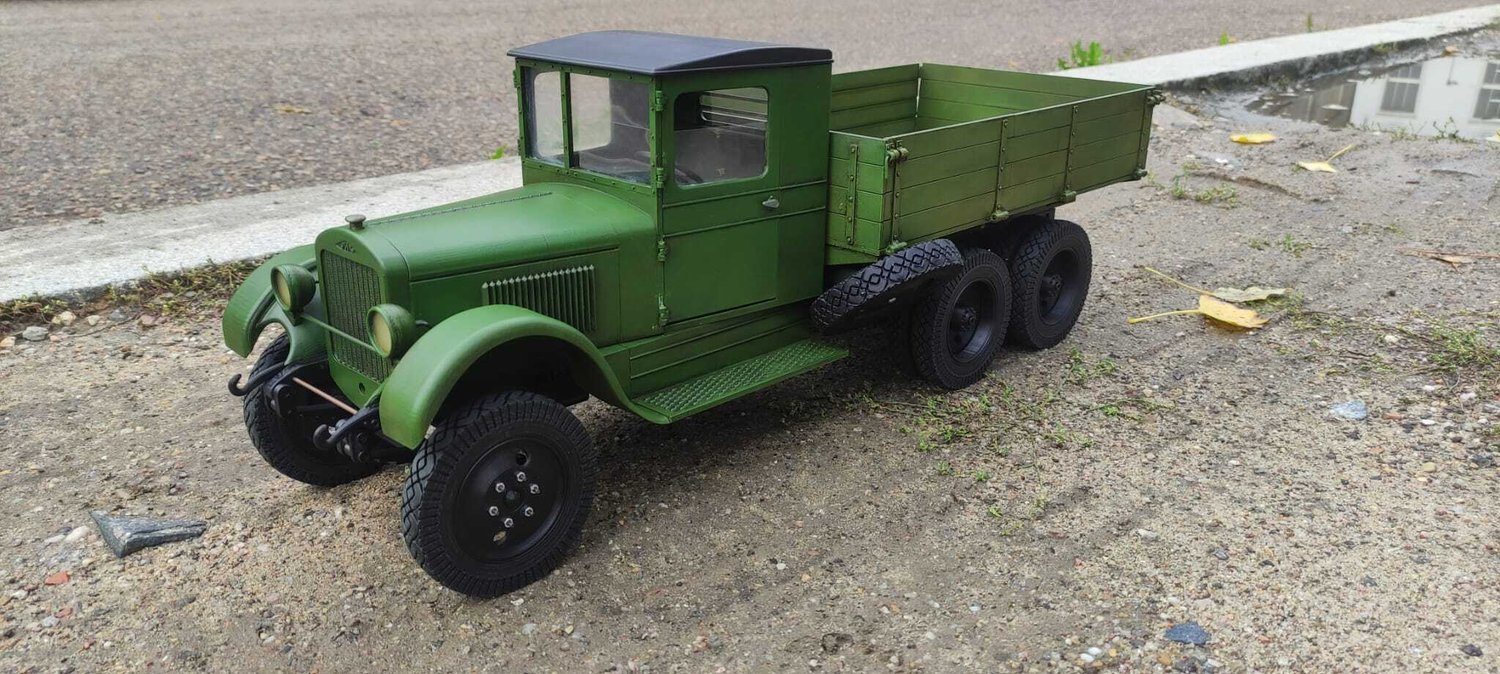

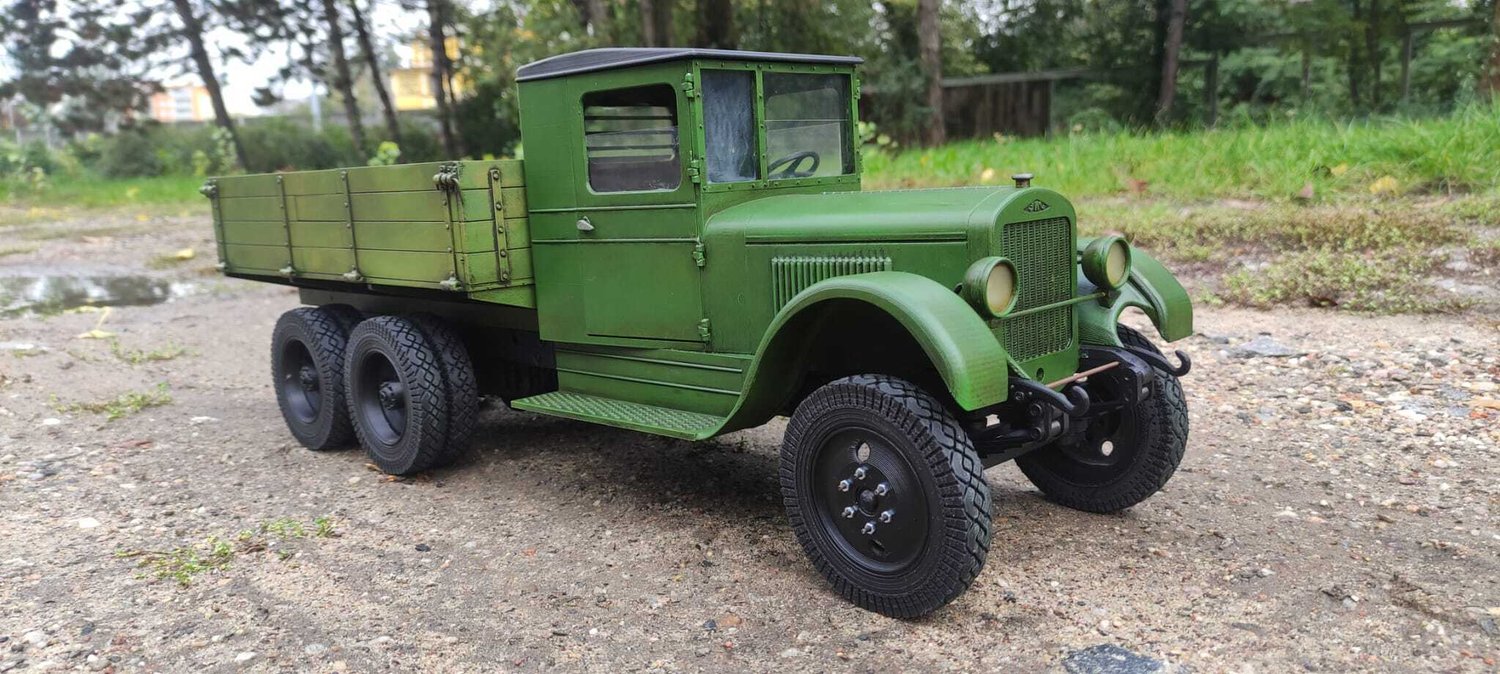

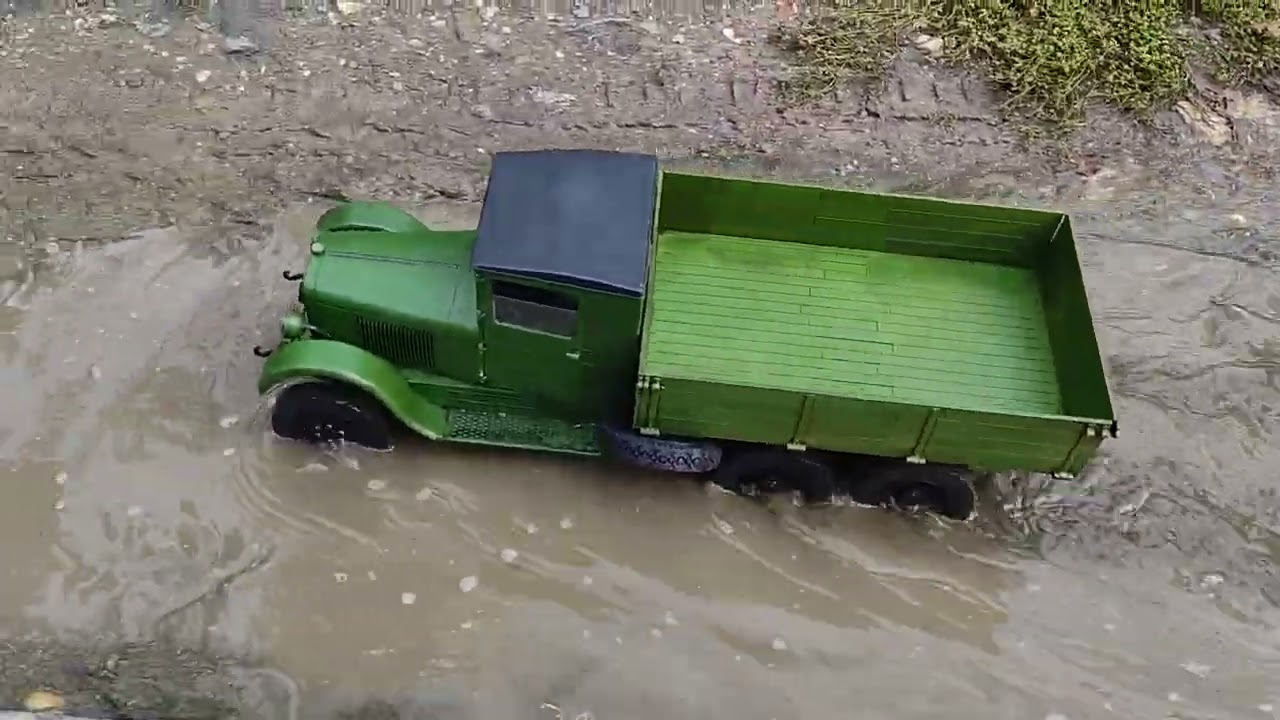

1/10 ZiS-6 6x4 cargo truck RC model
Fully 3D printable soviet ZiS-6 6x4 cargo truck in scale 1/10.
6x4 drive.
The ZIS-6 (Russian: ЗИС-6) is a Soviet general-purpose 6×4 army cargo truck, a three-axle version of the ZIS-5 two-axle truck. Prototypes were made in 1931, serial production started in 1933, lasted until October 1941 at the Moscow Zavod imeni Stalina factory and a total of 21,239 units were produced. The ZIS-6 had a payload capacity of 4,000 kg (8,818 lb) and 2,500 kg (5,512 lb) on unpaved roads.
A reliable truck, it served as a base for the creation of a number of specialized military modifications -- searchlight truck, radio and radio repair station, mobile field workshop, supply delivering vehicle, troops moving vehicle, and as an artillery towing vehicle -- but is best known for its role as the first multiple rocket launcher (Katyusha) in July 1941.
Lenght: 610mm
Width: 220mm
Height: 220mm
Weight: approx 2 kg
Detailed and easy to build (print).

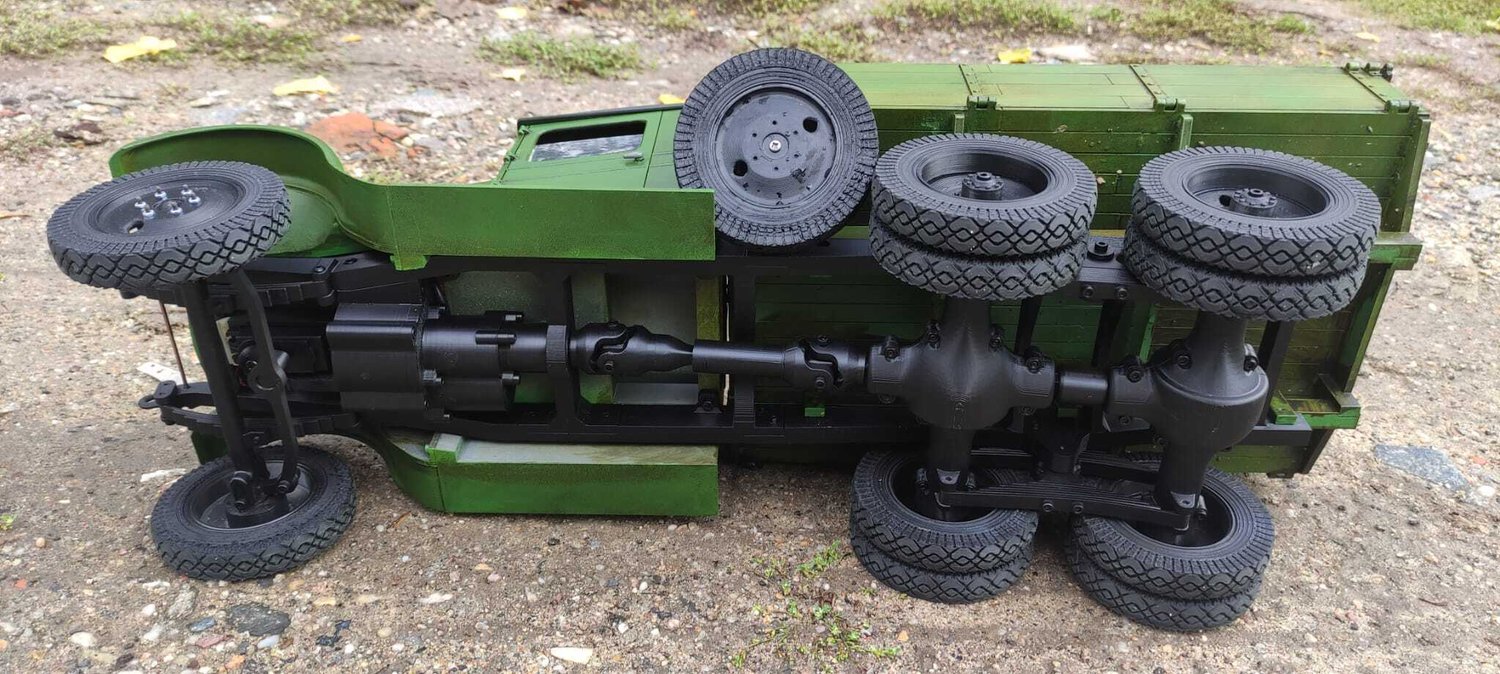

Rear wheels drive.
Leaf spring suspension.
Functional headlights.
Printed tires.

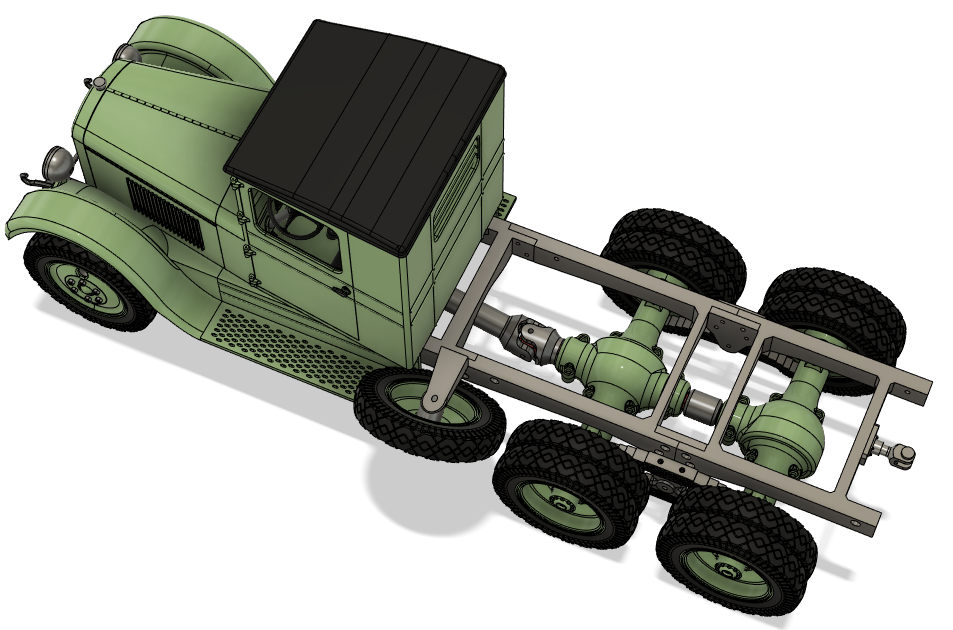

Easy access to the transmission for maintenance.
The model contains everything what you need to print and build the vehicle:
STL files for every printed part, assembly guide and shopping list (screws, motors, servos....)
Shopping list:
• Screw M2x8 – 12x
• Screw M3x6 – 3x
• Screw M3x10 – 109x
• Screw M3x16 – 18x
• Screw M3x20 – 8x
• Nut M2 – 12x
• Nut M3 – 22x
• Motor 540 – 1x
• Bearing 10x15x4 – 23x
• Bearing 15x21x4 – 5x
• Belt 60XL 6,35mm – 2x
• Steel rod 2mm (e.g welding rod for autogenous welding) approx 40cm
alternatively you can use pieces of filament
• Steel wire 1mm - approx 10cm
• Transparent foil
• 5mm warm white LED – 2x
• Standard servo 180° (for steering) - 1x
• Glue
If you have any questions please do not hesitate to send me an email.
I have spent a lot of time developing this model.
Please, dont share this STLs, it will affect my next releases.
Thank you very much.
3D printing settings
Whole model is designed for FDM printers only.
'Recommended bed size: 220x200mm
Nozzle size: 0,4mm
Layer height: 0,2mm
Infill: 40%
Perimeters: 3
Material: PLA/PETG
Material for gears,
suspension and shafts:
PC/PET-G
Material for tires: TPE/FLEX
Most parts do not require
supports. Parts that do need
them have „support“ in the
name.
