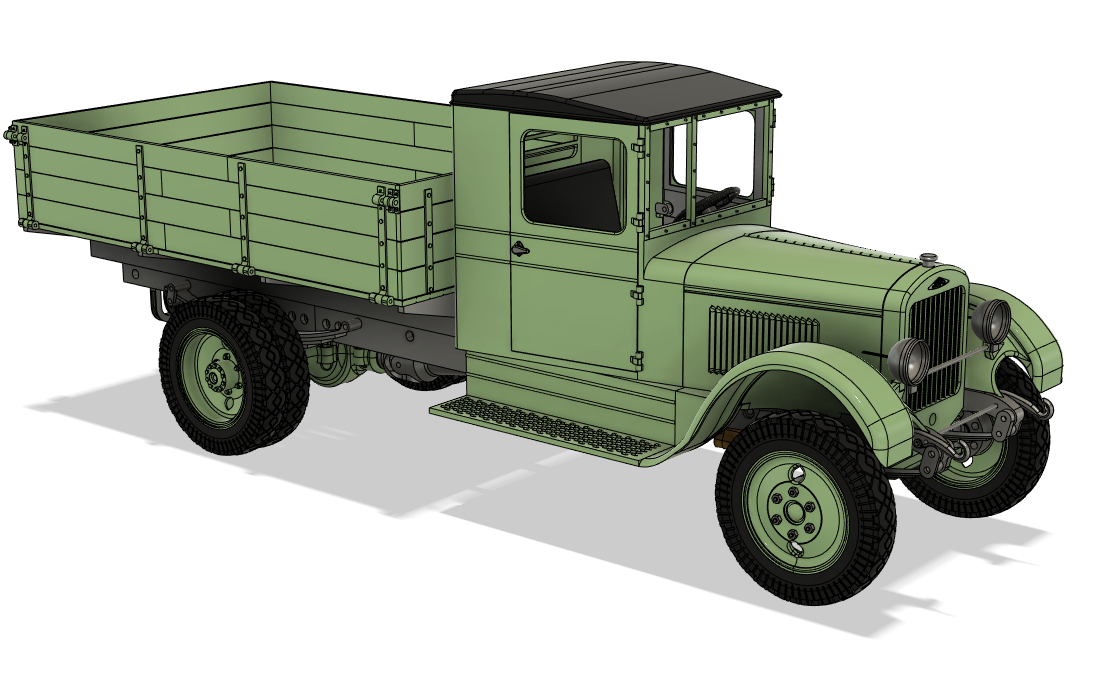

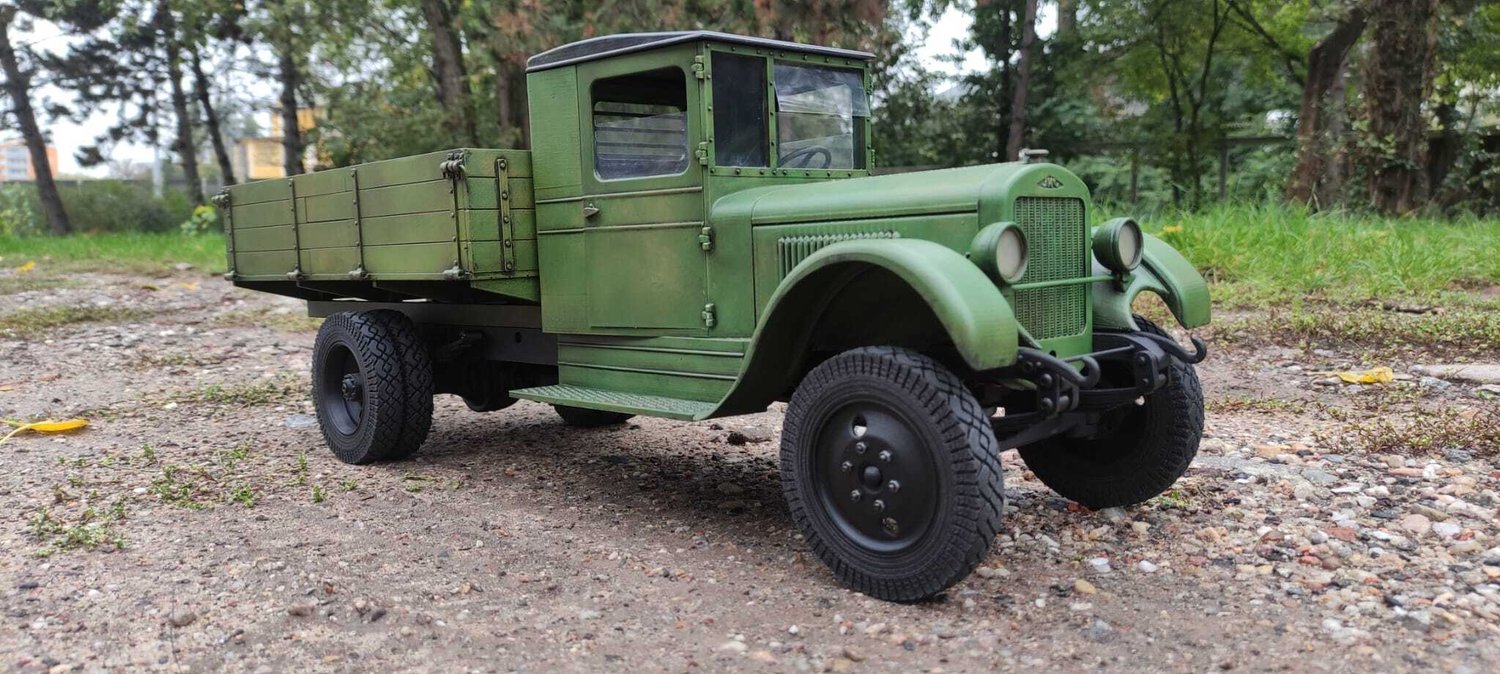

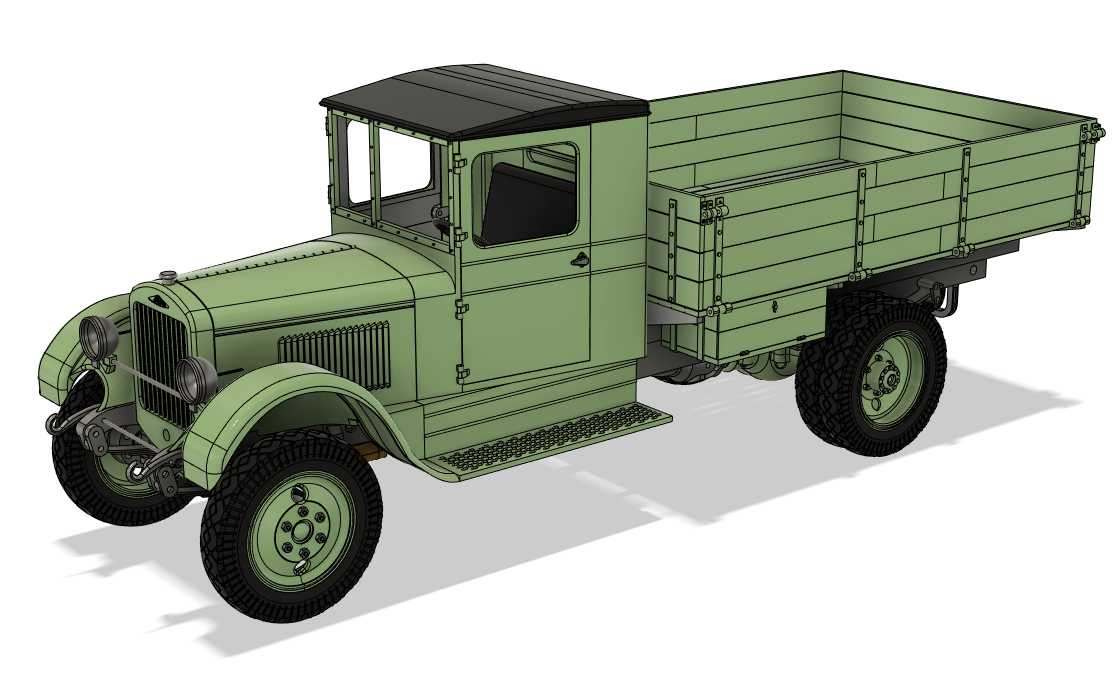

1/10 ZiS-5 cargo truck RC model

Fully 3D printable soviet ZiS-5 cargo truck in scale 1/10.

Rear whell drive.

The legendary ZIS-5 (Russian: ЗИС-5) was a 4x2 Soviet truck produced by Moscow ZIS factory from 1932 to 1948 (first one made at the end of 1930). It became the draft horse of the eastern front during WW2.

In 1931, Moscow Avtomobilnoe Moskovskoe Obshchestvo (AMO, Russian Автомобильное Московское Общество (АМО) — Moscow Automotive Enterprise) truck plant was re-equipped and expanded with the help of the American A.J. Brandt Co., and began to produce a new truck with designation of AMO-2.

However, the AMO-2 was not an original development but instead was based on the Autocar Dispatch SD truck, after a license agreement with the Autocar Company. Some time later, the AMO-2 was modernized and improved, being renamed the AMO-3. In 1933 AMO was rebuilt again and renamed into Factory No. 2 Zavod Imeni Stalina (or Plant of Stalin's name, abbreviated in ZIS or ZiS) and in Summer, the AMO-3 was rebranded the ZiS-5.

There where also produced plenty of various utility vehicles based on ZiS-5 chassis (eg. field kitchens, field workshops, ambulances, staff and command vehicles, fuel tankers and much more).

The ZIS-5 showed remarkable service on the "Road of Life", the only supply line to the besieged city of Leningrad, opened on the frozen surface of the Ladoga Lake in the winter months during 1941–1944.

The production ended with approx 1 million of ZiS-5 trucks of all variants manufactured.

Lenght: 610mm

Width: 220mm

Height: 220mm

Weight: approx 2 kg

Detailed and easy to build (print).

Rear wheel drive.

Leaf spring suspension.

Functional headlights.

Printed tires.

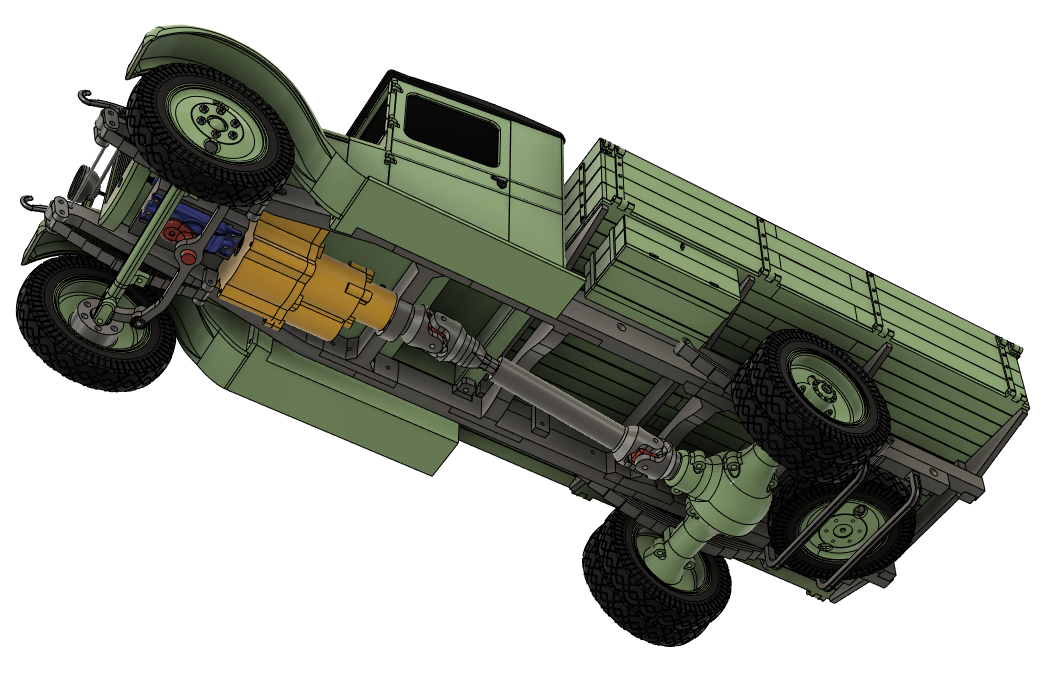

Easy access to the transmission for maintenance.

The model contains everything what you need to print and build the vehicle:

STL files for every printed part, assembly guide and shopping list (screws, motors, servos....)

Shopping list:

• Screw M2x8 – 12x

• Screw M3x6 – 3x

• Screw M3x10 – 84x

• Screw M3x16 – 10x

• Screw M3x20 – 11x

• Nut M2 – 12x

• Nut M3 – 10x

• Motor 540 – 1x

• Bearing 10x15x4 – 17x

• Bearing 15x21x4 – 3x

• Belt 60XL 6,35mm – 2x

• Steel rod 2mm (e.g welding rod for autogenous welding) approx 40cm

alternatively you can use pieces of filament

• Steel wire 1mm - approx 10cm

• Transparent foil

• 5mm warm white LED – 2x

• Standard servo 180° (for steering) - 1x

• Glue

If you have any questions please do not hesitate to send me an email.

I have spent a lot of time developing this model.

Please, dont share this STLs, it will affect my next releases.

Thank you very much.

3D printing settings

Whole model is designed for FDM printers only.

'Recommended bed size: 220x200mm

Nozzle size: 0,4mm

Layer height: 0,2mm

Infill: 40%

Perimeters: 3

Material: PLA/PETG

Material for gears,

suspension and shafts:

PC/PET-G

Material for tires: TPE/FLEX

Most parts do not require

supports. Parts that do need

them have „support“ in the

name.
