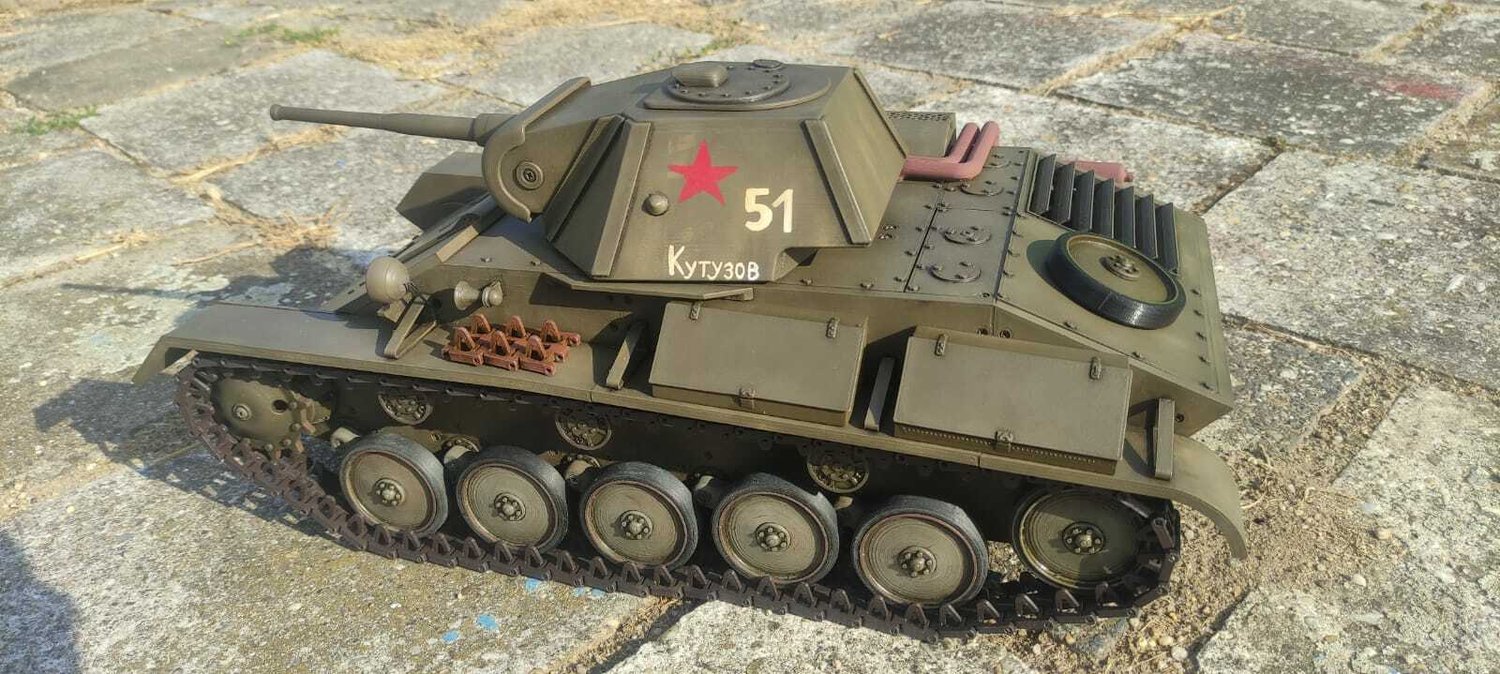

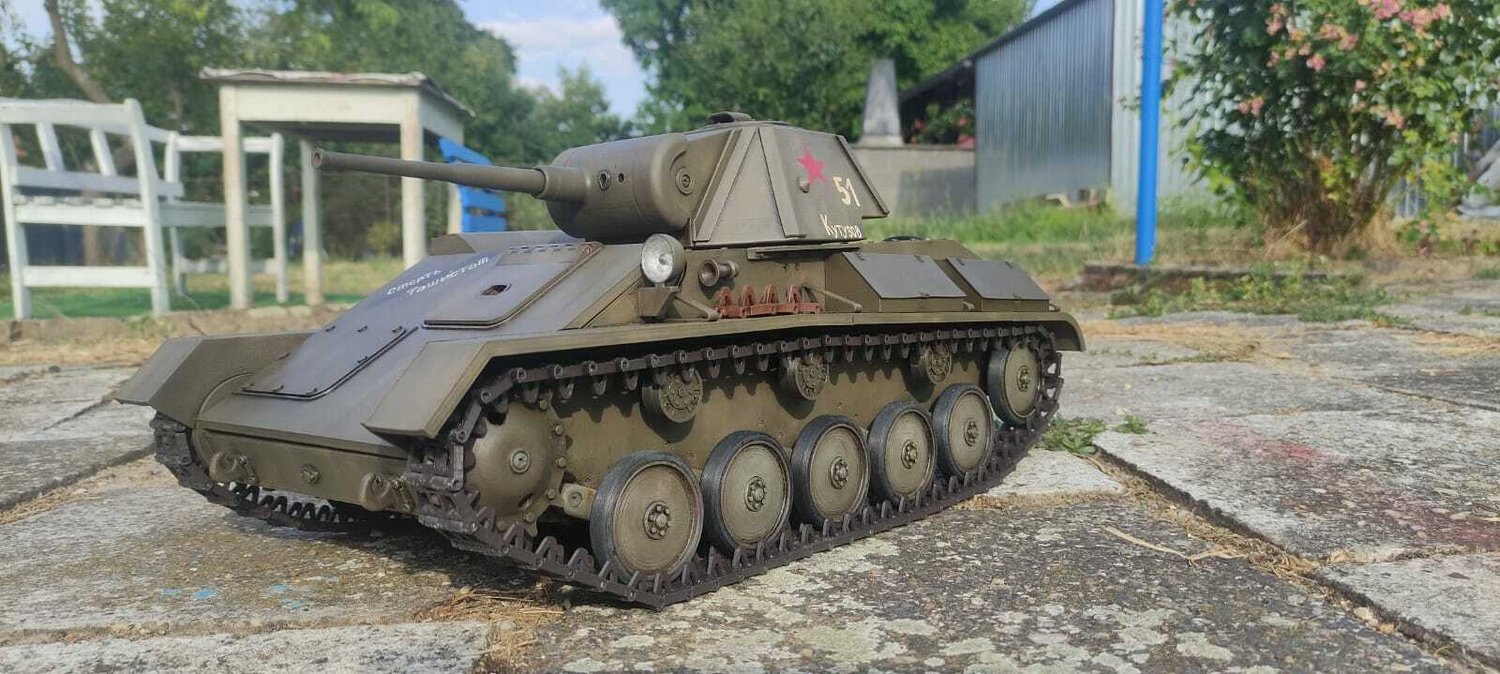

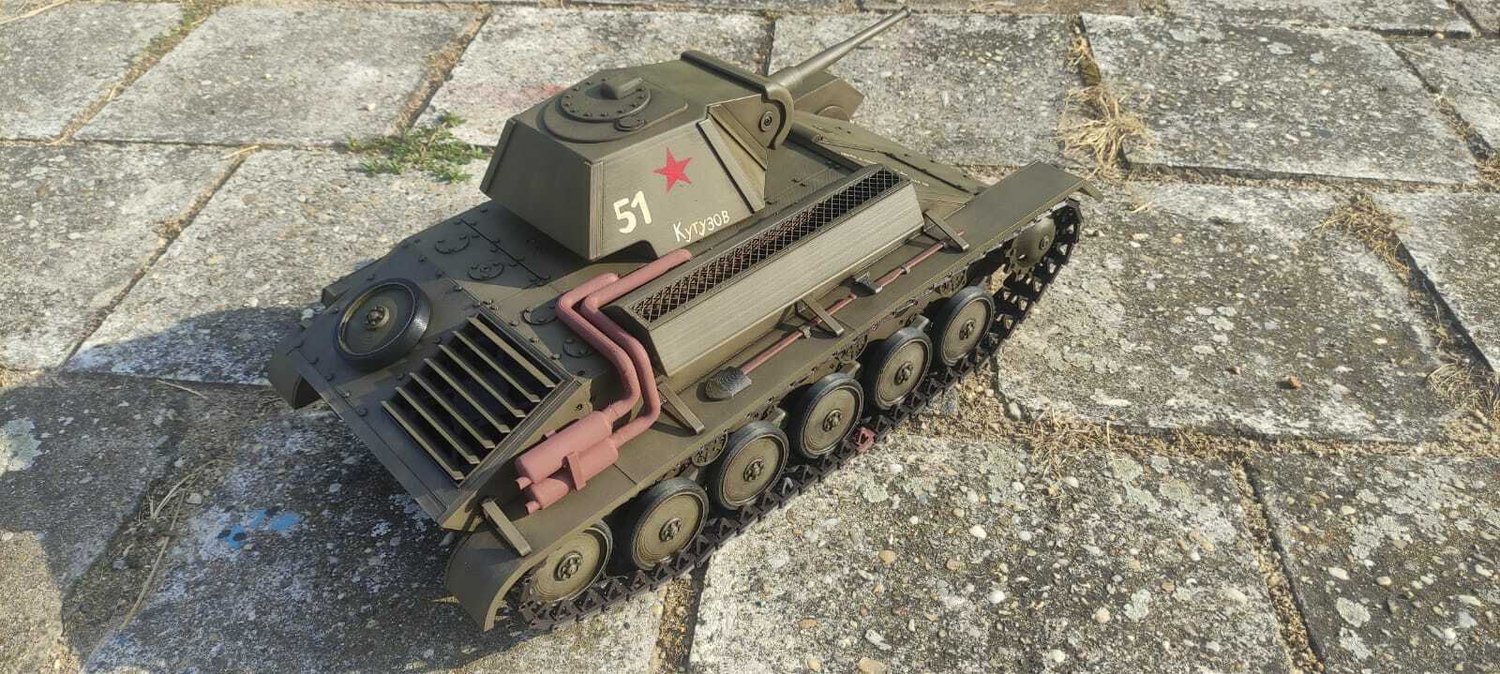

1/10 T-70M light tank RC model

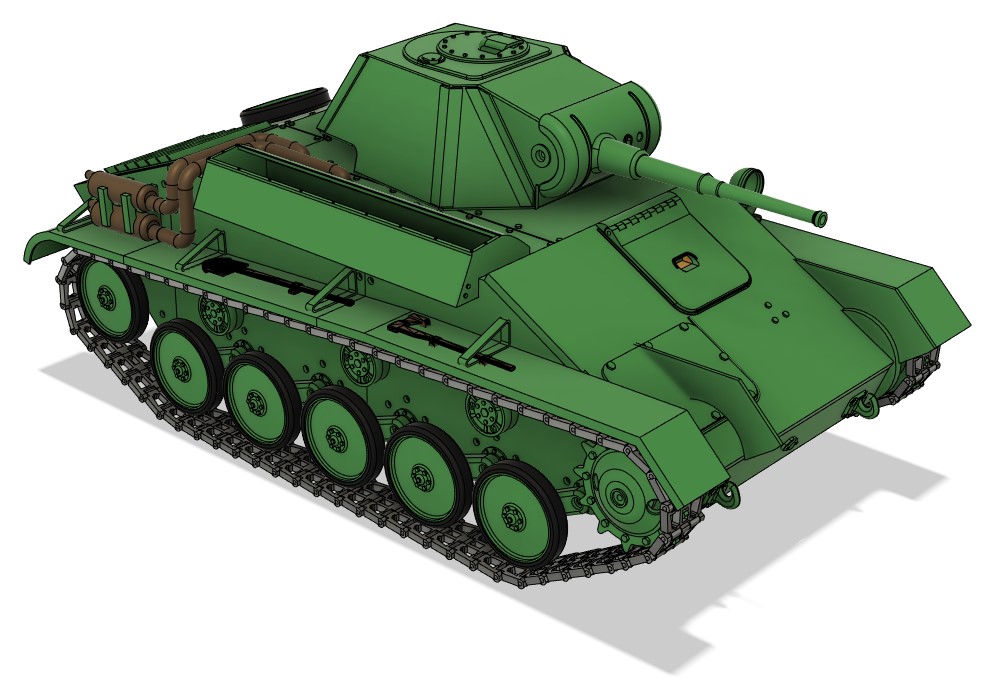

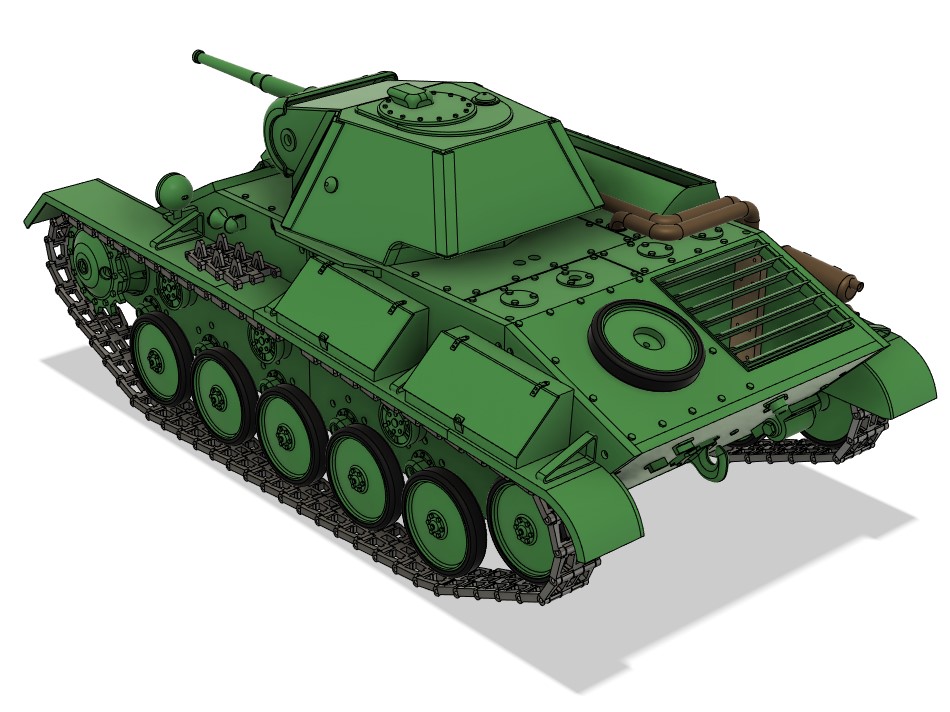

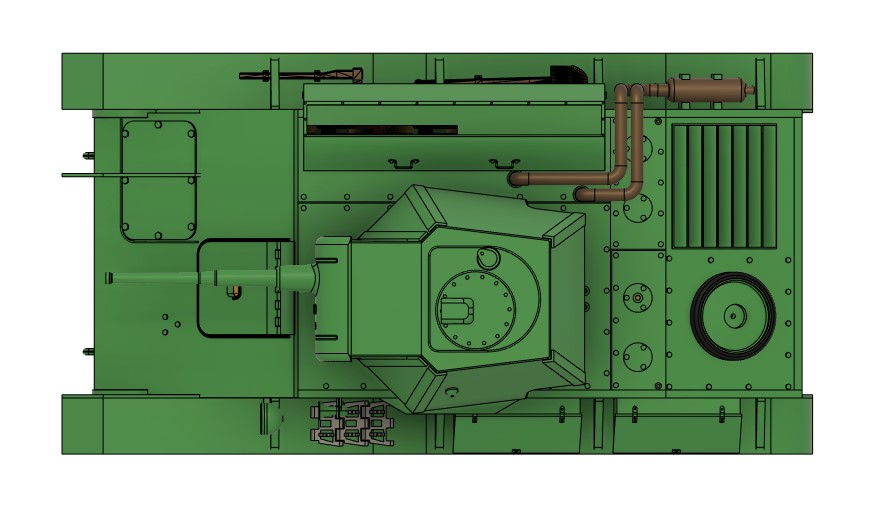

Fully 3D printable soviet T-70M light tank in scale 1/10
The T-70 is a light tank used by the Red Army during World War II, replacing both the T-60 scout tank for reconnaissance and the T-50 light infantry tank for infantry support.
The T-70 was designed by Nicholas Astrov's design team at Factory No. 38 in Kirov.
The first batch of T-70s were built with a GAZ-202 automotive engine on each side of the hull, one driving each track. This arrangement proved to be a serious problem, even before the first tanks were issued. It was quickly redesigned as the T-70M, with the engines in-line on the right side of the tank and a normal transmission and differential. The conical turret was replaced by one more easily welded out of plate armour, and moved to the left side of the hull.
Lenght: 470mm
Width: 250mm
Height: 245mm
Weight: approx 3 kg
Detailed, full of functions and easy to build (print).
Functional suspension.
Functional turret traverse.
Functional cannon lifting
Adjustable track tension
Functional Headlight.
Printed tracks.
Printed transmissions.

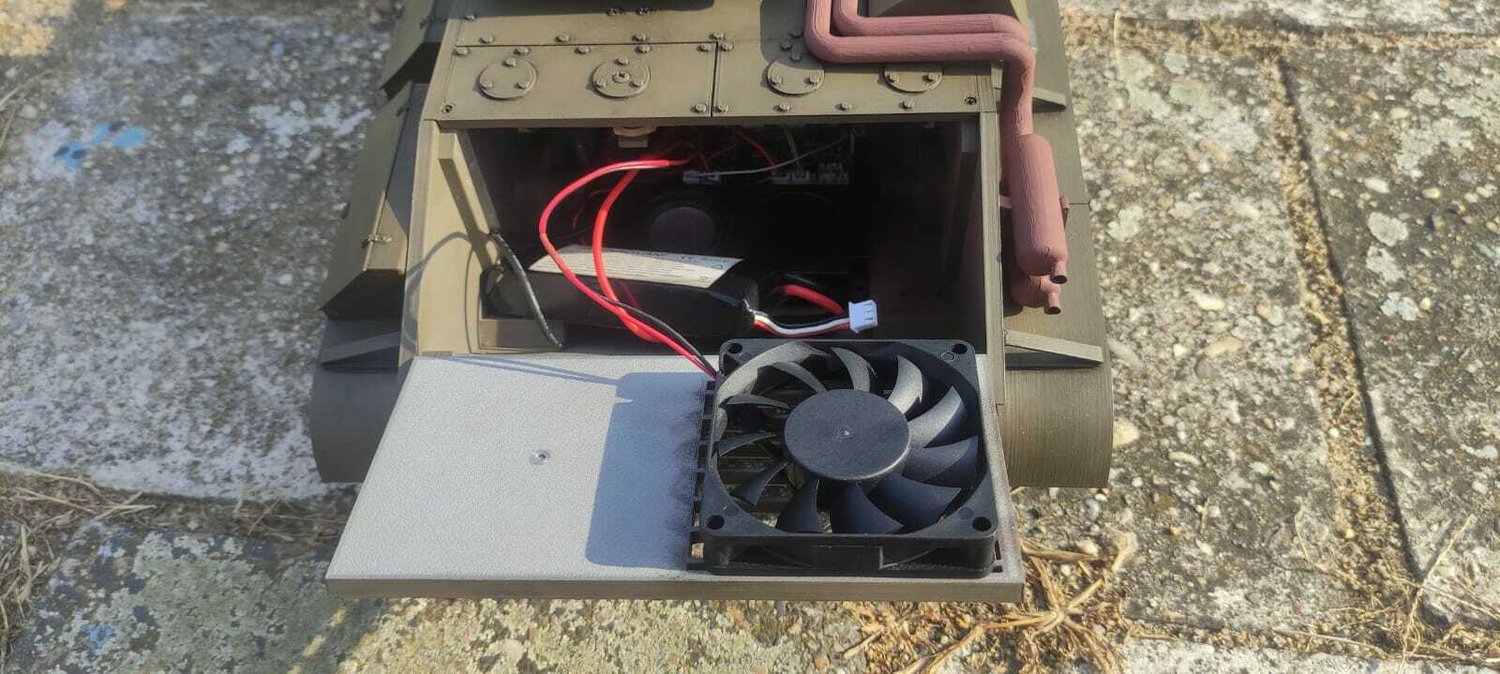

Easy access to the transmissions for maintenance.
Tank can be equipped with various electronics and functions.
It is up to you how much you would like to use all the options.

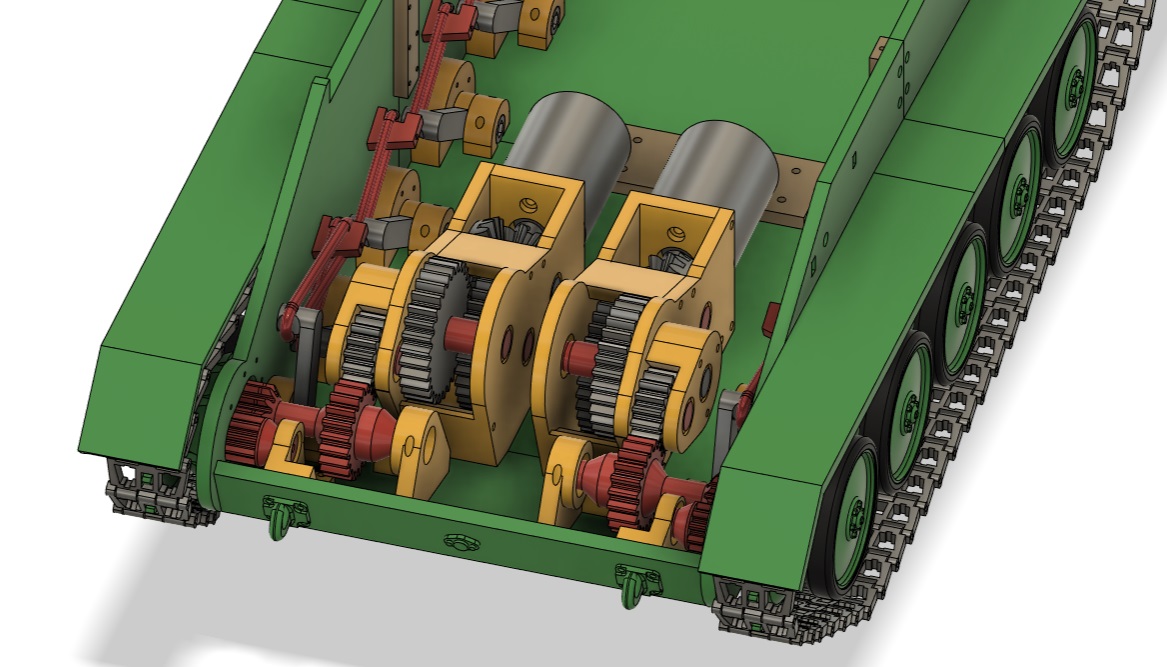

Tank uses two separate transmissions for movement.
The model contains everything what you need to print and build the tank:
STL files for every printed part, assembly guide and shopping list (screws, motors, servos....)
Shopping list:
Screw M3x10 – 120x
• Screw M2x8 – 109x
• Screw M2x10 – 10x
• Nut M3 – 10x
• Screw M3x40 – 10x
• Screw M3x15 – 4x
• Screw M3x12 – 10x
• Socket set screw M3x4 – 2x
• Screw M3x6 – 3x
• Motor 540 – 2x
• Rubber band – 11x
• Bearing 10x15x4 – 40x
• Steel rod 2mm (e.g. welding rod for autogenous welding) – 4m
alternatively you can use pieces of filament
• Standard servo 360° (for turret turning) - 1x
• Standard servo 180° or 360° (for cannon lifting) - 1x
• Glue
Whole model is designed for FDM printers only.
If you have any questions please do not hesitate to send me an email.
I have spent a lot of time developing this model.
Please, dont share this STLs, it will affect my next releases.
Thank you very much.
3D printing settings
Whole model is designed for FDM printers only.
Bed size: 200x200mm
Nozzle size: 0,4mm
Layer height: 0,2mm
Infill: 40%
Perimeters: 3
Material: PLA
Material for tracks: PETG
Material for wheel bandages: Flex, TPU (optional)
Most parts do not require supports. Parts that do need them have „support“ in the name.
