1/10 RC Soviet BRDM-2 armored ambhipious vehicle

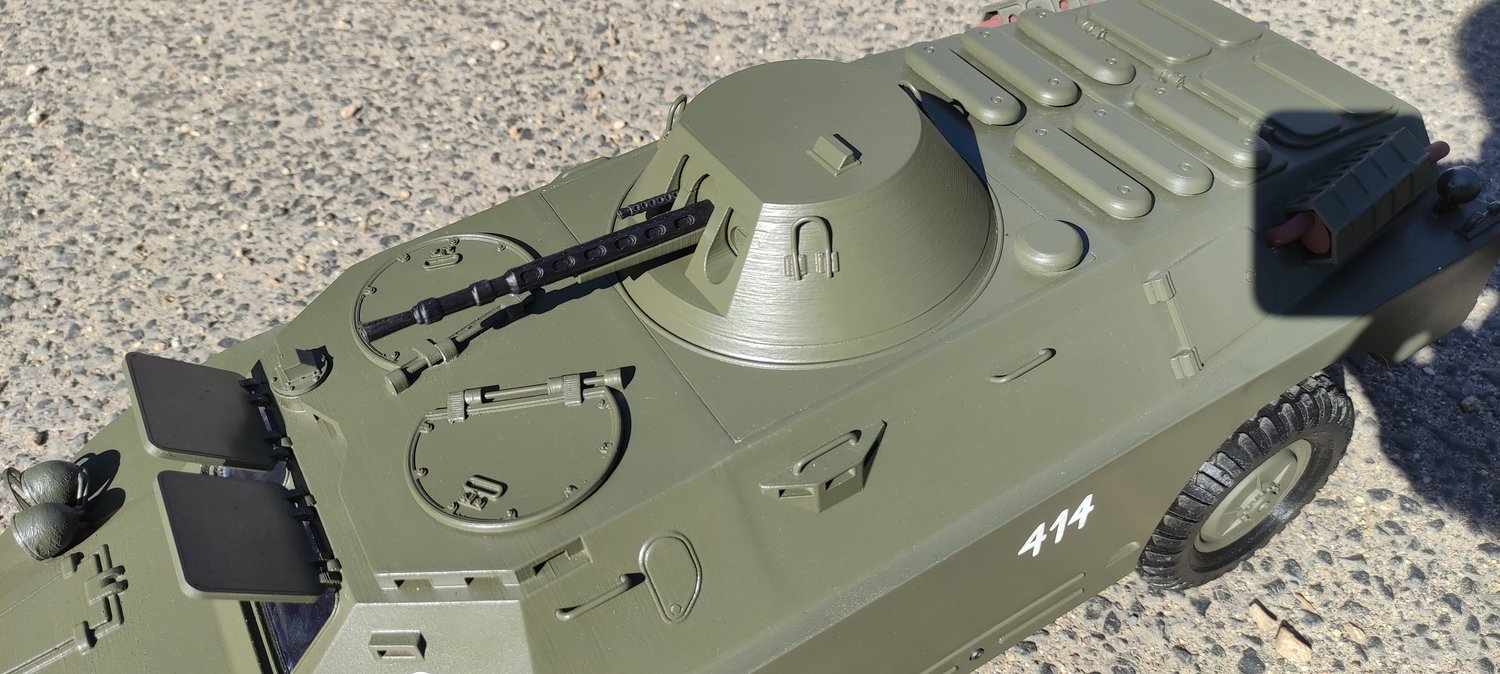

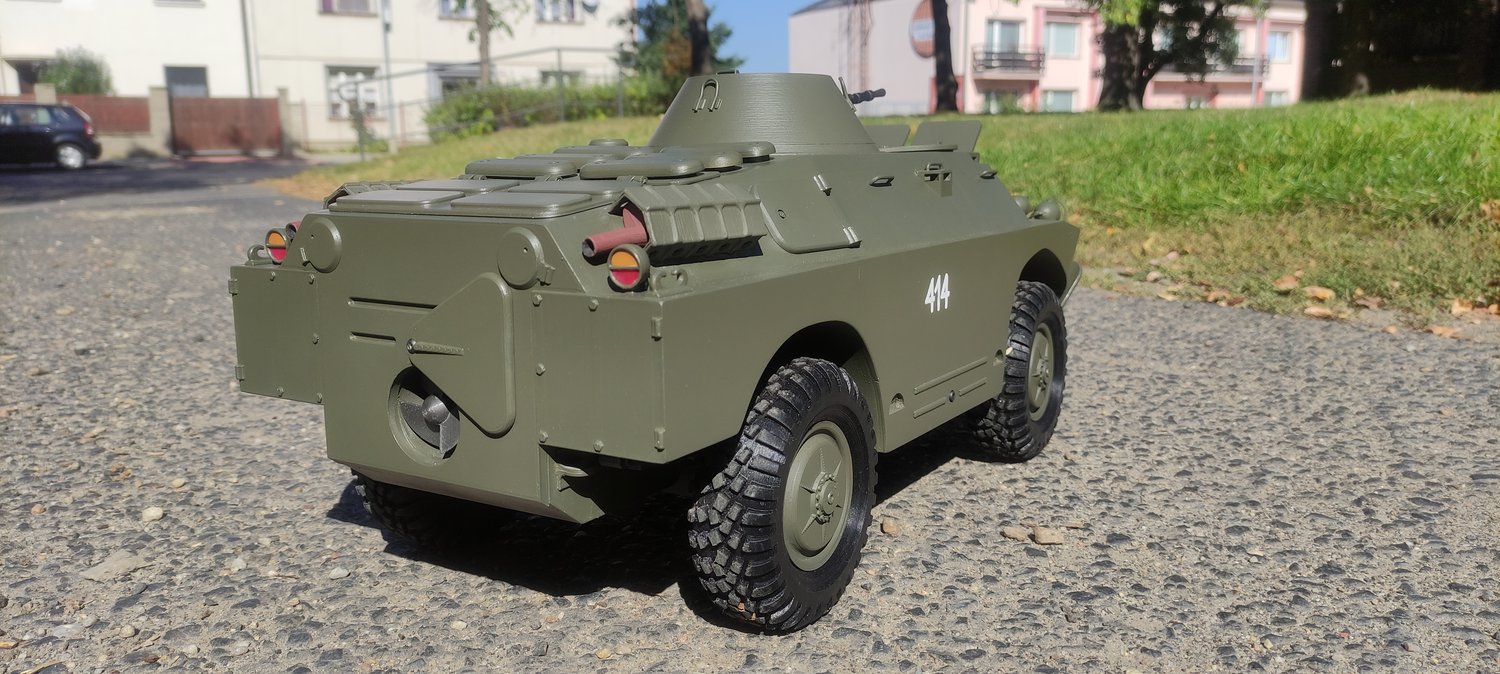

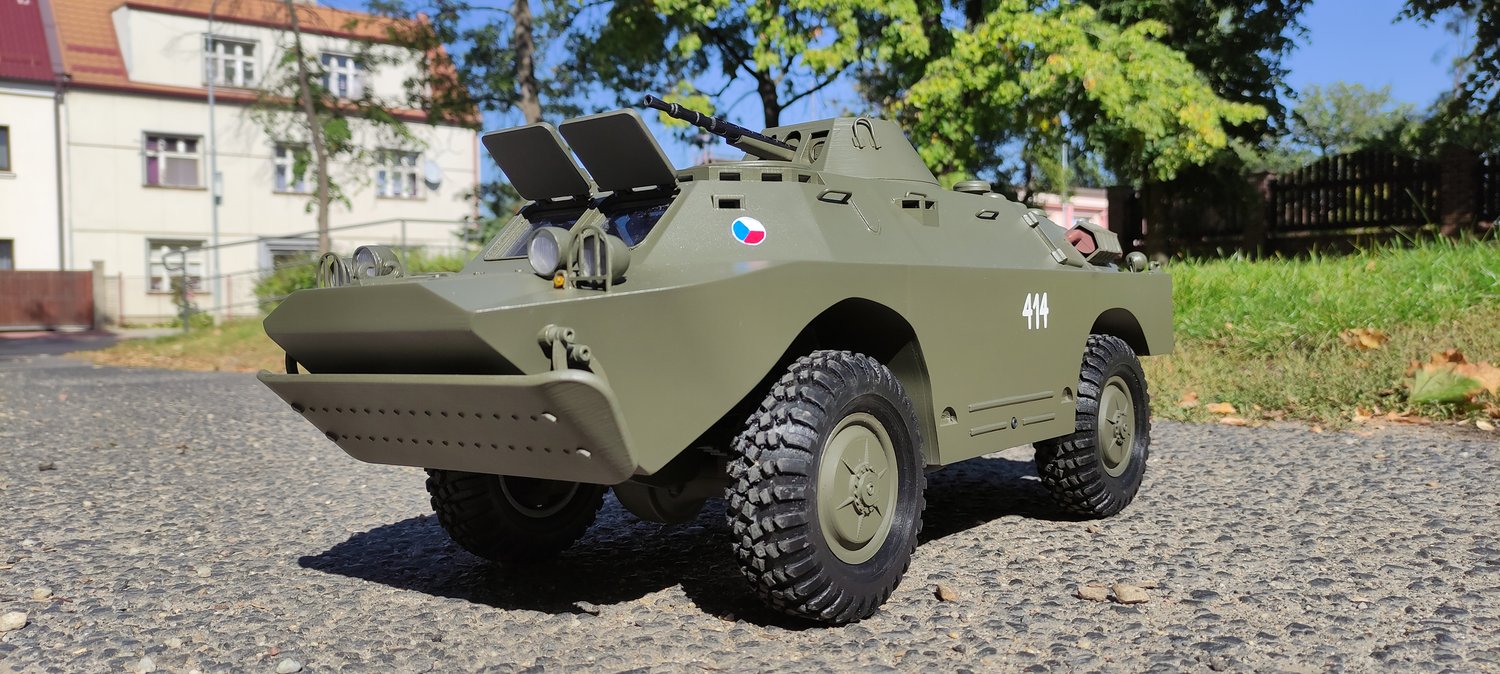

Fully 3D printable soviet BRDM-2 armored vehicle in scale 1/10.
With 4-Wheel drive (AWD).

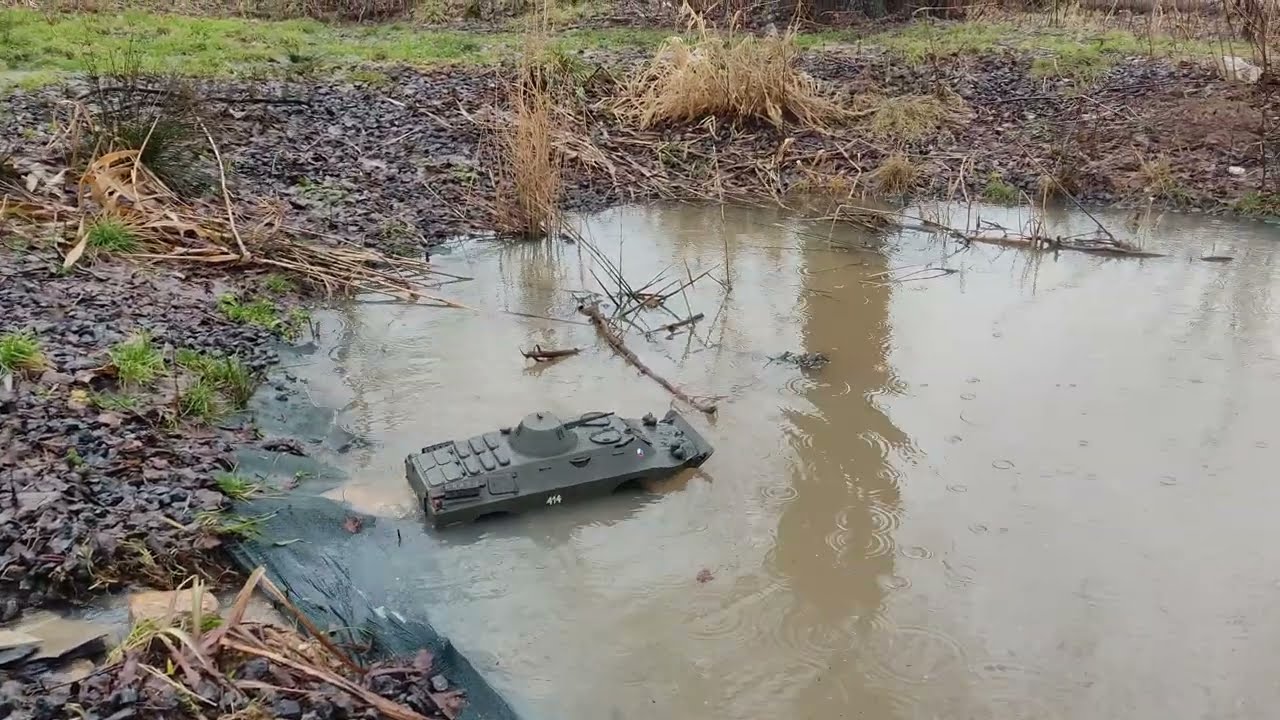

Fully ambhipious.
Two optional modifications:

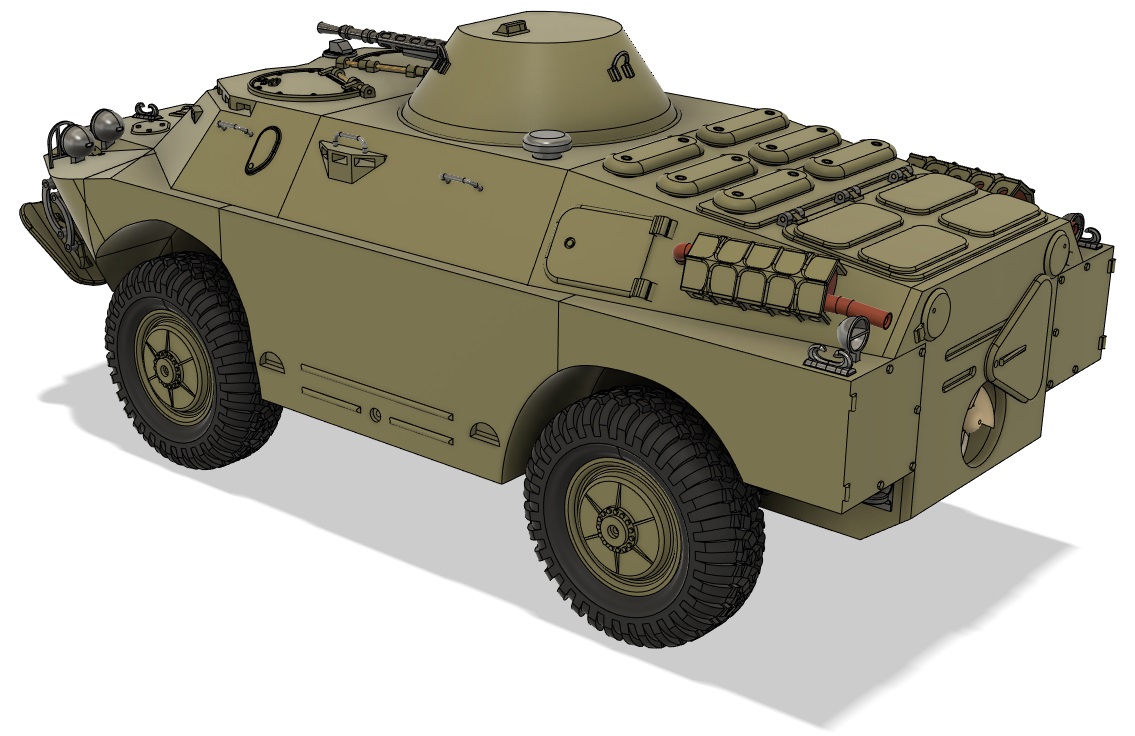

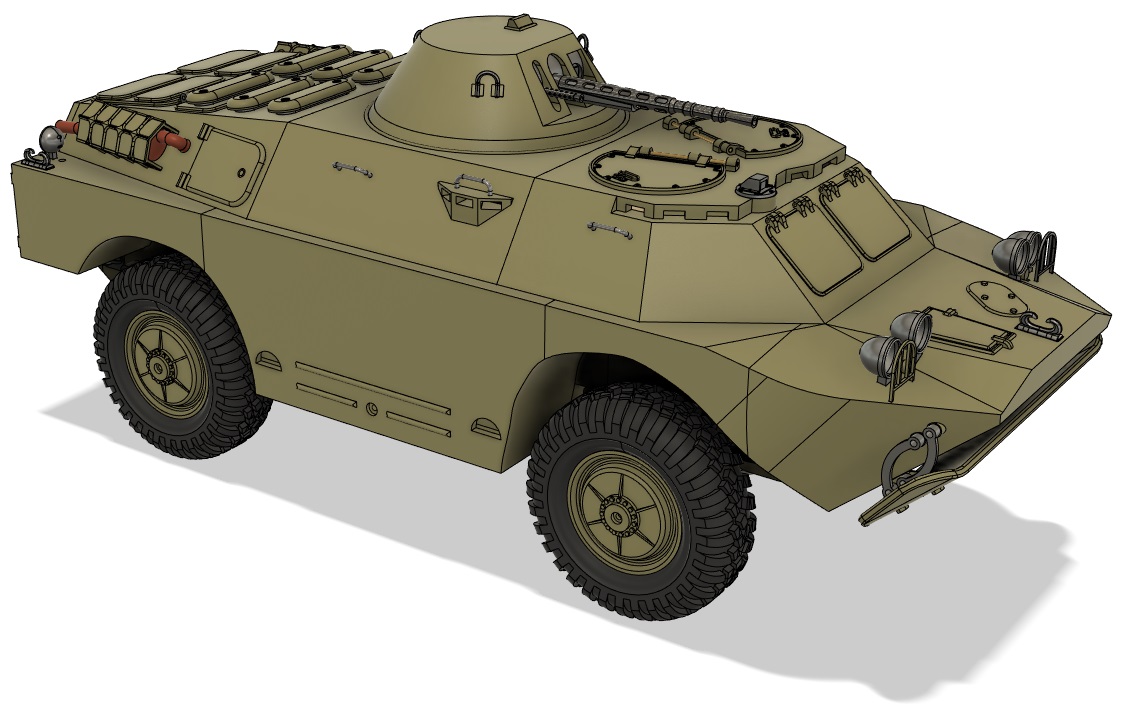

1. Reconnaissance version with 14,5mm KPVT heavy machine gun

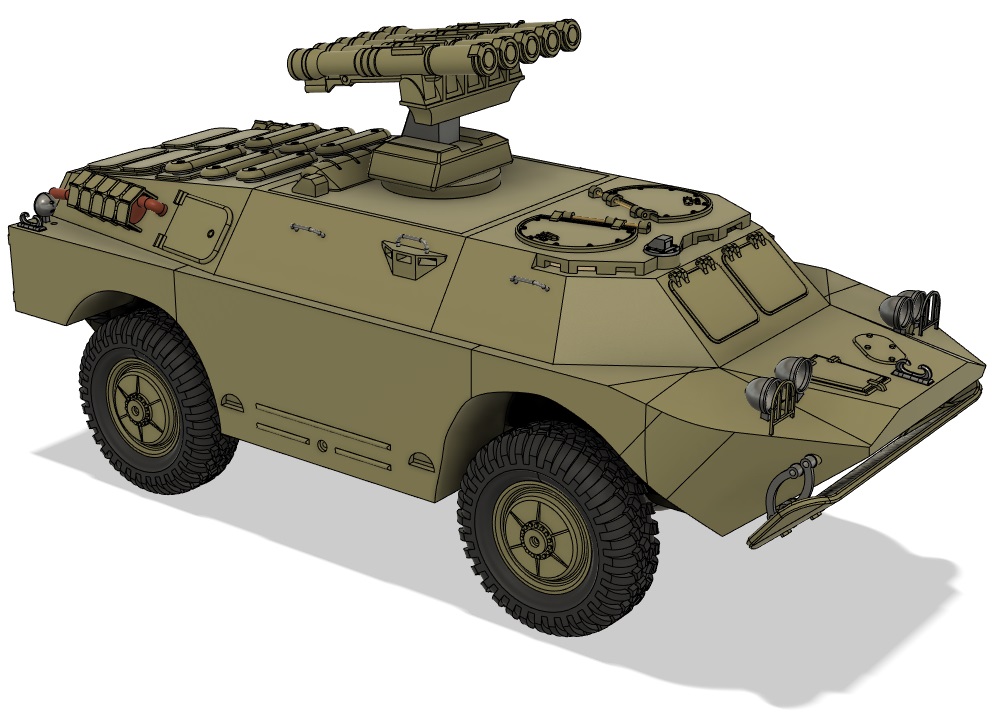

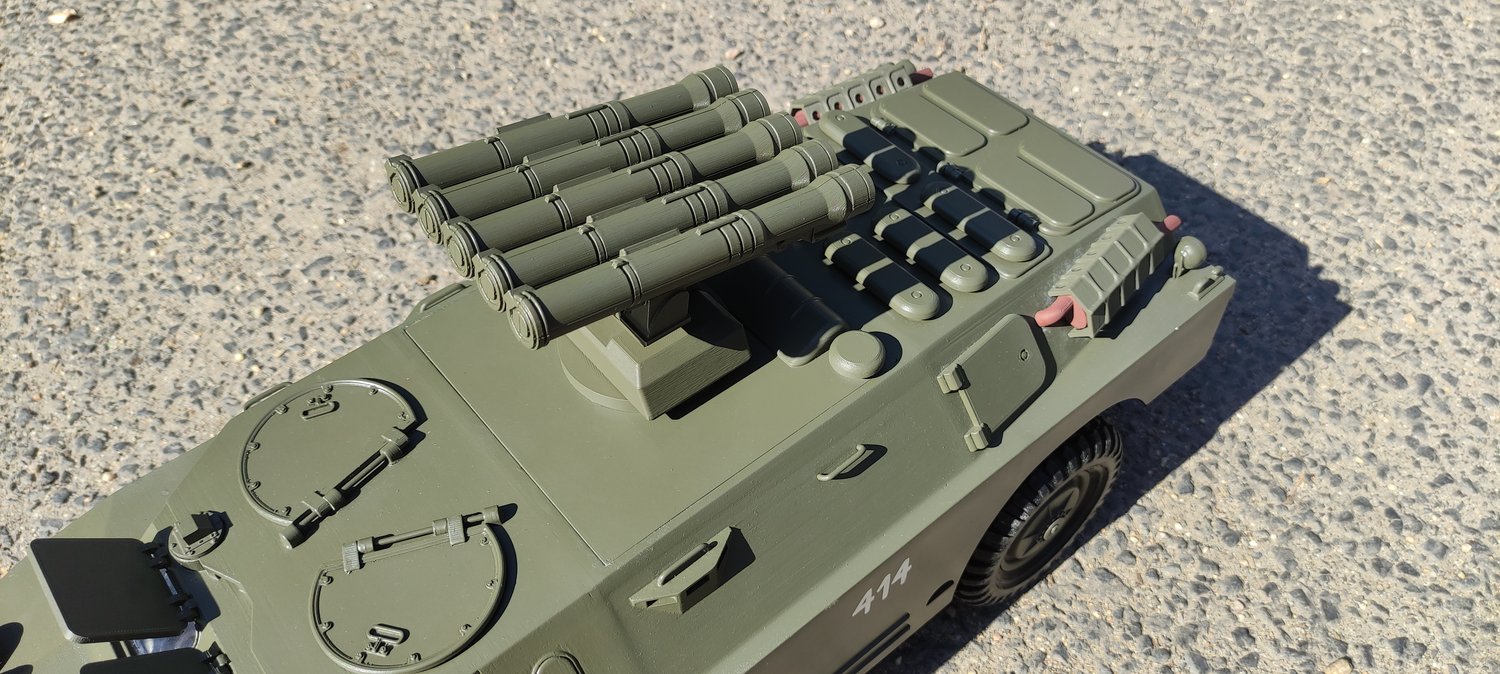

2. 9P148 Konkurs ATGM launcher (Anti-Tank-Guided-Missile)
The BRDM-2 (Boyevaya Razvedyvatelnaya Dozornaya Mashina, Боевая Разведывательная Дозорная Машина, literally "Combat Reconnaissance/Patrol Vehicle") is an amphibious armoured scout car designed and developed in the Soviet Union. It was also known under the designations BTR-40PB, BTR-40P-2 and GAZ 41-08. This vehicle, like many other Soviet designs, has been exported extensively and is in use in at least 38 countries. It was intended to replace the older BRDM-1, and has improved amphibious capabilities and better armament compared to its predecessor.
Lenght: 575mm
Width: 234mm
Height:
Recon - 244mm
ATGM – 300 mm
Weight: approx 4 kg
Detailed, full of functions and easy to build (print).
All wheel drive.
Leaf spring suspension.
Servo driven turret traverse.
Retractable auxiliary wheels.
Functional propeller and sealed hull means that vehicle is ambhipious.
Functional Headlights, taillights and blinkers.
Printed tires.
Two optional transmission designs:
Geared transmission - slow, noisy, but high torque
New upgraded transmission - Higher top speed, enough torque and less noisy - recommended
Easy access to the transmission for maintenance.
The vehicle can be equipped with various electronics and functions.
It is up to you how much you would like to use all the options.
The model contains everything what you need to print and build the tank:
STL files for every printed part, assembly guide and shopping list (screws, motors, servos....)
Shopping list:
Screw M3x8 – 8x
Screw M3x10 – 124x
Screw M3x15 – 4x
Screw M3x20 – 16x
Screw M3x40 – 4x
Screw M3x60 – 2x
Nut M3 – 20x
Socket set screw M3x6 – 1x
Motor 540 – 1x
Rubber band – 5x
Bearing 10x15x4 – 26x
Bearing 15x21x4 – 4x
Steel rod 2mm (e.g welding rod for autogenous welding) approx 60cm, alternatively you can use pieces of filament
Standard servo 360° (for turret traverse) - 1x
Standard servo 180° (for auxiliary wheels control) – 2x
Standard servo 180° (for steering) - 1x
Glue
Magnet 10x2mm – 8x (optional)
For belt transmission:
• Screw M3x6 – 2x
• Screw M3x10 – 18x
• Nut M3 – 2x
• Socket set screw M3x6 – 2x
• Motor 540 – 1x
• Bearing 10x15x4 – 8x
• Belt 60 XL 6,35mm – 3x
• Belt 70 XL 6,35mm – 1x
• Glue
Whole model is designed for FDM printers only.
If you have any questions please do not hesitate to send me an email.
I have spent a lot of time developing this model.
Please, dont share this STLs, it will affect my next releases.
Thank you very much.
3D printing settings
Recommended bed size: 220x200mm
Nozzle size: 0,4mm
Layer height: 0,2mm
Infill: 40%
Perimeters: 3
Material: PLA
Material for gears and shafts: PC/PET-G
Material for tires: TPU/TPE
Most parts do not require supports. Parts that do need them have „support“ in the name.
